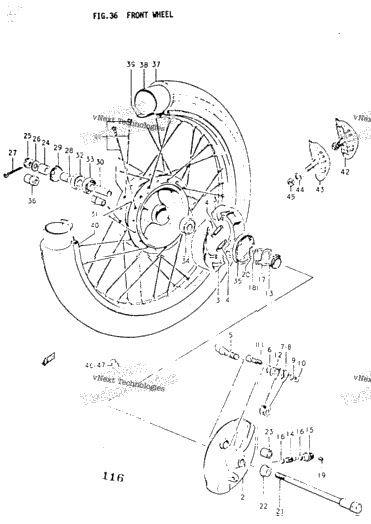

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 54110-28001 | DRUM, HUB K | ||
| 1 | 54110-07001 | DRUM, HUB L,M,A | 1 |
| 54110-16501 | DRUM, HUB B; BLACK | ||
| 54210-28002 | PANEL, HUB K | ||
| 54210-28400 | PANEL, HUB L,M,A | ||
| 54210-28620 | PANEL, HUB B; BLACK | ||
| 2 | 54410-01004 | SHOE, BRAKE K; TO 54410-01005 | 2 |
| 54410-07001 | SHOE, BRAKE L; TO 54410-07002 | ||
| 54410-07002 | SHOE, BRAKE M,A,B | ||
| 2 | 09443-07001 | SPRING, BRAKE SHOE | 2 |
| 1 | 54441-01001 | CAM, BRAKE K | 1 |
| 54441-07001 | CAM, BRAKE L,M | ||
| 1 | 54441-01002 | CAM, BRAKE A,B; FROM 54441-01001 | 1 |
| 1 | 09280-12001 | DUST SEAL | 1 |
| 1 | 54451-03002 | LEVER, BRAKE CAM K; FROM 54451-03602 | 1 |
| 54451-28400 | LEVER, BRAKE CAM L,M,A,B | ||
| 1 | 08322-21068 | WASHER | 1 |
| 1 | 08311-11068 | NUT | 1 |
| 1 | 09100-06050 | BOLT, CAM LEVER | 1 |
| 1 | 09160-12011 | WASHER (12.5X20X1.0) | 1 |
| 54611-28000 | GEAR, SPEEDOMETER K,L,M,A; NT:29 TO 54611-28001 | ||
| 54611-28001 | GEAR, SPEEDOMETER B; NT:28 | ||
| 54621-28000 | PINION, SPEEDOMETER | ||
| 1 | 54632-01001 | BUSHING, PINION OUTER | 1 |
| 2 | 09160-05001 | WASHER, PINION THRUST | 2 |
| 1 | 54661-07000 | DRIVER, GEAR | 1 |
| 1 | 09160-18002 | WASHER, GEAR THRUST | 1 |
| 1 | 09134-03101 | SCREW, PINION BUSHING | 1 |
| 08331-11189 | CIRCLIP | ||
| 54711-28000 | AXLE, FRONT K | ||
| 54711-28401 | AXLE, FRONT L | ||
| 54711-28402 | AXLE, FRONT L; TO 54711-28303 | ||
| 54711-28303 | AXLE, FRONT M,A,B | ||
| 54751-25500 | SPACER, FRONT AXLE LH L; WITH 54711-28402 | ||
| 09180-12062 | SPACER M,A,B; WITH 54711-28303 | ||
| 09180-12061 | SPACER L,M,A,B | ||
| 1 | 08314-31128 | NUT L,M,A,B | 1 |
| 1 | 08322-21128 | WASHER LM,A,B | 1 |
| 1 | 04111-30308 | COTTER PIN L,M,A,B | 1 |
| 1 | 09180-12040 | SPACER, FRONT AXLE RH | 1 |
| 54892-28000 | COVER, DUST SEAL K; TO 54892-28001 | ||
| 54892-28400 | COVER, DUST SEAL L,M,A,B | ||
| 1 | 09180-12041 | SPACER, BEARING K | 1 |
| 54730-07000 | SPACER, BEARING L,M,A,B | ||
| 1 | 09284-18002 | OIL SEAL, DRUM K | 1 |
| 1 | 09284-18001 | OIL SEAL, DRUM L,M,A,B | 1 |
| 1 | 08113-62010 | BEARING K | 1 |
| 1 | 08113-63010 | BEARING L,M,A,B | 1 |
| 1 | 08143-62010 | BEARING K | 1 |
| 1 | 08143-63010 | BEARING L,M,A,B | 1 |
| 1 | 09285-43001 | OIL SEAL, PANEL K | 1 |
| 1 | 09285-48001 | OIL SEAL, PANEL L,M,A,B | 1 |
| 54721-36000 | NUT, FRONT AXLE M | ||
| 55100-28211 | TIRE, FRONT K; 2.75-19 KNOBBY | ||
| 55100-25600 | TIRE, FRONT L,M,A,B; 2.75-19 SEML-KNOBBY | ||
| 55200-29010 | TUBE, INNER K; 2.75-19 | ||
| 55200-28030 | TUBE, INNER L,M,A | ||
| 1 | 55261-29010 | PROTECTOR, INNER TUBE K,B | 1 |
| 55261-28030 | PROTECTOR, INNER TUBE L,M,A | ||
| 55311-29600 | RIM, FRONT WHEEL K | ||
| 55311-29601 | RIM, FRONT WHEEL L | ||
| 55311-17022 | RIM, FRONT WHEEL M,A,B | ||
| 55300-28806 | SPOKE SET, FRONT K | ||
| 55300-28840 | SPOKE SET, FRONT L,M,A,B | ||
| 1 | 65270-28600 | STOPPER, BEAD K,L | 1 |
| 65270-28610 | STOPPER, BEAD L | ||
| 1 | 08322-11088 | WASHER, BEAD STOPPER K,L | 1 |
| 1 | 08312-11088 | NUT K,L | 1 |
| 1 | 55412-11000 | BALANCER, WHEEL K,L; 30G | 1 |
| 55411-30000 | BALANCER, WHEEL K,L; 50G |
