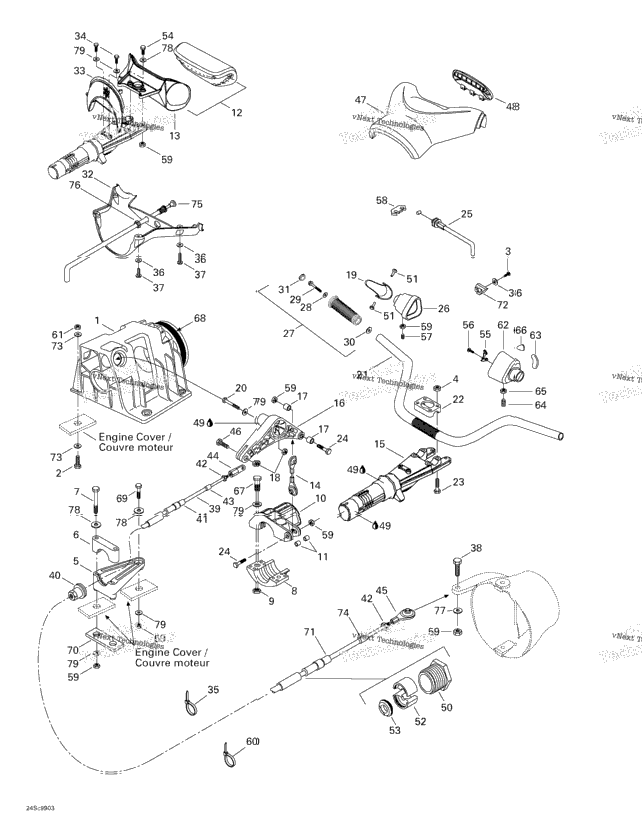

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000617 | STEERING SUPPORT | ||
| 4 | 207083560 | Hex. Screw M8 X 35 | 4 |
| 4 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 277000737 | Cable Support | ||
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207067060 | Hex. Screw M6 X 70 | 2 |
| 277000519 | Arm Thrust Includes 8 - 9. | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 277000620 | Steering Arm Stem Includes 10 - 11. | ||
| 291000176 | SPACER | ||
| 277000627 | Handle Bar Pad Includes 12 - 13. | ||
| 277000687 | Handle Bar Pad Support | ||
| 1 | 277000829 | BALL JOINT | 1 |
| 277000562400 | Steering Stem | ||
| 1 | 277000772 | L-LEVER Includes 16 - 18. | 1 |
| 277000214 | Throttle Handle | ||
| 1 | 207162060 | Hex. Forming Screw M6 X 20 | 1 |
| 277000824 | Handle Bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 2 | 207064060 | Hex. Screw M6 X 40 | 2 |
| 277000831 | Throttle Cable Ass'y | ||
| 277000285 | Throttle Handle Housing | ||
| 1 | 295500691 | HANDLE GRIP KIT, BLACK Includes 27 - 31. | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277000625 | LOWER STEERING COVER | 1 |
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 277000773 | Steering Cable Includes 39 - 43. | ||
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 277000846 | Large Boot | 1 |
| 2 | 204170078 | Hex. Jam Nut | 2 |
| 1 | 277000849 | Small Boot | 1 |
| 1 | 277000774 | Joint | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 1 |
| 277000833 | Upper Steering Cover Includes 47 - 48. | ||
| 277000823 | Steering Plate | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 277000784 | Steering Cable Lock | 1 |
| 2 | 277000381 | PIN | 2 |
| 2 | 277000783 | Half-Ring | 2 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 277000845 | Retainer Plate | ||
| 1 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 1 |
| 206361260 | SCREW-SET SOCKET DIN.914A2 | ||
| 1 | 277000279 | TAB LOCK | 1 |
| 9 | 232561600 | Hex. Elastic Stop Nut M6 | 9 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 277000498 | LH HANDLE HOUSING Includes 62 - 66. | ||
| 1 | 277000497 | VTS KNOB | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000306 | Switch Knob | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 2 | 293450153 | INSERT | 2 |
| 8 | 293050001 | Flat Washer M8.5 x 18 | 8 |
| 1 | 270000341 | CHOKE CABLE Includes 75 - 76. | 1 |
| 211100030 | NUT-HEXAGONAL HI-LEX | ||
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 5 | 234061600 | Stainless, Flat Washer M6 | 5 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
