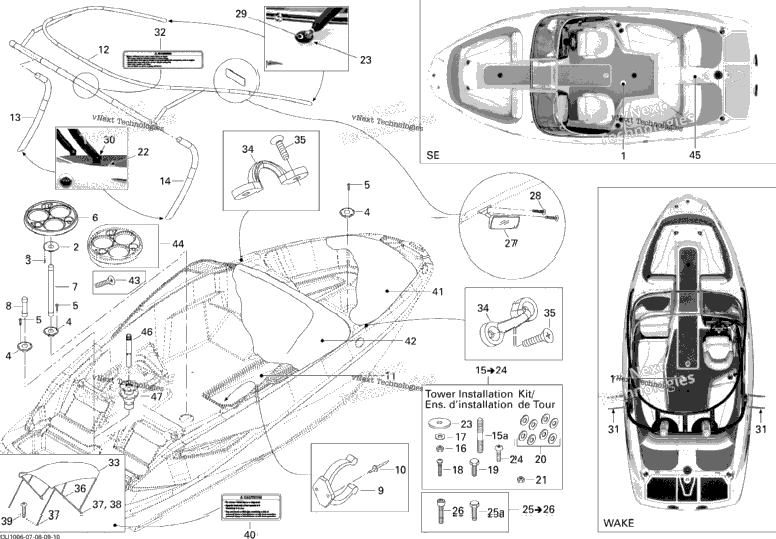

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269800022 | COCKPIT CARPET | ||
| 1 | 204071315 | TABLE MOUNT | 1 |
| 6 | 209951960 | TAPPING SCREW M5 X 19 | 6 |
| 3 | 204071209 | TABLE BASE | 3 |
| 12 | 209943260 | Phillips Tapping Screw M4.2 X 32 Without Tower | 12 |
| 18 | 209943260 | Phillips Tapping Screw M4.2 X 32 With Tower | 18 |
| 1 | 204073212 | COCKPIT TABLE | 1 |
| 1 | 204070634 | TABLE POST, LARGE | 1 |
| 269800027 | TABLE POST, SMALL | ||
| 204070342 | POLE CLIP | ||
| 293150029 | RIVET_POP 5/32 | ||
| 264000058 | Ski Locker Carpet | ||
| 204950198 | Tower Upper | ||
| 269800026 | Tower Lower Ass'y, Port | ||
| 269800061 | TOWER LOWER ASS'Y, STARBOARD | ||
| XXXX | Not Available As Spare Part - Hardware Tower Kit Includes 15 to 24 | ||
| 204100152 | Threaded Stud | ||
| 4 | 204100131 | LOCK NUT 1/2? | 4 |
| 4 | 204100132 | FENDER WASHER | 4 |
| 2 | 204100242 | SCREW-BUTTON HD.CAP 1/2-13 X 1.5 SS | 2 |
| 8 | 204100014 | HEX. SCREW 1/4-20 X 2-1/2 | 8 |
| 8 | 204100139 | WASHER-FENDER/S.S. | 8 |
| 8 | 212000005 | NUT-STOP ELASTIC MS-17830 | 8 |
| 2 | 204130273 | REAR GASKET | 2 |
| 204130272 | Front Gasket | ||
| 10 | 204100240 | PHILLIP HEAD SCREW 8-18 X 1 | 10 |
| XXXX | Not Available As Spare Part - Hardware Tower Kit Includes 25 to 26 | ||
| 4 | 204100135 | HEX. SCREW 3/8 X 1-1/2 | 4 |
| 2 | 204100252 | HEX. SOCKET SCREW FLATE HEAD 3/8-16 | 2 |
| 204071420 | SKI MIRROR With Tower | ||
| 2 | 204100129 | PHILLIPS SCREW 10-32 X 1? With Tower | 2 |
| 204950143 | FRONT TOWER SUPPORT, ANODIZED | ||
| 269800127 | Rear Tower Support, Anodized | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 204902068 | WARNING LABEL, TOWER | 1 |
| 204950228 | BIMINI TOP ASS'Y, TAUPE Ocean Salt Model With Tower | ||
| 204950229 | BIMINI TOP ASS'Y, CHARCOAL GRAY Black Model With Tower | ||
| 269800198 | Bimini Top Ass'y Ocean Salt Model Without Tower | ||
| 269800199 | BIMINI TOP ASS'Y Black Model Without Tower | ||
| 204071845 | STRAP EYE | ||
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 4 |
| 4 | 204950033 | BIMINI POST | 4 |
| 4 | 204950034 | BIMINI BASE | 4 |
| 4 | 204950031 | BIMINI SPACER With Tower | 4 |
| 204100230 | TAP SCREW OVAL PHILLIP 10 X 1-1/4'' Without Tower | ||
| 204901331 | CAUTION LABEL, BIMINI TOP | ||
| 269800024 | COVER BOW Ocean Salt Model | ||
| 280000482 | Cover Bow Black Model And Wake | ||
| 269800025 | COCKPIT COVER Ocean Salt Model Without Tower | ||
| 269800034 | COCKPIT COVER Black Model Without Tower | ||
| 280000483 | Cockpit Cover Black Model With Tower | ||
| 269800036 | COCKPIT COVER Ocean Salt Model With Tower | ||
| 2 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 2 |
| 1 | 269800191 | BAG-TABLE/OVAL | 1 |
| 2 | 269800126 | REAR COVER HELM | 2 |
| 269800135 | SKI PYLON Without Tower | ||
| 269800192 | SKI PYLON INSTALL KIT Without Tower |
