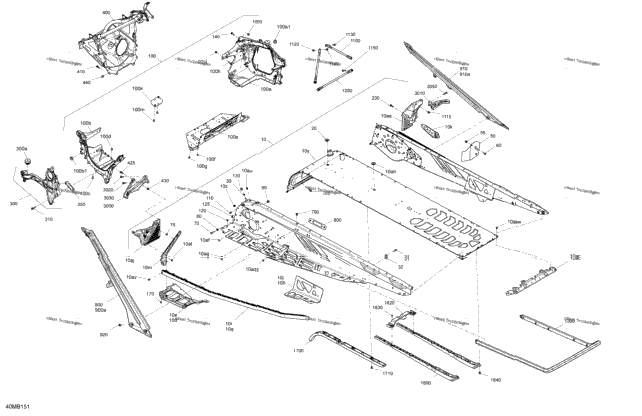

Список запчастей

№	Артикул	Название	Кол-во
	415130443	Deep Black, Tunnel Chassis Module 137 No Air Compressor
2	250001131	Torx Truss PT K40 x 12	2
1	415130444	Scandi Blue, Tunnel Chassis Module 137 Air Compressor	1
	415130486	Deep Black, Chassis Tunnel Module 137 Air Compressor
1	518330738	Deep Black, RH Footrest Reinforcement	1
1	518331523	Deep Black, LH Footrest Reinforcement	1
1	518329627	RH Suspension Bracket	1
1	518329628	LH Suspension Bracket	1
1	518331253	Stirrup Reinforcement	1
1	518332924	Deep Black, LH Chassis Reinforcement	1
1	518329648	RH Roller	1
1	518328452	LH Roller	1
1	518332552	Radiator Tunnel 137	1
3	250100199	Insert Half Hex Body M6 x 1.0	3
1	518328990	Rear Cap	1
1	518330691	RH Footrest	1
3	293730047	Black, Dart 8 mm	3
2	293730060	Black, Dart 10 mm	2
1	293730052	Black, Plug	1
1	518331559	LH Foot Protector	1
1	293150203	Rivet Avibulb 3/16	1
8	293150096	Hemlock Rivet, 6.5 mm	8
14	293150119	Hemlock Rivet, 6.5 mm	14
6	293150174	Hemlock Rivet, 6.4 mm	6
2	293150147	Hemlock Rivet	2
2	234081410	Flat Washer 8 mm	2
10	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip	10
10	224061201	Flat Washer	10
1	518331823	Heat Shield	1
2	293450275	Insert	2
2	250000717	Torx Head Screw M6 X 16	2
2	250000942	Hex Screw M8 X 30	2
1	293150096	Hemlock Rivet, 6.5 mm	1
2	233281414	Hex. Flange Elastic Nut M8	2
1	518332686	Engine Chassis Module Ass'y Includes 100 to 100m	1
1	518332689	RH Member Ass'y Includes 100a to 100a1	1
1	505072690	Leg Bushing	1
1	518332688	LH Member Ass'y Includes 100b to 100b1	1
3	293150148	Rivet Magna-Grip 6,4 X 50,8	3
3	293150149	Collar Huck Magna-Grip 6.4	3
1	518332715	Bottom Plate	1
14	293150203	Rivet Avibulb 3/16	14
1	293450268	Insert M5 X 0.8	1
2	250000945	Hex. Flange Screw M6 X 25	2
2	233261414	Hex. Flange Elastic Nut M6 x 1.0	2
1	518329454	Oil Plate	1
2	250000767	Torx Truss Screw M6 X 12	2
3	293150147	Hemlock Rivet	3
2	293150174	Hemlock Rivet, 6.4 mm	2
2	293150120	Hemlock Rivet 6.5 mm	2
2	207662046	Hex. Flange Screw M6 X 20	2
2	233261416	Elastic Flange Nut M6 X 1.0	2
1	293450267	Insert M5 - 0.8	1
4	207661646	Hex. Flange Screw M6 X 16	4
1	207562056	Hex. Flange Screw M6 X 20	1
1	518333691	LH Side Member Ass'y Includes 300 to 300a	1
2	512060295	Rubber Mount	2
4	250001060	Screw-Pan HD.Torx M8X30	4
1	518331740	LH Front Chassis Reinforcement	1
1	518332098	Suspension Chassis Module Ass'y	1
2	250001051	Screw-Forming Hex.HD.FL. M6 X 16	2
1	207663546	Hex. Flange Screw M6 x 35	1
1	233261416	Elastic Flange Nut M6 X 1.0	1
6	293150147	Hemlock Rivet	6
2	293450278	Insert	2
2	518329480	Member Fixation Plate	2
	518333266	Deep Black,LH Rear Diagonal Cross Member Includes 900 to 900a
	518333264	LH Rear Diagonal Cross Member
	518333267	Deep Black,RH Rear Diagonal Cross Member Includes 910 to 910a
	518333265	RH Rear Diagonal Cross Member
4	250000887	Pan Head Torx Screw M8 X 12	4
2	518329370	Upper Colomn Support	2
1	293450275	Insert	1
7	233261416	Elastic Flange Nut M6 X 1.0	7
1	207662556	Hex. Flange Screw M6 X 25	1
6	207662046	Hex. Flange Screw M6 X 20	6
1	518329755	Center Column Support	1
1	518330033	Rear Bumper	1
1	518329982	Front Protector	1
3	293150108	Pop Rivet 3/16”	3
2	518329979	Rear Protector	2
1	518333936	Central Protective Structure	1
2	293150108	Pop Rivet 3/16”	2
1	518330358	Black Toe-hold	1
1	518329134	Toe Hold	1
1	250000793	Hex. Flange Screw M6 X 25	1
1	207562054	Hex. Flange Screw S.Grip M6 X 20	1
2	250001124	Hex Screw Forming M6 x 25	2
