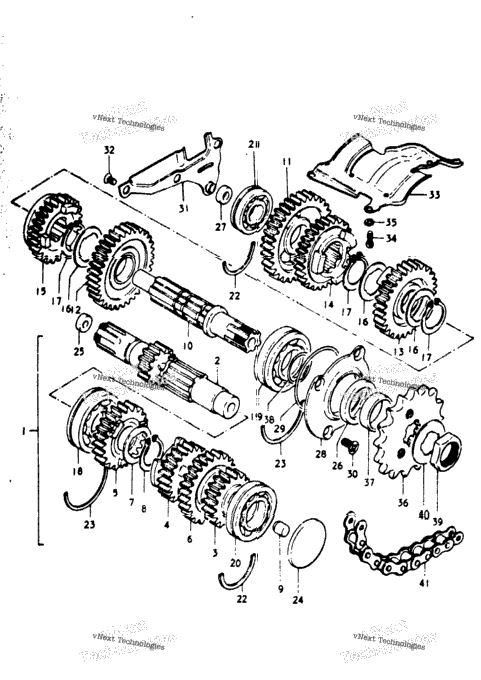

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 09284-10002 | OIL SEAL K,L,M,A,B | 1 |
| 24120-31000 | COUNTERSHAFT ASSY K,L,M,A; TO 24120-31001 ~E.NO. 76849 | ||
| 24120-31001 | COUNTERSHAFT ASSY A; ~F.NO. 66399 TO 24120-31002 SEENOTE 1 | ||
| 24120-31002 | COUNTERSHAFT ASSY A; TO 24120-31003 | ||
| 24120-31003 | COUNTERSHAFT ASSY A,B; Includes Item(s) 2 - 9 | ||
| 24121-31000 | COUNTERSHAFT K,L,M,A,B; NT:13 | ||
| 24221-31000 | GEAR, 2ND DRIVE K,L,M,A; NT:19 ~F.NO. 66399 | ||
| 24221-37000 | GEAR, 2ND DRIVE A,B; NT:18 | ||
| 24231-31000 | GEAR, 3RD DRIVE K,L,M,A; NT:22 ~F.NO. 66399 | ||
| 24231-37000 | GEAR, 3RD DRIVE A,B; NT:21 | ||
| 24240-31000 | GEAR, 4TH DRIVE K,L,M,A; NT:24 | ||
| 24240-31001 | GEAR, 4TH DRIVE A,B; NT:24 | ||
| 24250-31000 | GEAR, 5TH DRIVE K,L,M,A; NT:26 TO 24250-31001 | ||
| 24250-31001 | GEAR, 5TH DRIVE A,B; NT:26 | ||
| 1 | 09167-28001 | WASHER K,L,M,A,B | 1 |
| 1 | 08331-11289 | CIRCLIP K,L,M,A,B; FROM 09380-28002 | 1 |
| 09243-09001 | PLUG K,L,M,A,B | ||
| 24131-31000 | DRIVE SHAFT K,L,M,A,B | ||
| 24310-31821 | GEAR SET, 1ST DRIVEN K,L,M,A,B; NT:37 SEE NOTE 2 | ||
| 24320-31822 | GEAR SET, 2ND DRIVEN K,L,M,A; NT:33 SEE NOTE 2 ~F.NO.66399 | ||
| 24300-37810 | GEAR SET, 2ND DRIVEN A,B; NT:32 SEE NOTE 2 | ||
| 24330-31000 | GEAR, 3RD DRIVEN K,L,M,A; NT:30 ~F.NO.66399 | ||
| 24330-37000 | GEAR, 3RD DRIVEN A,B; NT:29 | ||
| 24341-31000 | GEAR, 4TH DRIVEN K,L,M,A,B; NT:27 | ||
| 24351-31000 | GEAR, 5TH DRIVEN K,L; NT:24 TO 24351-31001 | ||
| 24351-31200 | GEAR, 5TH DRIVEN M,A; NT:25 TO 24351-31201 | ||
| 24351-31201 | GEAR, 5TH DRIVEN A,B; NT:25 | ||
| 3 | 09167-28001 | WASHER K,L,M,A,B | 3 |
| 3 | 08331-11289 | CIRCLIP K,L,M,A,B; FROM 09380-28002 | 3 |
| 09262-25024 | BEARING K,L,M,A,B | ||
| 08163-63050 | BEARING K,L,M,A,B | ||
| 1 | 08163-62040 | BEARING K,L,M,A,B | 1 |
| 09262-20036 | BEARING K,L,M,A,B | ||
| 09390-47003 | C RING K,L,M,AB | ||
| 09390-62001 | C RING K,L,M,AB | ||
| 09242-47001 | PLUG K,L,M,A,B | ||
| 1 | 09283-32003 | OIL SEAL K,L,M,A,B | 1 |
| 09285-08003 | OIL SEAL K,L,M,A,B | ||
| 24751-31000 | RETAINFR, OIL SEAL K,L,M,A,B | ||
| 1 | 09280-63001 | O RING K,L,M,A; ID:62.8, D.:1.9 | 1 |
| 09280-64002 | O RING B; ID:64.5, D.:2.0 | ||
| 4 | 02122-06128 | SCREW K,L,M,A,B | 4 |
| 24870-31000 | PLATER, OIL RESERVOIR K,L,M,A,B | ||
| 3 | 02122-06128 | SCREW K,L,M,A,B | 3 |
| 24881-31000 | PLATE, OIL GUIDE K,L; TO 24881-31001 | ||
| 24881-31001 | PLATE, OIL GUIDE M,A,B | ||
| 3 | 02112-05168 | SCREW K,L,M,A,B | 3 |
| 3 | 08321-21058 | LOCK WASHER K,L,M,A,B | 3 |
| 27511-33600 | SPROCKET, ENGINE K,L,B; NT:15 OPT *F.NO.67347~; NT:15 OPT *F.NO.67347~; NT:15 OPT *F.NO.67347~ | ||
| 27511-34000 | SPROCKET, ENGINE ,L; NT:16 OPT ~F.NO.67346M,A; NT:16 OPT ~F.NO.67346 | ||
| 09180-25033 | SPACER K,L,M,A,B; 25x32x10.7 | ||
| 1 | 09280-25001 | O RING K,L,M,A,B | 1 |
| 1 | 09140-24004 | NUT K,L,M,A,B | 1 |
| 1 | 09167-25007 | WASHER K,L,M,A,B | 1 |
| 27600-31015 | CHAIN ASSY, DRIVE K,L; DID 50HDSS, 108l FROM 27600-31013 | ||
| 27600-31014 | CHAIN ASSY, DRIVE M,A; DID 50HDSS, 106l, ~F.NO.67346.TO 27600-31017 | ||
| 27600-31017 | CHAIN ASSY, DRIVE M,A; DID 50HDSS, 106l | ||
| 27600-31016 | CHAIN ASSY, DRIVE A; DID 50HDSS, 104l TO 27600-31018 | ||
| 27600-31018 | CHAIN ASSY, DRIVE B; DID 50HDSS, 104l |
