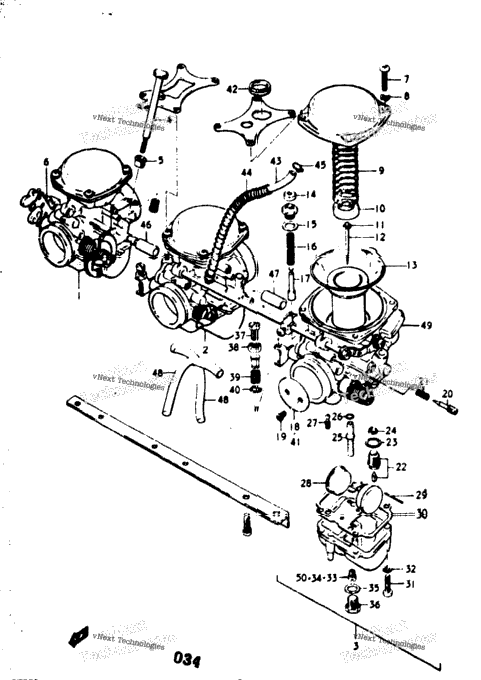

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13200-31210 | CARBURETOR ASSY L; TO 13200-31211 INCLUDED REF.NO.1~3 | ||
| 13200-31621 | CARBURETOR ASSY M,A; TO 3200-31622 | ||
| 13200-31622 | CARBURETOR ASSY B; Includes Item(s) 1 - 49 | ||
| 13201-31210 | CARBURETOR, RH L; TO 10201-31211 | ||
| 13201-31621 | CARBURETOR, RH M,A,B | ||
| 13202-31210 | CARBURETOR, MIDDLE L; TO 13202-31211 | ||
| 13202-31621 | CARBURETOR, MIDDLE M,A,B | ||
| 13203-31210 | CARBURETOR, LH L; TO 13203-31211 | ||
| 13203-31621 | CARBURETOR, LH L,M,A,B | ||
| 13267-31210 | ADJUSTER, THROTTLE L,M,A,B | ||
| 13276-31210 | BUSH L,M,A,B | ||
| 13436-31210 | GASKET L,M,A,B | ||
| 12 | 02111-05207 | SCREW L,M,A,B | 12 |
| 12 | 08321-21058 | LOCK WASHER L,M,A,B | 12 |
| 13503-31210 | SPRING L,M,A,B | ||
| 13398-31210 | PLATE, NEEDLE L,M,A,B | ||
| 3 | 13394-31210 | E RING L,M,A,B | 3 |
| 13383-31210 | NEEDLE, JET L,M,A,B; 4DN18-3 | ||
| 13500-31210 | DIAPHRAGM ASSY L,M,A,B | ||
| 3 | 13682-31210 | .CAP, STARTER VALVE L,M,A,B | 3 |
| 13419-31210 | GASKET, STARTER VALVE L,M,A,B | ||
| 3 | 13417-08210 | SPRING, STARTER VALVE L | 3 |
| 13417-20010 | SPRING, STARTER VALVE M,A,B; TO 13417-18630 | ||
| 3 | 13417-18630 | SPRING, STARTER VALVE M,A,B | 3 |
| 13411-31210 | PLUNGER, STERTER VALVE L,M,A,B | ||
| 13551-31210 | VALVE, THROTTLE L,M; #120 | ||
| 6 | 02111-03087 | SCREW L,M,A,B | 6 |
| 13269-31210 | SCREW, PILOT AIR L,M,A,B | ||
| 3 | 13268-01010 | SPRING L,M,A,B | 3 |
| 3 | 13372-31210 | VALVE, NEEDLE L,M,A,B | 3 |
| 3 | 13392-16600 | WASHER, NEEDLE VALVE L,M,A,B | 3 |
| 3 | 13376-65010 | FILTER L,M,A,B | 3 |
| 09494-00141 | JET, NEEDLE L,M,A,B; Z-0 | ||
| 3 | 13295-31210 | O RING L,M,A,B | 3 |
| 09492-47005 | JET, PILOT L; #47.5 | ||
| 09492-45012 | JET, PILOT M,A,B; #45 | ||
| 13252-31210 | FLOAT L,M,A,B | ||
| 13254-11010 | PIN, FLOAT L,M,A | ||
| 3 | 13254-35013 | PIN, FLOAT B | 3 |
| 13251-31210 | GASKET, FLOAT CHAMBER L,M,A,B | ||
| 12 | 02111-04127 | SCREW L,M,A,B | 12 |
| 12 | 08321-21048 | LOCK WASHER L,M,A,B | 12 |
| 09491-21011 | JET, MAIN L,M,A,B; #107.5 | ||
| 2 | 09491-22010 | JET, REVERSE MAIN L,M,A,B; #110 | 2 |
| 3 | 13249-31210 | WASHER L,M,A,B | 3 |
| 13247-31210 | SCREW, PLUG L,M,A,B | ||
| 13267-31600 | SCREW, THROTTLE STOP L,M,A,B | ||
| 13607-31610 | NUT L,M,A; ~F.NO.66007 | ||
| 3 | 13268-31210 | SPRING, THROTTLE STOP SCREW L,M,AB | 3 |
| 13617-31210 | E RING L,M,AB | ||
| 13551-31600 | VALVE, THROTTLE A,B; #110 | ||
| 13625-33110 | CAP L,M,A,B | ||
| 1 | 13683-31610 | HOSE L,M,A,B | 1 |
| 13689-31210 | SPRING L | ||
| 2 | 13671-33600 | CLIP L,M,A | 2 |
| 13683-31600 | HOSE L,M,A,B | ||
| 13683-31210 | HOSE L,M,A,B | ||
| 13686-31210 | HOSE L,M,A,B | ||
| 13413-31210 | LEVER, STARTER L,M,A,B | ||
| 3 | 09491-20010 | JET, MAIN L,M,A,B; #100; OPT | 3 |
| 3 | 09491-21012 | JET, MAIN L,M,A,B; #105; OPT | 3 |
| 09491-22012 | JET, MAIN L,M,A,B; #112.5; OPT |
