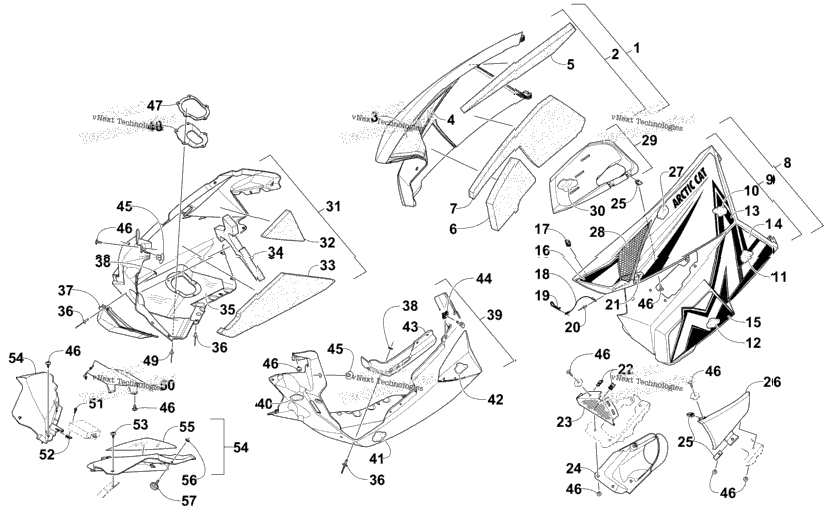

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4718-594 | Panel, Side - w/Decals - Right - Green (inc. 2-7, 13-16, and 18-21) | ||
| 1 | 3718-858 | Panel, Side - w/o Decals - Right - Green (inc. 3-7, and 18-21) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 0617-634 | Foam, Side Panel - Lower Rear - Right | 1 |
| 4718-595 | Panel, Side - w/Decals- Left - Green (inc. 9-17, and 21) | ||
| 1 | 4718-577 | Panel, Side - w/o Decals - Left - Green (inc. 10-17, and 21) | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 2621-490 | Decal, Side Panel - Upper Rear - Right - Green | 1 |
| 1 | 2621-491 | Decal, Side Panel - Upper Rear - Left - Green | 1 |
| 1 | 2621-498 | Decal, Side Panel - Lower Rear - Right - Green | 1 |
| 1 | 2621-499 | Decal, Side Panel - Lower Rear - Left - Green | 1 |
| 1 | 2621-496 | Decal, Side Panel - Lower Forward - Right - Green | 1 |
| 1 | 2621-497 | Decal, Side Panel - Lower Forward - Left - Green | 1 |
| 1 | 2621-494 | Decal, Side Panel - Upper Front - Right - Green | 1 |
| 1 | 2621-495 | Decal, Side Panel - Upper Front - Left - Green | 1 |
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 1623-052 | Clip, U-Nut | 2 |
| 1 | 6606-925 | Screen, Intake | 1 |
| 1 | 2602-794 | Duct, Intake - Inner | 1 |
| 4 | 1623-030 | Clip, U-Nut | 4 |
| 1 | 2602-801 | Duct, Intake - Outer - Green | 1 |
| 1 | 0619-206 | Foil, Protective | 1 |
| 1 | 5706-531 | Screen, Intake | 1 |
| 1 | 1702-369 | Duct, Belt Cooling (inc. 30) | 1 |
| 1 | 6606-694 | Foil, Protective | 1 |
| 1 | 3718-422 | Plate, Skid - w/o Decals - Right - Black (inc. 32-38) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 2612-850 | Foil, Protective | 1 |
| 26 | 8061-708 | Rivet | 26 |
| 1 | 2612-754 | Deflector, Heat | 1 |
| 8 | 0123-802 | Washer | 8 |
| 1 | 3718-789 | Plate, Skid - Left w/Foam - Black (inc. 36, 38, and 40-43) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 2 | 2623-005 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 2612-796 | Plate, Exhaust Outlet | 1 |
| 1 | 2612-795 | Seal, Exhaust Outlet | 1 |
| 6 | 8061-710 | Rivet | 6 |
| 1 | 6606-295 | Shield, Heat - EMC | 1 |
| 2 | 8408-620 | Screw, Cap | 2 |
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 6606-342 | Fascia, Front - Right - Black | 1 |
| 1 | 3718-303 | Fascia, Front - Left - Black (inc. 55) | 1 |
| 6606-405 | Foil, Protective | ||
| 1 | 2623-001 | RETAINER,PUSHNUT - 3/16" STUD | 1 |
| 1 | 1623-999 | Screw, Thumb | 1 |
