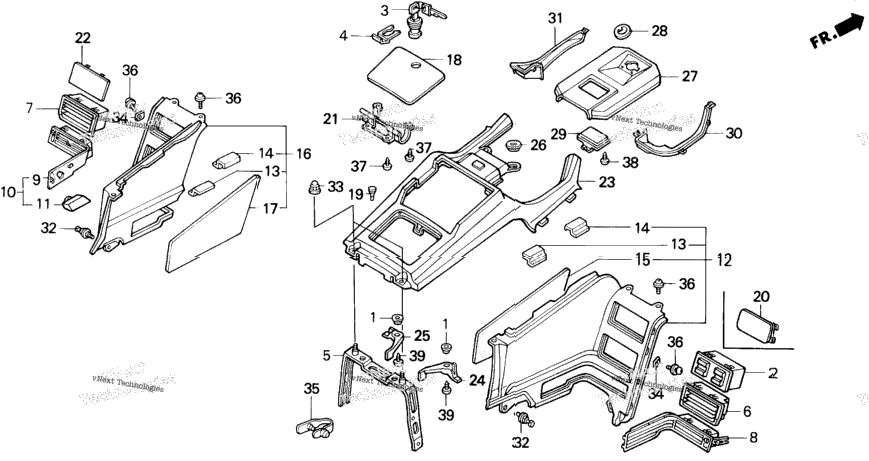

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 33712-GC2-000 | COLLAR A, TAILLIGHT | 2 |
| 1 | 35800-MN5-010 | SWITCH ASSY., AIR PRESSURE CONTROL | 1 |
| 1 | 37220-439-007 | LOCK, FILLER LID | 1 |
| 1 | 37222-463-000 | SPRING, LOCK KEY SETTING | 1 |
| 50250-MN5-000 | BRACKET, SHELTER SETTING | ||
| 1 | 64445-MN5-000 | OUTLET ASSY., R. FRESH AIR | 1 |
| 1 | 64455-MN5-000 | OUTLET ASSY., L. FRESH AIR | 1 |
| 1 | 64470-MN5-000 | OUTLET ASSY., R. HOT AIR | 1 |
| 1 | 64475-MN5-000 | OUTLET ASSY., L. HOT AIR | 1 |
| 83110-MN5-000ZQ | SHELTER, R. SIDE *NH326P* (PEARL GLACIER WHITE) | ||
| 83210-MAM-A70ZD | SHELTER SET, R. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83210-MAM-A70ZE | SHELTER SET, R. SIDE *NH253M* (TYPE8) (OCEAN GRAY METALLIC) | ||
| 83210-MAM-D80ZE | SHELTER SET, R. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83210-MAM-L70ZE | SHELTER SET, R. SIDE (TYPE7) (WL) | ||
| 83210-MAM-770ZE | SHELTER SET, R. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83210-MAM-770ZF | SHELTER SET, R. SIDE *RP151P* (TYPE8) (WL) (PEARL ROYAL MAGENTA) | ||
| 83210-MAM-770ZG | SHELTER SET, R. SIDE *G156P* (TYPE9) (WL) (PEARL SIERRA GREEN) | ||
| 83112-MN5-310 | CUSHION, TOP SHELTER | ||
| 2 | 83113-MN5-300 | RUBBER B, TOP SHELTER | 2 |
| 83115-MN5-300 | MAT, R. SIDE SHELTER | ||
| 83120-MN5-000ZQ | SHELTER, L. SIDE *NH326P* (PEARL GLACIER WHITE) | ||
| 83220-MAM-A70ZD | SHELTER SET, L. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83220-MAM-A70ZE | SHELTER SET, L. SIDE *NH253M* (TYPE8) (WL) (OCEAN GRAY METALLIC) | ||
| 83220-MAM-D80ZE | SHELTER SET, L. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83220-MAM-L70ZE | SHELTER SET, L. SIDE (TYPE7) (WL) | ||
| 83220-MAM-770ZE | SHELTER SET, L. SIDE *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) | ||
| 83220-MAM-770ZF | SHELTER SET, L. SIDE *RP151P* (TYPE8) (WL) (PEARL ROYAL MAGENTA) | ||
| 83220-MAM-770ZG | SHELTER SET, L. SIDE *G156P* (TYPE9) (WL) (PEARL SIERRA GREEN) | ||
| 83125-MN5-300 | MAT, L. SIDE SHELTER | ||
| 83131-MAF-000ZB | LID, SHELTER *NH159L* (TYPE1) (COSMOPOLITAN GRAY) | ||
| 83131-MAF-000ZD | LID, SHELTER *R200* (TYPE7) (TUSCANY RED) | ||
| 4 | 83132-MN5-000 | RUBBER, SHELTER LID | 4 |
| 83140-MN5-000 | HINGE, SHELTER LID | ||
| 83150-MAF-000ZA | SHELTER, TOP *NH159L* (TYPE1) (COSMOPOLITAN GRAY) | ||
| 83150-MAF-000ZE | SHELTER, TOP *R200* (TYPE7) (TUSCANY RED) | ||
| 83151-MAM-A80 | LOCK, R. TOP SHELTER | ||
| 83151-MN5-000 | LOCK, R. TOP SHELTER | ||
| 83152-MAM-A80 | LOCK, L. TOP SHELTER | ||
| 83152-MN5-000 | LOCK, L. TOP SHELTER | ||
| 2 | 83156-MN5-000 | GROMMET, TOP SHELTER | 2 |
| 83160-MN5-000ZA | COVER, COMBINATION SWITCH *NH159L* (TYPE1) (COSMOPOLITAN GRAY) | ||
| 83160-MN5-000ZG | COVER, COMBINATION SWITCH *R200* (TYPE7) (TUSCANY RED) | ||
| 1 | 83161-MN5-000ZA | GROMMET, COMBINATION SWITCH *NH159L* (TYPE1) (COSMOPOLITAN GRAY) | 1 |
| 83161-MN5-000ZH | GROMMET, COMBINATION SWITCH *R200* (TYPE7) (TUSCANY RED) | ||
| 83162-MAM-790 | EMBLEM, COMBINATION SWITCH COVER | ||
| 1 | 83165-MN5-000 | COVER, R. FR. TOP SHELTER | 1 |
| 1 | 83166-MN5-000 | COVER, L. FR. TOP SHELTER | 1 |
| 2 | 90101-MN5-003 | BOLT, SIDE SHELTER SETTING | 2 |
| 2 | 90201-428-900 | NUT, CAP (6MM) | 2 |
| 4 | 90305-MN5-000 | NUT, PLATE (5MM) | 4 |
| 1 | 90676-HC0-000 | BAND, WIRE | 1 |
| 6 | 93894-05014-08 | SCREW-WASHER (5X14) | 6 |
| 4 | 93903-24380 | SCREW, TAPPING (4X12) | 4 |
| 2 | 93903-25280 | SCREW, TAPPING (5X12) | 2 |
| 2 | 93903-25480 | SCREW, TAPPING (5X20) | 2 |
