Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

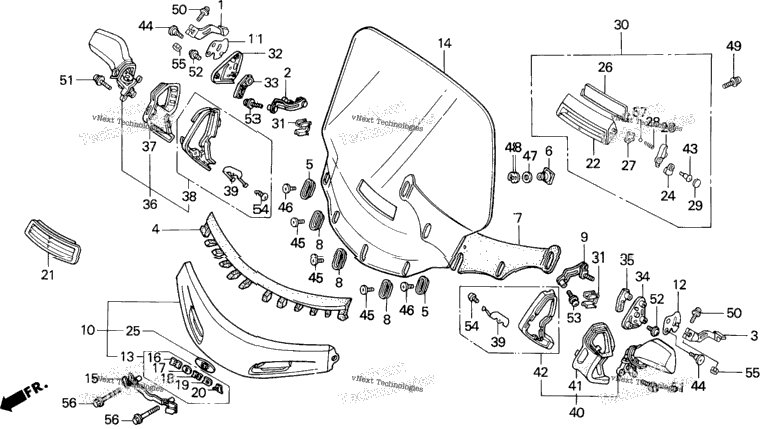

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 64107-MT8-000 | LEVER, R. | ||
| 64108-MAM-000 | PLATE, R. TENSION | ||
| 1 | 64109-MT8-000 | LEVER, L. | 1 |
| 64111-MAM-000 | SEAL, WINDSCREEN | ||
| 64113-MN5-000 | PLATE B, WINDSCREEN SETTING | ||
| 64114-MG9-770 | NUT, WINDSCREEN SETTING | ||
| 1 | 64115-MAM-000 | RUBBER, SCREEN | 1 |
| 3 | 64116-MN5-000 | PLATE, WINDSCREEN SETTING | 3 |
| 64118-MAM-000 | PLATE, L. TENSION | ||
| 64120-MAM-000 | GARNISH SET, SCREEN (WL) | ||
| 64123-MT8-000 | PLATE, R. LEVER SIDE | ||
| 64124-MT8-000 | PLATE, L. LEVER SIDE | ||
| 1 | 64125-MAM-000 | EMBLEM, FR. (HONDA) | 1 |
| 1 | 64130-MAM-770 | WINDSCREEN | 1 |
| 1 | 64130-MAM-771 | WINDSCREEN | 1 |
| 1 | 64135-MAM-000 | STAY, GARNISH SETTING | 1 |
| 64142-MAM-000 | EMBLEM, FR. (H) | ||
| 64143-MT8-770 | EMBLEM, FR. (O) | ||
| 64144-MT8-770 | EMBLEM, FR. (N) | ||
| 64145-MT8-770 | EMBLEM, FR. (D) | ||
| 64146-MAM-000 | EMBLEM, FR. (A) | ||
| 64150-MT8-770 | GRILLE, CENTER FRESH AIR | ||
| 64155-MY4-770 | VISOR, CENTER FRESH AIR | ||
| 64157-MT8-770 | LEVER, CENTER FRESH AIR | ||
| 64158-MT8-770 | COVER, CENTER FRESH AIR LEVER | ||
| 64160-MAM-000 | EMBLEM, FR. GARNISH | ||
| 64160-MT8-770 | LID, CENTER FRESH AIR | ||
| 64166-MT8-770 | PLATE, LEVER CLICK | ||
| 1 | 64167-MT8-770 | SPRING, LEVER CLICK | 1 |
| 1 | 64168-MT8-770 | PLATE, COVER | 1 |
| 64170-MY4-770 | VISOR ASSY., FRESH AIR | ||
| 2 | 64219-MN5-000 | CLIP, SCREEN GUIDE | 2 |
| 64531-MN5-000 | BASE, R. MIRROR | ||
| 64532-MT8-000 | PLATE, R. PIVOT | ||
| 64631-MN5-000 | BASE, L. MIRROR | ||
| 64632-MT8-000 | PLATE, L. PIVOT | ||
| 88110-MT8-000ZJ | MIRROR ASSY., R. BACK *R176C* (CANDY SPECTRA RED) | ||
| 88110-MT8-000ZM | MIRROR ASSY., R. BACK *NH326P* (PEARL GLACIER WHITE) | ||
| 1 | 88110-MT8-000ZT | MIRROR ASSY., R. BACK *G156P* (PEARL SIERRA GREEN) | 1 |
| 88110-MT8-000ZU | MIRROR ASSY., R. BACK *RP151P* (PEARL ROYAL MAGENTA) | ||
| 1 | 88113-MN5-003 | BOOT, R. | 1 |
| 88114-MN5-003YA | BASE ASSY., R. BACK MIRROR *G156P* (PEARL SIERRA GREEN) | ||
| 88114-MN5-003YB | BASE ASSY., R. BACK MIRROR *RP151P* (PEARL ROYAL MAGENTA) | ||
| 1 | 88114-MN5-003ZP | BASE ASSY., R. MIRROR *R176C* (CANDY SPECTRA RED) | 1 |
| 1 | 88114-MN5-003ZT | BASE ASSY., R. MIRROR *NH326P* (PEARL GLACIER WHITE) | 1 |
| 2 | 88119-MN5-000 | PLATE, SET | 2 |
| 88120-MT8-000ZJ | MIRROR ASSY., L. *R176C* (CANDY SPECTRA RED) | ||
| 88120-MT8-000ZM | MIRROR ASSY., L. *NH326P* (PEARL GLACIER WHITE) | ||
| 88120-MT8-000ZR | MIRROR ASSY., L. *G156P* (PEARL SIERRA GREEN) | ||
| 88120-MT8-000ZS | MIRROR ASSY., L. *RP151P* (PEARL ROYAL MAGENTA) | ||
| 88123-MN5-003 | BOOT, L. | ||
| 1 | 88124-MN5-003ZP | BASE ASSY., L. MIRROR *R176C* (CANDY SPECTRA RED) | 1 |
| 1 | 88124-MN5-003ZT | BASE ASSY., L. MIRROR *NH326P* (PEARL GLACIER WHITE) | 1 |
| 88124-MN5-003ZX | BASE ASSY., L. MIRROR *G156P* (PEARL SIERRA GREEN) | ||
| 88124-MN5-003ZY | BASE ASSY., L. MIRROR *RP151P* (PEARL ROYAL MAGENTA) | ||
| 1 | 90101-GE0-000 | SCREW, HINGE PATCH | 1 |
| 2 | 90104-KT8-710 | SCREW, SPECIAL (6X8) | 2 |
| 3 | 90107-MN5-000 | SCREW, SCREEN SETTING | 3 |
| 2 | 90107-MT2-000 | SCREW, SCREEN SETTING (6X12) | 2 |
| 5 | 90501-MT2-000 | WASHER | 5 |
| 5 | 90601-473-003 | E-RING (8MM) | 5 |
| 2 | 93891-04012-07 | SCREW-WASHER (4X12) | 2 |
| 93891-05022-07 | SCREW-WASHER (5X22) | ||
| 6 | 93891-05028-08 | SCREW-WASHER (5X28) | 6 |
| 2 | 93893-05012-08 | SCREW-WASHER (5X12) | 2 |
| 2 | 93893-05012-18 | SCREW-WASHER (5X12) | 2 |
| 2 | 93894-05012-08 | SCREW-WASHER (5X12) | 2 |
| 2 | 93894-05012-18 | SCREW-WASHER (5X12) | 2 |
| 2 | 93901-24280 | SCREW, TAPPING (4X10) | 2 |
| 2 | 94001-05080-0S | NUT, HEX. (5MM) | 2 |
| 2 | 95801-06055-08 | BOLT, FLANGE (6X55) | 2 |
| 1 | 96211-06000 | BALL, STEEL (#6) (3/16) | 1 |
