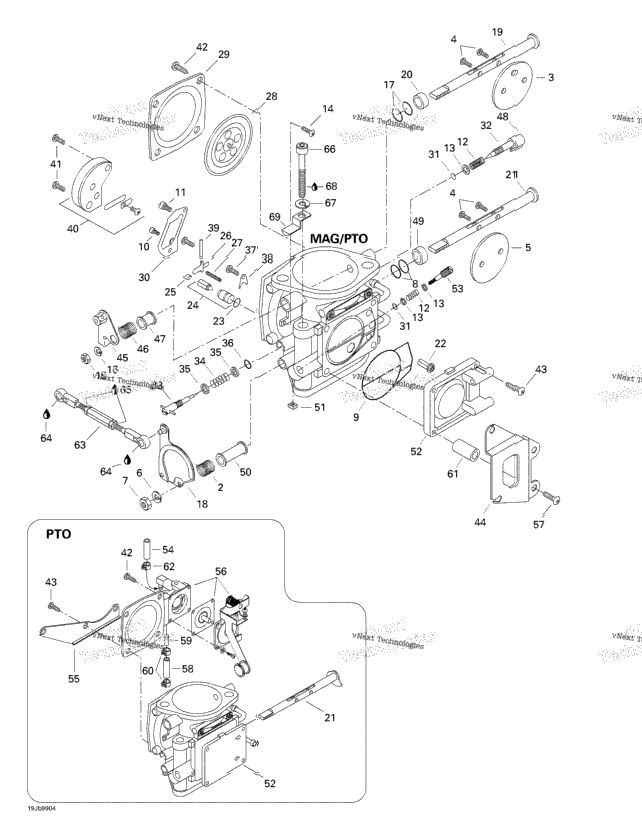

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204250069 | Carburetor BN40-38-50 (PTO Side) Includes 1 - 61. SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 204250068 | Carburetor BN40-38-49 (MAG Side) SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500191 | Spring SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500097 | Spring SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| XXXX | Not Available As Spare Part - Choke Valve | ||
| 270500156 | SCREW | ||
| XXXX | Not Available As Spare Part - Throttle Valve | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500012 | Nut | ||
| 270500222 | Sealing Ring | ||
| 270500104 | O-Ring | ||
| 270500425 | Pilot Jet 67.5 | ||
| 1 | 270500276 | MAIN JET 145.0 SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | 1 |
| 270500209 | MAIN JET 142.5 SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 2 | 270500091 | SPRING | 2 |
| 270500136 | Washer | ||
| 270500228 | Screw | ||
| 1 | 270500229 | NUT | 1 |
| 270500230 | Spring Washer | ||
| 2 | 270500234 | SEALING RING | 2 |
| 270500301 | Throttle Lever Ass'y SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500300 | Throttle Lever Ass'y SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| XXXX | Not Available As Spare Part - Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (PTO) SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (MAG) SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500241 | Needle Valve 1.5 | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500313 | Spring | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 1 | 270500133 | COVER SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | 1 |
| 1 | 270500131 | GASKET | 1 |
| 2 | 270500144 | O-RING | 2 |
| 270500113 | Adjuster Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 270500123 | SCREW | ||
| 270500312 | Screw SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500243 | Screw SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 2 | 270500238 | SCREW | 2 |
| 270500270 | Bracket SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500271 | Choke lever | ||
| 1 | 270500248 | SPRING | 1 |
| 270500110 | Ring | ||
| 270500154 | Cap | ||
| 1 | 270500309 | RING SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | 1 |
| 270500221 | Ring SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 1 | 270500192 | RING | 1 |
| 270500249 | Nut SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500138 | Pump Cover SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500395 | Cover Ass'y SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500288 | Adjuster Screw SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500398 | Hose Ass'y SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500311 | Bracket SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500426 | Diaphragm Cover SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500303 | Screw SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 270500308 | Hose 90 mm SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 270500348 | RECHARGE JET SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | ||
| 2 | 270500401 | Clip SPEEDSTER (YELLOW/JAUNE) 5678 PTO. | 2 |
| 270500399 | Spacer SPEEDSTER (YELLOW/JAUNE) 5678 MAG. | ||
| 3 | 293650071 | OETIKER CLAMP | 3 |
| 270500256 | Carburator Linkage Rod | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 413703400 | Sealant LOCTITE 222MS | ||
| 205088060 | SOCKET HEAD SCREW M8 X 80 | ||
| 4 | 234180602 | Lock Spring Washer 8 mm, Stainless | 4 |
| 1 | 219704459 | Était Was 293800050 Loctite 577, 250 ml | 1 |
| 204250018 | Hose Support |
