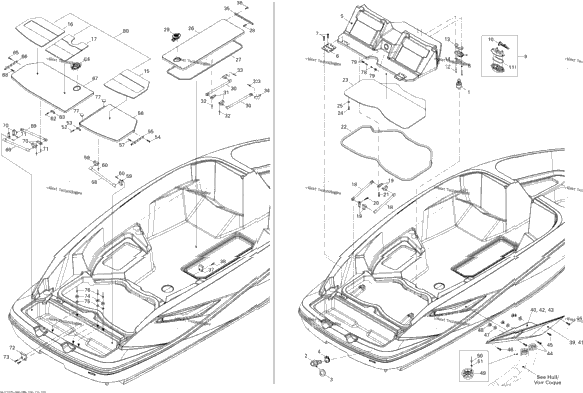

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 204130146 | Latch Stud | 1 |
| 1 | 293710015 | Perko Fitting 3/4" | 1 |
| 1 | 293250254 | GASKET | 1 |
| 2 | 293650016 | Tridon Clamp Europe | 2 |
| 1 | 293650016 | Tridon Clamp North America | 1 |
| 1 | 291003169 | ENGINE COVER | 1 |
| 2 | 291003158 | HINGE | 2 |
| 204100201 | PHILLIPS SCREW 1/4-20 X 1-1/4 | ||
| 204070952 | LATCH PROTECTOR | ||
| 1 | 269700109 | Latch Ass'y | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 1 | 269700017 | Latch Spring | 1 |
| 2 | 207064560 | HEX. SCREW M6 X 45 | 2 |
| 1 | 269700015 | SHIM | 1 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 1 | 291002959 | SWIM PLATFORM CARPET, STARBOARD | 1 |
| 1 | 291002999 | SWIM PLATFORM CARPET, PORT SIDE | 1 |
| 1 | 291002958 | SWIM PLATFORM CARPET, CENTRAL | 1 |
| 4 | 291003009 | GAS SHOCK | 4 |
| 8 | 204073074 | Shock Bracket | 8 |
| 207152560 | HEX. SCREW M5 X 25 | ||
| 202000203 | SCREW-TAPP.TRUSS HD.PH.M4.2X25 | ||
| 204130083 | D-SEAL RUBBER | ||
| 1 | 269700127 | ENGINE HATCH SOUND WALL | 1 |
| 12 | 204100073 | SCREW-PAN HD.#10 X 5/8 SS | 12 |
| 12 | 204100139 | WASHER-FENDER/S.S. | 12 |
| 1 | 291003173 | SKI LID | 1 |
| 293200032 | TRAY SEAL, METER | ||
| 7 | 204100054 | SCREW 8 X 3/4? | 7 |
| 1 | 204073230 | Latch, Stainless Steel | 1 |
| 204071874 | GAS SHOCK | ||
| 2 | 204073074 | Shock Bracket | 2 |
| 4 | 293150088 | Pop Rivet 3/16" | 4 |
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 2 | 204073065 | SHOCK BRACKET | 2 |
| 1 | 291002975 | HINGE | 1 |
| 291003012 | KEEPER | ||
| 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 | ||
| 237000049 | VENT COVER, STARBOARD | ||
| 1 | 237000050 | VENT BASE, STARBOARD | 1 |
| 237000051 | VENT COVER, PORT SIDE | ||
| 237000052 | VENT BASE, PORT SIDE | ||
| 293150065 | RIVET | ||
| 6 | 205464060 | Socket Screw M6 X 40 | 6 |
| 2 | 205462560 | SOCKET SCREW M6 X 25 | 2 |
| 205466060 | HEX. SOCKET SCREW M6 X 60 | ||
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 6 | 232561600 | Hex. Elastic Stop Nut M6 | 6 |
| 204050637 | VENT GRILL 4 | ||
| 4 | 234031600 | Flat Washer 3 mm, Stainless Steel | 4 |
| 2 | 293150036 | RIVET_POP 1/8 X ,750 | 2 |
| 1 | 262000131 | SWIM PLATFORM LID SHIM | 1 |
| 5 | 204100054 | SCREW 8 X 3/4? | 5 |
| 291002976 | HINGE | ||
| 1 | 291003479 | COVER PLATE, STARBOARD | 1 |
| 1 | 204071918 | CYLINDER GAS SHOCK | 1 |
| 4 | 293150036 | RIVET_POP 1/8 X ,750 | 4 |
| 2 | 262000131 | SWIM PLATFORM LID SHIM | 2 |
| 1 | 291003480 | COVER PLATE, PORT SIDE | 1 |
| 4 | 204073074 | Shock Bracket | 4 |
| 8 | 293150088 | Pop Rivet 3/16" | 8 |
| 204070760 | BUMPER PAD | ||
| 6 | 234041600 | Flat Washer 4 mm, Stainless | 6 |
| 6 | 293150036 | RIVET_POP 1/8 X ,750 | 6 |
| 2 | 204070940 | BUMPER | 2 |
| 2 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 2 |
| 2 | 204073221 | Attachment Knob | 2 |
| XXX | Not Available As Spare Parts |
