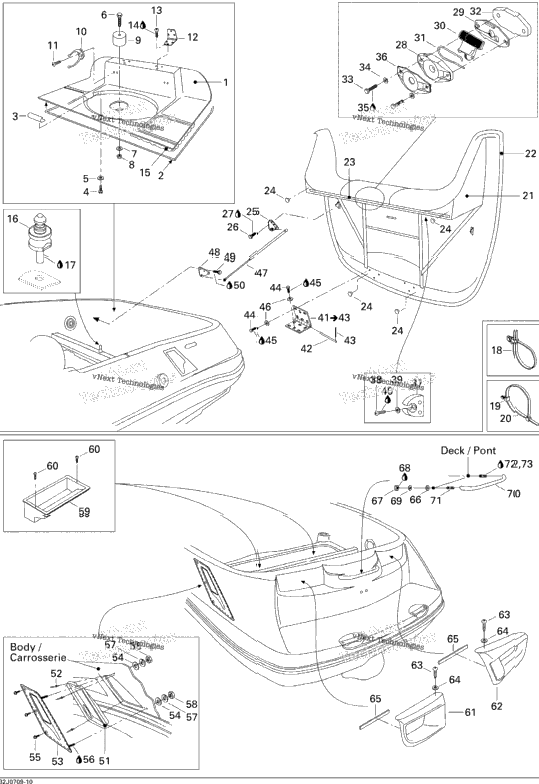

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204050701 | Engine Access Cover | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 291000608 | HANDLE, WHITE | ||
| 2 | 241141660 | Hex. Flange Screw K40 X 16 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 207065060 | Hex. Screw M6 X 50 | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 204072432 | ACCESS COVER PLUG | 1 |
| 204070342 | POLE CLIP | ||
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 2 | 204072386 | HINGE | 2 |
| 6 | 208563060 | OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 | 6 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| XXXX | Not Available As Spare Part - accoustic foam | ||
| 1 | 204130146 | Latch Stud | 1 |
| 1 | 204130098 | TIE RAP WITH DART | 1 |
| 2 | 204130099 | DART, BLACK | 2 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 204072621 | Engine Cover | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 4 | 293720017 | GROMMET | 4 |
| 1 | 204071700 | Shock Bracket | 1 |
| 4 | 207151660 | HEX. SCREW M5 X 16 | 4 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 269700015 | SHIM | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 204070952 | LATCH PROTECTOR | ||
| 291000642 | Pole Support | ||
| 2 | 208642560 | PHILLIPS SCREW M4 X 25 | 2 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 204070127 | HINGE ASS'Y Includes 41 to 43 | ||
| 204070204 | HINGE ROD | ||
| 204070205 | Cotter Pin M2.5 X 12 | ||
| 12 | 207162560 | Hex. Screw M6 X 25 | 12 |
| 12 | 234061600 | Stainless Flat Washer M6 | 12 |
| 204071925 | Gas Shock | ||
| 204071673 | Shock Bracket | ||
| 207152560 | HEX. SCREW M5 X 25 | ||
| 204072315 | Inlet Vent, Port Side | ||
| 204072316 | Inlet Vent, Starboard | ||
| 8 | 293150036 | RIVET_POP 1/8 X ,750 | 8 |
| 204072317 | Vent Cover Ass'y, Port Side | ||
| 204072318 | VENT COVER ASS'Y, STARBOARD | ||
| 4 | 211200019 | FLAT WASHER | 4 |
| 6 | 204100154 | PHILLIPS SCREW 1 | 6 |
| 4 | 211200025 | Lock Washer 1/4” | 4 |
| 211100026 | HEX. NUT 1/4 | ||
| 204072627 | Seat Storage, Starboard | ||
| 204072628 | Seat Storage, Port Side | ||
| 204100095 | SLOTTED BOLT 1/4?-20 X 1? | ||
| 204072102 | Vent Cover Ass'y, Port Side | ||
| 204072104 | Vent Cover Ass'y, Starboard | ||
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 4 |
| 204100057 | FINITION WASHER | ||
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 211100063 | HEX. NUT 3/8-16 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 234101601 | Helicoidal Lock Washer M10 | 2 |
| 1 | 204071122 | GRAB HANDLE | 1 |
| 2 | 204100050 | STUD 3/8?-16 X 2? | 2 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
