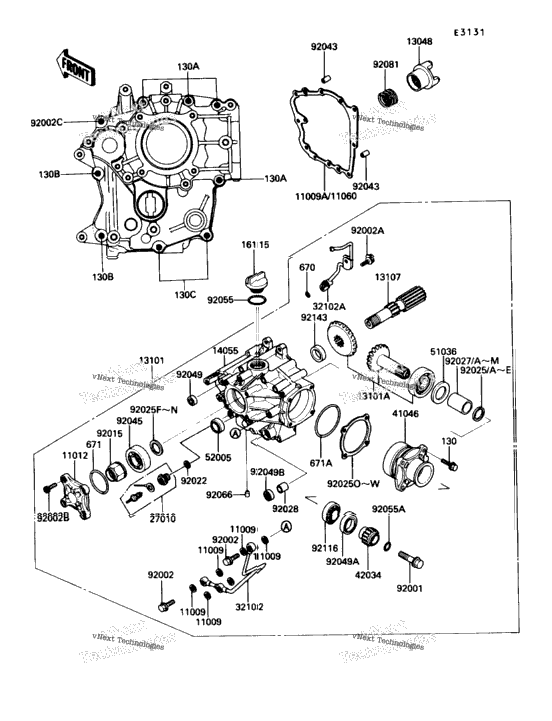

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 11009-1344 | GASKET,8.2X14X1.0 | 6 |
| 1 | 11009-1616 | GASKET,GEAR CASE | 1 |
| 1 | 11012-1489 | CAP,BEARING | 1 |
| 1 | 13048-1074 | CAM-DAMPER | 1 |
| 13101-1089 | GEAR-ASSY,FRONT BEVEL | ||
| 13101-5027 | GEAR SET,FRONT BEVEL | ||
| 13107-1263 | SHAFT,BEVEL,FR | ||
| 14055-1066 | CASE-GEAR,FRONT BEVEL | ||
| 1 | 16115-1009 | CAP-OIL FILLER | 1 |
| 1 | 27010-1210 | SWITCH,OVER DRIVE | 1 |
| 1 | 32033-1940 | PIPE,OUTSIDE | 1 |
| 32033-1941 | PIPE,INSIDE | ||
| 41046-1074 | HOUSING-BEARING | ||
| 1 | 42034-1091 | COUPLING,FR DRIVEN | 1 |
| 1 | 51036-1002 | CUP | 1 |
| 1 | 52005-1057 | GAUGE,OIL LEVEL | 1 |
| 1 | 92001-1169 | BOLT,FLANGED,12X42 | 1 |
| 3 | 92002-1618 | BOLT,BANJO,8X20 | 3 |
| 2 | 92002-1656 | BOLT,6X14 | 2 |
| 4 | 92002-1696 | BOLT,SOCKET,6X25 | 4 |
| 1 | 92002-1779 | BOLT,6X50 | 1 |
| 1 | 92015-1554 | NUT,24MM | 1 |
| 1 | 92022-1812 | WASHER,16XX22X1.0 | 1 |
| 1 | 92025-1072 | SHIM,25.2X29.8X1.70 | 1 |
| 1 | 92025-1073 | SHIM,25.2X29.8X1.72 | 1 |
| 1 | 92025-1074 | SHIM,25.2X29.8X1.74 | 1 |
| 1 | 92025-1075 | SHIM,25.2X29.8X1.76 | 1 |
| 1 | 92025-1076 | SHIM,25.2X29.8X1.78 | 1 |
| 1 | 92025-1077 | SHIM,25.2X29.8X1.80 | 1 |
| 1 | 92025-1688 | SHIM,25.3X36X0.15 | 1 |
| 1 | 92025-1689 | SHIM,25.3X36X0.50 | 1 |
| 1 | 92025-1690 | SHIM,25.3X36X0.60 | 1 |
| 1 | 92025-1691 | SHIM,25.3X36X0.70 | 1 |
| 1 | 92025-1692 | SHIM,25.3X36X0.80 | 1 |
| 1 | 92025-1693 | SHIM,25.3X36X0.90 | 1 |
| 1 | 92025-1694 | SHIM,25.3X36X1.00 | 1 |
| 1 | 92025-1695 | SHIM,25.3X36X1.10 | 1 |
| 1 | 92025-1696 | SHIM,25.3X36X1.20 | 1 |
| 1 | 92025-1724 | SHIM,T=0.10 | 1 |
| 4 | 130P0625 | BOLT-FLANGED,6X25 | 4 |
| 4 | 130Z06100 | BOLT-FLANGED | 4 |
| 130Z0630 | BOLT-FLANGED | ||
| 2 | 130Z0650 | BOLT-FLANGED | 2 |
| 1 | 670B1506 | O RING,6MM | 1 |
| 1 | 671B2565 | O RING,65MM | 1 |
| 1 | 92025-1725 | SHIM,T=0.15 | 1 |
| 1 | 92025-1726 | SHIM,T=0.50 | 1 |
| 92025-1727 | SHIM,T=0.60 | ||
| 92025-1728 | SHIM,T=0.70 | ||
| 92025-1729 | SHIM,T=0.80 | ||
| 92025-1730 | SHIM,T=0.90 | ||
| 92025-1731 | SHIM,T=1.00 | ||
| 92025-1732 | SHIM,T=1.20 | ||
| 1 | 92027-1152 | COLLAR,25.2X29.8X22.8 | 1 |
| 92027-1153 | COLLAR,25.2X29.8X22.9 | ||
| 1 | 92027-1154 | COLLAR,25.2X29.8X23 | 1 |
| 1 | 92027-1155 | COLLAR,25.2X29.8X23.1 | 1 |
| 1 | 92027-1156 | COLLAR,25.2X29.8X23.2 | 1 |
| 92027-1157 | COLLAR,25.2X29.8X23.3 | ||
| 1 | 92027-1158 | COLLAR,25.2X29.8X23.4 | 1 |
| 1 | 92027-1159 | COLLAR,25.2X29.8X23.5 | 1 |
| 1 | 92027-1160 | COLLAR,25.2X29.8X23.6 | 1 |
| 1 | 92027-1161 | COLLAR,25.2X29.8X23.7 | 1 |
| 1 | 92027-1162 | COLLAR,25.2X29.8X23.8 | 1 |
| 1 | 92027-1163 | COLLAR,25.2X29.8X23.9 | 1 |
| 1 | 92027-1164 | COLLAR,25.2X29.8X24 | 1 |
| 1 | 92027-1165 | COLLAR,25.2X29.8X24.1 | 1 |
| 1 | 92028-1251 | BUSHING,13X15X20 | 1 |
| 2 | 92042-007 | PIN,DOWEL,6.3X8X14 | 2 |
| 1 | 92045-1165 | BEARING-BALL,6305C2 | 1 |
| 1 | 92049-1017 | SEAL-OIL,SD-8187 | 1 |
| 1 | 92049-1038 | SEAL-OIL,TC35527 | 1 |
| 1 | 92051-005 | SEAL-OIL,TB13225.5 | 1 |
| 1 | 92055-049 | RING-O,31.5X2.6 | 1 |
| 1 | 92055-1044 | RING-O,ID=18.64 | 1 |
| 1 | 92066-1012 | PLUG,OIL LINE,7.2X8 | 1 |
| 1 | 92081-1859 | SPRING,CAM DAMPER | 1 |
| 1 | 92116-1003 | BEARING-ROLLER,4T30205 | 1 |
| 92027-1968 | COLLAR,25.3X36X10 | ||
| 1 | 671B2575 | 0 RING,75MM | 1 |
