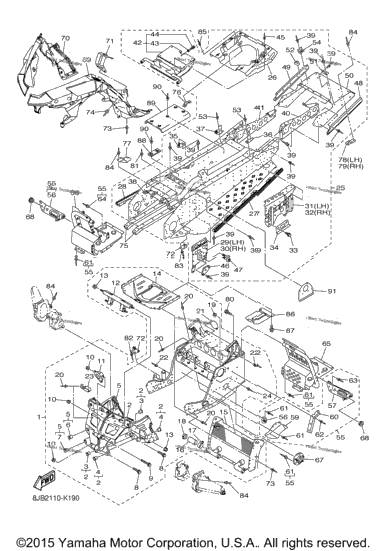

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8JA-21940-00-00 | Front Frame Comp | ||
| 1 | 8FA-W2197-13-00 | . .Bulkhead | 1 |
| 2 | 90381-15001-00 | . . ..Bush, Solid | 2 |
| 2 | 90381-16004-00 | . . ..Bush, Solid | 2 |
| 1 | 8FA-W2198-13-00 | . .Bulkhead 2 | 1 |
| 3 | 95827-08060-00 | . .Bolt, Flange | 3 |
| 1 | 95827-08065-00 | . .Bolt, Flange | 1 |
| 4 | 95607-08200-00 | . Nut, Self-Locking | 4 |
| 1 | 8FA-2128A-01-00 | . .Bracket, Regulator | 1 |
| 1 | 8FG-21947-00-00 | . .Bracket, Steering 1 | 1 |
| 4 | 95607-10200-00 | . .Nut, U Flange | 4 |
| 1 | 8FR-2193A-01-00 | . .Protector | 1 |
| 1 | 8JA-12440-00-00 | . .Heat Exchanger Assy | 1 |
| 1 | 8FA-12551-00-00 | . .Hose 7 | 1 |
| 1 | 90467-28046-00 | . .Clip | 1 |
| 1 | 90450-35001-00 | . .Hose Clamp Assy | 1 |
| 1 | 95607-08200-00 | . Nut, Self-Locking | 1 |
| 43 | 90267-47195-00 | . Rivet, Blind (4.7X16.4 Yellow | 43 |
| 1 | 8ES-2131D-00-00 | . .Plate, Cover | 1 |
| 12 | 90267-48176-00 | . .Rivet, Blind (4.8X17 Yellow) | 12 |
| 1 | 90465-08368-00 | . .Clamp | 1 |
| 16 | 90267-48177-00 | . .Rivet, Blind (4.8X14 Yellow) | 16 |
| 8FL-21950-30-00 | Rear Frame Comp | ||
| 1 | 8FA-W2199-10-00 | . .Reineforcement, Frame Rear 1 | 1 |
| 1 | 8FG-21926-00-00 | . .Reinforcement, Footrest 1 | 1 |
| 1 | 8FG-21936-00-00 | . .Reinforcement, Footrest 2 | 1 |
| 8FU-21943-00-00 | . .Bracket, Main Track 1 | ||
| 1 | 8FU-21953-00-00 | . .Bracket, Main Track 2 | 1 |
| 1 | 8FT-21944-00-00 | . . Bracket, Rear Track Suspens | 1 |
| 1 | 8FT-21954-00-00 | . . Bracket, Rear Track Suspens | 1 |
| 4 | 95814-10020-00 | . .Bolt, Flange | 4 |
| 2 | 8FU-21988-01-00 | . Patch 8 | 2 |
| 2 | 8CR-2194N-00-00 | . .Bracket, Fuel Tank 1 | 2 |
| 1 | 8FA-2194X-00-00 | . .Bracket 1 | 1 |
| 1 | 8FA-2195X-00-00 | . .Bracket 2 | 1 |
| 1 | 8ES-2194H-00-00 | . .Protector, Muffler | 1 |
| 1 | 90267-47195-00 | . Rivet, Blind (4.7X16.4 Yellow QTY: 146 | 1 |
| 1 | 8FT-21963-00-00 | . .Patch 3 | 1 |
| 1 | 8FT-21964-00-00 | . .Patch 4 | 1 |
| 1 | 8FT-1241A-00-00 | . .Heat Exchanger Assy 4 | 1 |
| 1 | 90210-06006-00 | . . Washer, Seal | 1 |
| 95812-06012-00 | . . Bolt, Flange | ||
| 2 | 90267-48095-00 | . Rivet, Blind (4.8X12.6 Silver | 2 |
| 2 | 8FU-21919-00-00 | . .Bracket, Main Track 3 | 2 |
| 2 | 92014-10020-00 | . .Bolt, Button Head | 2 |
| 1 | 8FG-2111J-00-00 | . .Member, Side 1 | 1 |
| 1 | 8FG-2111K-00-00 | . .Member, Side 2 | 1 |
| 1 | 8FT-21916-01-00 | . .Panel, Sub Frame 5 | 1 |
| 1 | 8FG-21988-00-00 | . .Patch 8 | 1 |
| 1 | 8FG-21989-00-00 | . .Patch 9 | 1 |
| 8 | 90267-47197-00 | . Rivet, Blind (4.7X19.5 Silver | 8 |
| 2 | 8FT-2113J-00-00 | . .Bracket, Reflector 1 | 2 |
| 1 | 8JA-W2195-00-00 | Frame Connection Kit | 1 |
| 2 | 8CR-21939-01-00 | . .Bracket, Chain Housing | 2 |
| 1 | 8JA-2196M-00-00 | . .Bracket, 5 | 1 |
| 1 | 8JA-2197M-00-00 | . .Bracket, 6 | 1 |
| 1 | 8FP-2198G-01-00 | . .Cover 2 | 1 |
| 1 | 8FA-21999-00-00 | . .Clamp, Wire Harness | 1 |
| 66 | 90267-47195-00 | . Rivet, Blind (4.7X16.4 Yellow | 66 |
| 4 | 90267-48018-00 | . Rivet, Blind (4.8X18.6 Black) | 4 |
| 10 | 90267-48177-00 | . .Rivet, Blind (4.8X14 Yellow) | 10 |
| 4 | 90267-47186-00 | . .Rivet, Blind (4.7X16.4 Black | 4 |
| 8JA-21960-00-00 | Footrest Comp. 1 | ||
| 1 | 8HG-21970-00-00 | Footrest Comp. 2 | 1 |
| 1 | 8EK-21920-01-00 | Housing, Reinf Sub-Assy (L.H) | 1 |
| 2 | 90480-13567-00 | Grommet | 2 |
| 1 | 8GM-2196A-01-00 | Frame Under 1 | 1 |
| 1 | 8FP-2196E-02-00 | Frame, Under 2 | 1 |
| 1 | 8FP-21972-00-00 | Bracket, Guard Fitting | 1 |
| 6 | 8FA-2196F-00-00 | Bracket 3 | 6 |
| 12 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 12 |
| 3 | 90267-47200-00 | Rivet, Blind (4.7X19.5 Black) | 3 |
| 2 | 8FT-21978-00-00 | Protector, Frame | 2 |
| 2 | 8FT-2197N-00-00 | Bracket 7 | 2 |
| 4 | 8FU-2197N-00-00 | Bracket 7 | 4 |
| 1 | 8FT-2196F-00-00 | Bracket 3 | 1 |
| 1 | 8FT-2196G-00-00 | Bracket 4 | 1 |
| 2 | 95822-08020-00 | Bolt, Flange | 2 |
| 12 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 12 |
| 8 | 90267-48083-00 | Rivet, Blind (4.8X15.2 Silver) | 8 |
| 4 | 90267-48095-00 | Rivet, Blind (4.8X12.6 Silver) | 4 |
| 22 | 90267-47195-00 | Rivet, Blind (4.7X16.4 Yellow) | 22 |
| 4 | 90267-48177-00 | .Rivet, Blind (4.8X14 Yellow) | 4 |
| 1 | 8FR-2197E-00-00 | Protector, Frame Fr | 1 |
| 2 | 92012-06012-00 | Bolt, Button Head | 2 |
| 4 | 8FA-21998-00-00 | Spacer | 4 |
| 1 | 8FG-23892-00-00 | Shield, Heat | 1 |
| 13 | 90267-48059-00 | Rivet, Blind (4.8X12.3) | 13 |
| 1 | 8FR-21962-00-00 | Patch 2 | 1 |
