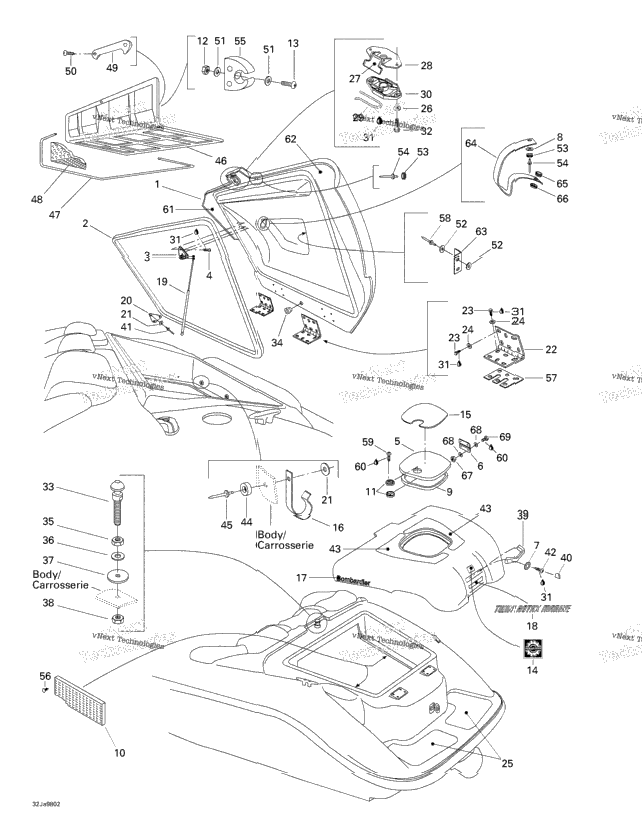

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 295500284 | Engine Cover | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 291000654 | CYLINDER SUPPORT | ||
| 4 | 215051660 | SCREW-HEX.CAP DIN.933A2 | 4 |
| 269700030 | Rope Box Cover | ||
| 2 | 269700031 | Hinge | 2 |
| 2 | 217161600 | Washer Star 6 mm | 2 |
| 1 | 213200018 | Washer 3 mm | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 237500011 | Engine Foam R.H | ||
| 204070120 | LATCH, WHITE | ||
| 2 | 218041600 | Elastic Stop Nut M4 | 2 |
| 2 | 215842560 | Screw M4 x 25 | 2 |
| 219900049 | <<BOMBARDIER>> Logo Decal | ||
| 204070128 | Cover Carpet (Emerald Green) | ||
| 414839700 | Clip Cable | ||
| 204900586 | <<Bombardier>> Decal | ||
| 204900154 | Decal "Twin Rotax Marine" | ||
| 204070199 | Cylinder | ||
| 291000615 | Shock Support | ||
| 8 | 213200004 | Flat Washer 5 mm | 8 |
| 204070127 | HINGE ASS'Y | ||
| 12 | 210000005 | Hex. Screw M6 x 25 | 12 |
| 12 | 213200001 | Flat Washer 6 mm | 12 |
| 204070131 | RH Platform Carpet | ||
| 204070132 | LH Platform Carpet | ||
| 2 | 213200001 | Flat Washer 6 mm | 2 |
| 1 | 269000016 | Latch Lever | 1 |
| 1 | 269700020 | Latch Cover | 1 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 2 | 210000005 | Hex. Screw M6 x 25 | 2 |
| 204700001 | Latch Stud | ||
| 1 | 293720017 | GROMMET | 1 |
| 1 | 218300600 | Hex. Jam Nut M10 | 1 |
| 1 | 217002600 | Flat Washer | 1 |
| 1 | 291000628 | RUBBER WASHER | 1 |
| 1 | 212000003 | Elastic Stop Nut M10 | 1 |
| 204070134 | Grip Handle (Emerald Green) Includes 39 - 40. | ||
| 204070141 | SNAP CAP (EMERALD GREEN) | ||
| 6 | 293150043 | Pop Rivet 3/16" | 6 |
| 211000009 | SCREW-PAN HD.PH.DIN.7985A-A2 | ||
| 204070129 | RH Carpet (Emerald Green) | ||
| 204070130 | LH Carpet (Emerald Green) | ||
| 293830043 | Rubber Stopper | ||
| 2 | 293150013 | Pop Rivet 3/16" | 2 |
| 295500299 | Access Cover | ||
| 237500013 | Luggage Foam | ||
| 291000608 | HANDLE, WHITE | ||
| 2 | 211000033 | Screw K40 x 16 | 2 |
| 4 | 213200010 | Washer 4 mm | 4 |
| 4 | 211200038 | Flat Washer 5 mm | 4 |
| 204000084 | BOTTOM SNAP | ||
| 2 | 293150015 | Pop Rivet 1/8” | 2 |
| 291000642 | Pole Support | ||
| 3 | 293730006 | Black, Dart | 3 |
| 1 | 204070047 | SPACER 3.2 MM | 1 |
| 2 | 293150039 | Pop Rivet 3/16" | 2 |
| 2 | 215851668 | Screw M5 x 16 | 2 |
| 219704457 | Loctite Adhesive 425 20ML | ||
| 204320011 | LH Foam Cover | ||
| 204320012 | RH Foam Cover | ||
| 1 | 204070060 | KEEPER | 1 |
| 1 | 204070106 | NYLON STRAP Includes 64 - 66. | 1 |
| 204000075 | Nylon Strap (Black) (Meter) | ||
| 1 | 204000083 | SNAP BASE | 1 |
| 1 | 204000085 | SNAP COVER | 1 |
| 211100053 | Hex. Nut M3 | ||
| 16 | 211200046 | Flat Washer 3 mm | 16 |
| 8 | 211000179 | SCREW-SOCKET BN.HD.M3 X 10 | 8 |
