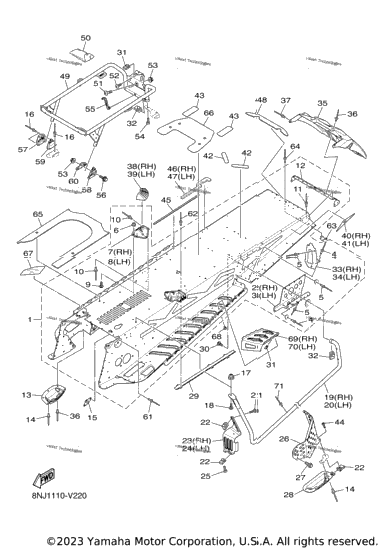

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8MJ-F1950-00-00 | Rear Frame Comp | 1 |
| 8LN-F1954-00-00 | . .Bracket,Rr.Track Suspention | ||
| 8LN-F1944-00-00 | . .Bracket,Rr.Track Suspention | ||
| 1 | 8JP-RA518-00-00 | . Rivet, 9 UN | 1 |
| 20 | 8JP-RA527-00-00 | . .Rivet | 20 |
| 8JP-RA370-00-00 | . Nut, Self-Locking | ||
| 1 | 8JW-F115M-00-00 | . .Brkt., Member 2 | 1 |
| 8JW-F115L-00-00 | . .Bracket, Member 1 | ||
| 8JP-RA241-00-00 | . Screw | ||
| 10 | 8JP-RA528-00-00 | . Rivet | 10 |
| 10 | 8JP-RA514-10-00 | . .Rivet, 5 | 10 |
| 8LN-F1923-00-00 | . .Reineforcement, Frame Rear 1 | ||
| 1 | 8JP-F2147-00-00 | Protector, Chain | 1 |
| 8 | 8JP-RA523-00-00 | Rivet, 14 | 8 |
| 1 | 8JP-F1919-00-00 | Bracket | 1 |
| 10 | 8JP-RA520-00-00 | Rivet, 11 | 10 |
| 2 | 8JM-RA301-00-00 | .Nut, Self-Locking | 2 |
| 8JP-RA272-00-00 | Screw | ||
| 8MJ-F192E-00-00 | Reinforcement, Frame | ||
| 8MJ-F1929-00-00 | Reinforcement, Frame Side | ||
| 4 | 8JP-RA247-00-00 | Screw | 4 |
| 9 | 8JP-RA353-00-00 | Nut, Spring | 9 |
| 1 | 8JW-F1996-00-00 | Reinforcement Sub Frame Fr 2 | 1 |
| 1 | 8JW-F1995-00-00 | Reinforcement Sub Frame Fr 1 | 1 |
| 4 | 8JP-RA251-00-00 | Screw | 4 |
| 1 | 8LN-F5718-00-00 | Protector, Disk Brake | 1 |
| 2 | 8JP-RA179-00-00 | Bolt, Flange | 2 |
| 1 | 8JP-F5717-00-00 | Protector, Disk Brake | 1 |
| 8MG-H2589-00-00 | Protecter, Wire Harness | ||
| 2 | 8JP-RA261-00-00 | Screw | 2 |
| 9 | 8JP-RA351-00-00 | Nut, Spring | 9 |
| 4 | 8JP-RA354-00-00 | Nut, Spring | 4 |
| 1 | 8LN-F1937-00-00 | . .Reinforcement, Rr. Footrest IN 1 | 1 |
| 1 | 8LN-F1927-00-00 | . .Reinforcement, Rr. Footrest IN 1 | 1 |
| 1 | 8LN-K7595-00-00 | Flap | 1 |
| 5 | 8JP-RA524-00-00 | Rivet, 15 | 5 |
| 2 | 8LN-RA525-00-00 | Rivet, 16 | 2 |
| 1 | 8JP-F2556-00-00 | Supt., Fuel Tank 2 | 1 |
| 1 | 8JP-F2555-00-00 | Supt., Fuel Tank 1 | 1 |
| 1 | 8LN-F151F-00-00 | .Label 3 | 1 |
| 1 | 8LN-F151E-00-00 | .Label 2 | 1 |
| 2 | 8LN-F195B-00-00 | Protector, Frame B | 2 |
| 2 | 8LN-F195A-00-00 | Protector, Frame A | 2 |
| 1 | 8JP-RA244-00-00 | Screw | 1 |
| 8LN-K8261-00-00 | Plate, Body Protect 1 | ||
| 8LN-K8262-00-00 | Plate, Body Protect 2 | ||
| 8LN-K8263-00-00 | Plate, Body Prtotect 3 | ||
| 8LN-K8264-00-00 | Plate, Body Protect 4 | ||
| 1 | 8LN-K8341-00-00 | Frame, Luggage Rack Rear | 1 |
| 8JP-F8100-00-00 | Tool Kit | ||
| 8LN-K7519-00-00 | Bolt | ||
| 2 | 8JP-RA280-00-00 | Screw, Tapping | 2 |
| 3 | 8JM-RA322-00-00 | Nut, Flange M6-1.0 | 3 |
| 2 | 8LN-K7537-00-00 | Bolt 1 | 2 |
| 8LN-F15A4-00-00 | End, Strap | ||
| 8JP-RA1B4-10-00 | Bolt, Flange | ||
| 8LN-K7531-00-00 | Bracket, 1 | ||
| 8LN-K7532-00-00 | Bracket, Front (L.H) | ||
| 8LN-K7533-00-00 | Bracket, Rear (R.H) | ||
| 8LN-K7534-00-00 | Bracket, Rear (L.H) | ||
| 2 | 8JP-RA519-00-00 | Rivet, 10 | 2 |
| 6 | 8JP-RA529-00-00 | Rivet, 17 | 6 |
| 1 | 8MG-H258A-00-00 | Extension, Wire Harness | 1 |
| 2 | 8JP-RA530-00-00 | Rivet, 18 | 2 |
| 1 | 8MJ-K8261-00-00 | Plate, Body Protect 1 | 1 |
| 1 | 8MJ-F4141-00-00 | Protector, Fuel Tank | 1 |
| 1 | 8KC-K7557-10-00 | .Protector 7 | 1 |
| 8 | 8KC-RA290-00-00 | Screw | 8 |
| 1 | 8MU-F7441-10-00 | Footrest, Rear 2 | 1 |
| 1 | 8MU-F7431-10-00 | Footrest, Rear 1 | 1 |
| 18 | 8JP-RA518-00-00 | Rivet, 9 | 18 |
