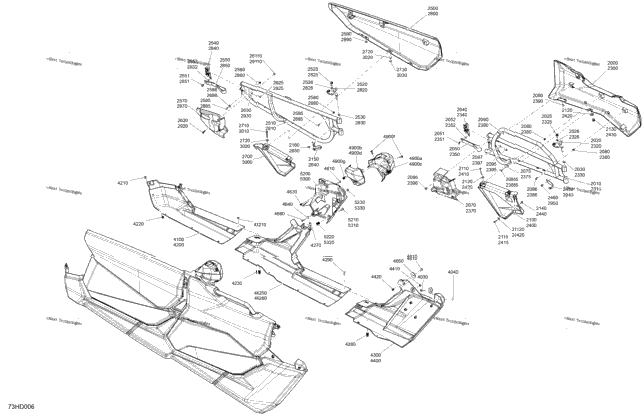

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705014355 | Timeless Black, LH Rear Door Panel | 1 |
| 1 | 705018466 | Deep Black, LH Rear Door | 1 |
| 1 | 705011187 | Door Support | 1 |
| 2 | 207582054 | Hex Screw Washer Head M8 X 20 | 2 |
| 2 | 234081430 | Flat Washer M8 | 2 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 705013095 | LH Latch | 1 |
| 1 | 293850135 | Belt | 1 |
| 1 | 293150103 | Pop Rivet 3/16" | 1 |
| 1 | 293900104 | Bushing | 1 |
| 1 | 705013859 | LH Latch Cover | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 2 | 250000721 | Torx Truss Screw M6 X 16 | 2 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 2 | 250000786 | Torx Screw M6 X 20, Scotch Grip | 2 |
| 3 | 293150103 | Pop Rivet 3/16" | 3 |
| 2 | 224061121 | Flat Washer | 2 |
| 1 | 705011358 | LH Lower Door Cover | 1 |
| 2 | 250000748 | Torx Screw M6 X 45 | 2 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
| 5 | 234062670 | Stainless Steel Flat Washer | 5 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 293850129 | Door Belt | 1 |
| 1 | 705014360 | Timeless Black, RH Rear Door Panel | 1 |
| 1 | 705018472 | Deep Black, RH Rear Door | 1 |
| 1 | 705013096 | RH Latch | 1 |
| 1 | 705013860 | RH Latch Cover | 1 |
| 1 | 705011359 | Right Lower Door Cover | 1 |
| 1 | 705014331 | Timeless Black, LH Front Door Panel | 1 |
| 1 | 705018468 | Deep Black, LH Front Door | 1 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon | 2 |
| 1 | 705013535 | LH Latch Cover | 1 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 1 | 705010732 | LH Lower Door Panel | 1 |
| 2 | 250000749 | Torx Truss Screw M6 X 50 | 2 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 705014337 | Timelesss Black, RH Front Door Panel | 1 |
| 1 | 705018470 | Deep Black, RH Front Door | 1 |
| 1 | 705013536 | RH Latch Cover | 1 |
| 1 | 705010733 | RH Lower Door Panel | 1 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 1 | 705017554 | Deep Black, LH Central Side Panel | 1 |
| 1 | 705017555 | Deep Black, RH Central Body Panel | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 2 | 705016606 | Insert | 2 |
| 1 | 705015741 | LH Rear Central Lateral Panel | 1 |
| 1 | 705015742 | RH Rear Central Lateral Panel | 1 |
| 2 | 293150108 | Pop Rivet 3/16” | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 705010676 | LH Rear Lateral Panel | 1 |
| 1 | 705010677 | Deep Black, RH Rear Lateral Panel | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 16 | 250000722 | Torx Screw M6 X 20 | 16 |
| 4 | 250100198 | Panel Nut M6 X 1.0 | 4 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 6 | 705003841 | Support Plate | 6 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 705015489 | LH Central Cage Trim | 1 |
| 1 | 705014860 | LH Central Cage Trim | 1 |
| 1 | 705015490 | RH Central Cage Trim | 1 |
| 1 | 705014862 | RH Central Cage Trim | 1 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 1 | 705013098 | Black, LH Central Door Trim | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 705016606 | Insert | 1 |
| 1 | 705013099 | Black RH Central Door Trim | 1 |
