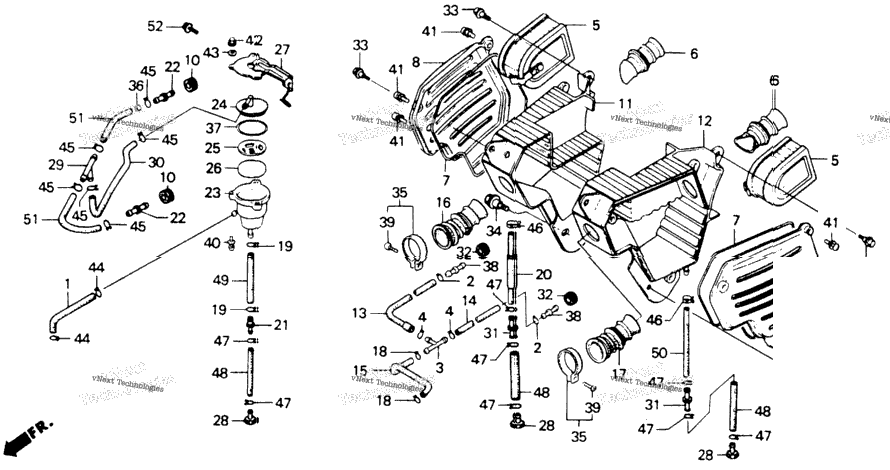

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 15761-KC1-940 | TUBE, BREATHER | ||
| 2 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 2 |
| 1 | 15772-KK0-000 | JOINT, BREATHER THREE WAY | 1 |
| 2 | 15772-MN1-670 | CLIP B, BREATHER TUBE | 2 |
| 2 | 17211-KC1-920 | ELEMENT, AIR CLEANER | 2 |
| 17212-KC1-730 | DUCT, AIR CLEANER HOUSING | ||
| 2 | 17219-HA2-405 | SEAL, AIR CLEANER COVER | 2 |
| 2 | 17219-KC1-000 | SEAL, AIR CLEANER COVER | 2 |
| 17221-KC1-730 | COVER, R. AIR CLEANER | ||
| 17222-KC1-730 | COVER, L. AIR CLEANER | ||
| 17225-KC1-650 | GROMMET, TUBE | ||
| 17231-KC1-940 | CASE, R. AIR CLEANER | ||
| 17232-KC1-940 | CASE, L. AIR CLEANER | ||
| 17241-KC1-940 | TUBE, R. AIR CLEANER IN. | ||
| 17242-KC1-940 | TUBE, L. AIR CLEANER IN. | ||
| 17243-KC1-940 | TUBE A, AIR IN. | ||
| 17252-KC1-730 | TUBE, R. AIR CLEANER CONNECTING | ||
| 17253-KC1-730 | TUBE, L. AIR CLEANER CONNECTING | ||
| 2 | 17316-MN1-670 | CLIP A, BREATHER TUBE | 2 |
| 2 | 17316-611-000 | CLIP, BREATHER TUBE | 2 |
| 17359-KC1-920 | TUBE, R. AIR CLEANER DRAIN | ||
| 1 | 17359-KT1-780 | JOINT, BREATHER TUBE | 1 |
| 2 | 17359-419-670 | JOINT, BREATHER TUBE | 2 |
| 17361-419-670 | BODY, BREATHER SEPARATOR | ||
| 17362-174-670 | CAP, BREATHER SEPARATOR | ||
| 17363-419-670 | HOLDER, ELEMENT | ||
| 17364-419-000 | ELEMENT, CONDENSATION | ||
| 17366-KC1-920 | COVER, BREATHER SEPARATOR | ||
| 3 | 17370-419-700 | PLUG, BREATHER TUBE | 3 |
| 17373-399-760 | JOINT, BREATHER THREE WAY | ||
| 17376-KC1-940 | TUBE A, BREATHER | ||
| 2 | 19102-KT8-000 | JOINT, TUBE | 2 |
| 50356-MA6-000 | GROMMET | ||
| 5 | 90116-ME9-000 | BOLT, FLANGE (6MM) | 5 |
| 1 | 90122-752-000 | BOLT, SPECIAL (6MM) | 1 |
| 2 | 90651-GHB-710 | BAND, AIR CLEANER CONNECTING TUBE | 2 |
| 2 | 95018-56200 | BAND, AIR CLEANER CONNECTING TUBE (56) | 2 |
| 90801-KC1-940 | PLUG, CONE TYPE (10X10X4) | ||
| 91305-419-670 | O-RING (47X1.9) | ||
| 2 | 91463-393-780 | JOINT, TUBE | 2 |
| 2 | 93500-04020-0G | SCREW, PAN (4X20) | 2 |
| 3 | 93891-04016-07 | SCREW-WASHER (4X16) | 3 |
| 6 | 93891-06025-07 | SCREW-WASHER (6X25) | 6 |
| 3 | 94021-04070-0S | NUT, CAP (4MM) | 3 |
| 3 | 94101-04700 | WASHER, PLAIN (4MM) | 3 |
| 2 | 95002-02120 | CLIP, TUBE (B12) | 2 |
| 6 | 95002-02130 | CLIP, TUBE (B12.5) | 6 |
| 2 | 95002-41200-08 | CLAMP, TUBE (D12) | 2 |
| 8 | 95002-80000 | CLIP, TUBE (C12) | 8 |
| 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (8X12X110) | ||
| 95005-12001-30M | BULK HOSE, VACUUM (12X1000) (12X120) | ||
| 1 | 95005-750012-0M | BULK TUBE,TB75-1M | 1 |
| 2 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X140) | 2 |
| 1 | 95701-06014-07 | BOLT, FLANGE (6X14) | 1 |
