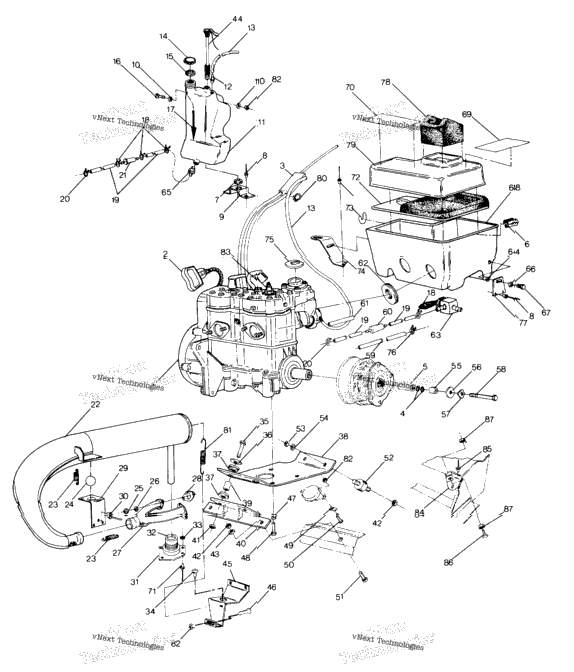

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1211456 | ENG.EC50PL-01 (500 0nly) | ||
| 5430520 | HANDLE-RECOIL | ||
| 7080373 | CABLE, THROTTLE | ||
| 2 | 5410507 | O-RING | 2 |
| 1 | 5020513 | SPACER | 1 |
| 5410021 | GROMMET RUBBER | ||
| 8 | 7621425 | POP RIVET(10) | 8 |
| 5223985 | BRACKET | ||
| 2 | 7558302 | WASHER, WROUGHT | 2 |
| 5430921 | TANK, OIL (500 Only) | ||
| 5430997 | TANK, OIL (500 Classic Only) | ||
| 5430579 | VENT-TANK | ||
| 1 | 8360009 | LINE,FUEL,1/8 ID,600 CM. | 1 |
| 5430594 | CAP-OIL TANK | ||
| 1 | 5810141 | OIL CAP GASKET | 1 |
| 7512116 | SCREW(10) | ||
| 7072160 | DECAL, OIL LEVEL | ||
| 4 | 7080236 | HOSE CLAMP | 4 |
| 1 | 2870563 | FUEL LINE, 1/4 ID | 1 |
| 7080134 | Discontinued | ||
| 1 | 2530009 | SMALL IN-LINE FILTER | 1 |
| 1260537 | MUFFLER, INDY 500 | ||
| 3 | 7042031 | SPRING | 3 |
| 1 | 5430687 | EXHAUST MOUNT BALL | 1 |
| 3080285 | NUT | ||
| 4 | 3080530 | LOCK WASHER | 4 |
| 1 | 1260501 | MANIFOLD | 1 |
| 3082510 | EXHAUST GASKET | ||
| 1011601 | SUPPORT, MUFFLER | ||
| 3 | 7621429 | RIVET | 3 |
| 1 | 5431058 | HAT, EXHAUST, STD | 1 |
| 1 | 5410502 | BOOT, EXHAUST | 1 |
| 4 | 7558212 | WASHER,13/64X1/2X18GA,FL-Y (10) | 4 |
| 1 | 5410467 | VIBRATION DAMPENER | 1 |
| 7512533 | SCREW | ||
| 4 | 7555740 | WASHER | 4 |
| 5410523 | MOUNT,RUBBER,ENGINE | ||
| 5220684 | PLATE,MOTOR MT. | ||
| 5332779 | SPACER | ||
| 1011587 | MOUNT, MOTOR | ||
| 7542513 | NUT ,(10) | ||
| 7542415 | NUT LOCK(10) | ||
| 12 | 7558403 | WASHER,WROUGHT | 12 |
| 1 | 4040016 | OIL LEVEL SENSOR WITH CONNECTIN (500 Classic Only) | 1 |
| 5222153 | SUBSTITUTED BY 9999999 | ||
| 2 | 7512193 | CARRIAGE BOLT | 2 |
| 4 | 7553101 | SPRING LOCK WASHER | 4 |
| 4 | 7512539 | BOLT | 4 |
| 2 | 7670021 | NUT, SPEED | 2 |
| 2 | 7512263 | BOLT-CARRIAGE | 2 |
| 7512491 | BOLT(10) | ||
| 3110022 | MOUNT | ||
| 7542403 | NUT LOCK | ||
| 2 | 7555720 | FLAT WASHER | 2 |
| 1 | 5430261 | BUSHING | 1 |
| 1 | 5210748 | WASHER | 1 |
| 1 | 7575202 | WASHER LOCK | 1 |
| 1 | 7512565 | BOLT | 1 |
| 5521132 | HOSE,IMPULSE | ||
| 1 | 2530008 | FUEL FILTER | 1 |
| 1 | 5521133 | FUEL LINE,3/16 ID(600 CM.) | 1 |
| 5410271 | BOOT | ||
| 7052039 | FUEL SHUT OFF VALVE | ||
| 3 | 7541923 | WELL NUT | 3 |
| 1 | 7052042 | FITTING, OUTLET | 1 |
| 3 | 7552604 | WASHER | 3 |
| 2 | 7512279 | SCREW | 2 |
| 5431112 | SILENCER,INTAKE(DRILLED) | ||
| 7072131 | DECAL,COOLING SYSTEM | ||
| 7072611 | DECAL,SPEC,(500) | ||
| 4 | 7621418 | RIVET(50) | 4 |
| 1 | 1253102 | BAFFLE ASSEMBLY | 1 |
| 7072151 | DECAL,SHUT-OFF VALVE | ||
| 5223973 | BRKT,AIR SILENCER,BLK. | ||
| 2511155 | PRESSURE CAP | ||
| 2 | 7080003 | HOSE CLAMP | 2 |
| 5210928 | BRKT INTAKE SILENCER | ||
| 1 | 5810377 | INTAKE ASSEMBLY, FOAM | 1 |
| 1 | 5430920 | SILENCER COVRE (500 Only) | 1 |
| 5431111 | COVER,SILENCER(DRILLED) (500 Classic Only) | ||
| 2 | 7080278 | CLIP | 2 |
| 1 | 7042029 | SPRING | 1 |
| 4 | 7542122 | NYLOK NUT | 4 |
| 2 | 3070165 | SPARK PLUG | 2 |
| 1 | 1011741 | LIMITER,TORQUE,BLK. | 1 |
| 7 | 7661625 | RIVET, INTERLOCK | 7 |
| 3110023 | STOP | ||
| 2 | 7542432 | NUT, JAM | 2 |
| 1211457 | ENG.EC50PL-02 (500 Classic Only) |
