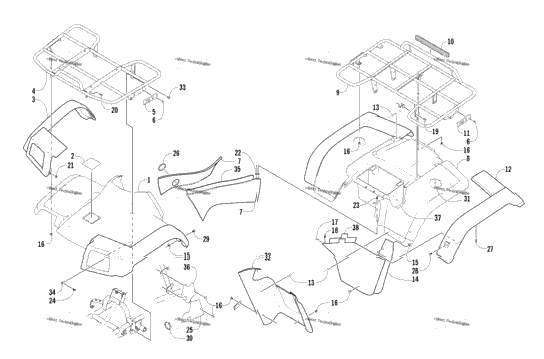

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0506-605 | PANEL,FENDER,FR-ROUTED (RD) (inc. 2) | ||
| 0506-604 | PANEL,FENDER,FR-ROUTED (GRN) (inc. 2) | ||
| 1 | 0506-616 | PANEL,FENDER,FR-ROUTED (RD) (inc. 2) (4x4) | 1 |
| 0506-584 | PANEL,FENDER FR-ROUTED (GRN) (inc. 2) (4x4) | ||
| 1406-142 | COVER,ACCESS-RED (W/LOGO) | ||
| 1406-141 | COVER,ACCESS-MARSH GREEN (W/LOGO) | ||
| 0506-550 | FLARE, FRONT RH (4x4) | ||
| 1 | 0506-551 | FLARE, FRONT LH (4x4) | 1 |
| 1 | 0506-718 | Rack - Front Black | 1 |
| 1 | 0506-547 | RACK, FR-BLACK (4x4) | 1 |
| 0606-526 | Reflector, Front Amber | ||
| 8 | 0623-269 | Clip, Retaining | 8 |
| 0506-548 | Panel, Side - Right | ||
| 0506-243 | PANEL,SIDE-LH ROUTED - RED | ||
| 0506-549 | Panel, Side - Right | ||
| 0506-673 | PANEL, SIDE-LH-ROUTED GRN | ||
| 0506-618 | RR FENDER-RED-ROUTED | ||
| 0506-634 | PANEL, FENDER-RR-ROUTED-GRN | ||
| 1506-520 | PANEL,RR FENDER-RED-ROUTED (4x4) | ||
| 1506-519 | PANEL,RR FENDER-GREEN-ROUTED (4x4) | ||
| 1 | 0506-821 | RACK,REAR-W/FENCE-BLACK | 1 |
| 0406-293 | Wrap, Tube - Rear Rack | ||
| 2 | 0606-029 | Reflector - Red | 2 |
| 1 | 0506-552 | FLARE, REAR RH (4x4) | 1 |
| 1 | 0506-553 | FLARE, REAR LH (4x4) | 1 |
| 1 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 |
| 1 | 1506-042 | FENDER,EXTENSION-RH-ROUTED | 1 |
| 1 | 0406-085 | FENDER EXTENSION-LH-MOLDED-BLACK | 1 |
| 4 | 0423-077 | NUT,T-W/TEETH (6MM) | 4 |
| 1 | 0423-101 | Screw, Shoulder | 1 |
| 0423-060 | CLIP, TINERMAN -C07508-8A-4 | ||
| 2 | 0623-309 | Screw, Self-Tapping | 2 |
| 6 | 8409-020 | Screw, Cap | 6 |
| 0423-360 | SCREW, CAP HFH M8-1.25 X 12 EM- BLK | ||
| 2 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) (4x4) | 2 |
| 2 | 0123-010 | Nut, Expansion | 2 |
| 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | ||
| 2 | 8477-616 | Screw, Machine | 2 |
| 1406-006 | PANEL, FENDER- INNER | ||
| 1 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 |
| 16 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 (4x4) | 16 |
| 2 | 8477-610 | Screw, Machine | 2 |
| 2 | 0423-355 | Screw, Shoulder (4x4) | 2 |
| 2 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK (4X4) | 2 |
| 1 | 0123-788 | Tie, Cable - 8 in (4x4) | 1 |
| 1 | 0412-124 | SHIELD, HEAT(PSA) | 1 |
| 0406-140 | FLARE,FR RH MOLDED-ECONO-BLACK | ||
| 0506-628 | PANEL, KICK-FR-LH-ROUTED | ||
| 1 | 0406-941 | PANEL, KICK-FR-RH-BLACK (4x4) | 1 |
| 1 | 0506-626 | PANEL, KICK-FR-LH-ROUTED (4x4) | 1 |
| 2 | 8408-816 | Screw, Cap | 2 |
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 0412-142 | SHIELD,HEAT (PSA) | ||
| 1406-063 | Panel, Fender - Inner - Right | ||
| 1406-064 | PANEL,FENDER-LH-INNER | ||
| 1 | 0412-147 | SHIELD,HEAT (PSA) | 1 |
| 0412-140 | SHIELD,HEAT (PSA) |
