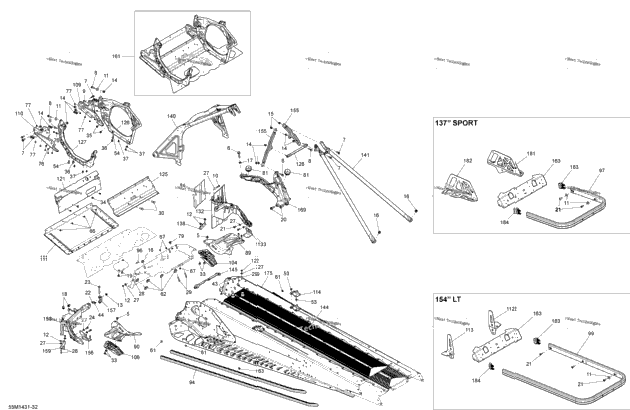

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 1 | 207584034 | Hex. Flange Screw, Scotch Grip | 1 |
| 10 | 207662044 | Hex. Flange Screw M6 X 20 | 10 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 210262040 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 224061201 | Flat Washer | 2 |
| 6 | 232561414 | Elastic Stop Nut M6 | 6 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 12 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250000325 | Torx Truss Screw M6 X 12 | 2 |
| 2 | 250000351 | Hex. Flange Screw M8 X 25, Nylon | 2 |
| 2 | 250000402 | Torx-Truss Screw M6 X 18 | 2 |
| 1 | 250000534 | Tork Screw M6 X 16 | 1 |
| 1 | 250000535 | Torx Screw M8 X 55 | 1 |
| 2 | 250000536 | Tork Screw M6 X 18 | 2 |
| 11 | 250200039 | Flat Washer | 11 |
| 1 | 250300027 | Clinch Stud M6 X 20 | 1 |
| 1 | 250300031 | Clinch Stud M6 X 30 | 1 |
| 2 | 250300038 | Clinch Stud | 2 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm | 6 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 8 | 293150144 | Stavex Rivet | 8 |
| 12 | 293150146 | Henrob Rivet | 12 |
| 1 | 293150147 | Hemlock Rivet | 1 |
| 5 | 293150174 | Hemlock Rivet, 6.4 mm | 5 |
| 2 | 293150182 | Monobolt Rivet 6.4 | 2 |
| 3 | 293730041 | Full Moon Dart 8 mm | 3 |
| 4 | 293730052 | Black, Plug | 4 |
| 2 | 293730059 | Full Moon Dart 10 mm | 2 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 3 | 390402400 | Pop Rivet 3/16" | 3 |
| 6 | 390909100 | Avex Rivet | 6 |
| 12 | 390909200 | Avex Rivet | 12 |
| 1 | 293450275 | Insert | 1 |
| 2 | 512060295 | Rubber Mount | 2 |
| 1 | 514054755 | HEAT SHIELD | 1 |
| 1 | 518324874 | RH Reinforcement | 1 |
| 1 | 518324875 | LH Reinforcement | 1 |
| 518325377 | RH ROLLER | ||
| 1 | 518325378 | LH Roller | 1 |
| 1 | 518325560 | Adhesive Patch | 1 |
| 1 | 518325577 | Clear Rear Bumper | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 1 | 518325949 | RH Front Member | 1 |
| 1 | 518325950 | LH Front Member | 1 |
| 1 | 518325951 | Front Bottom Plate | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base | 1 |
| 1 | 518326140 | Engine Support | 1 |
| 1 | 518326198 | Front Member | 1 |
| 1 | 518326328 | RH Side Member | 1 |
| 1 | 518326330 | LH Side Member | 1 |
| 1 | 518326355 | Center Column Support | 1 |
| 1 | 518326472 | Battery Support | 1 |
| 1 | 518326482 | RH SUPPORT | 1 |
| 1 | 518326550 | RETAINING PLATE | 1 |
| 1 | 518326557 | Front Member, S Module | 1 |
| 1 | 518326559 | Rear Member | 1 |
| 1 | 518326641 | Rear Radiator Ass'y, 137" | 1 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518326820 | LH Stirup | 1 |
| 2 | 518326848 | Upper Column Support | 2 |
| 1 | 518326960 | Support | 1 |
| 1 | 518326961 | U-Attach | 1 |
| 1 | 518326986 | Attach | 1 |
| 1 | 518327006 | E-Module | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518327535 | BRACE ASS'Y | 1 |
| 415129824 | FRAME TUNDRA 137 LLF | ||
| 1 | 518327905 | RH Slide Bracket | 1 |
| 1 | 518327906 | LH SLIDE BRACKET | 1 |
| 1 | 520000711 | Full Moon RH Cap | 1 |
| 1 | 520000712 | Full Moon LH Cap | 1 |
