Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

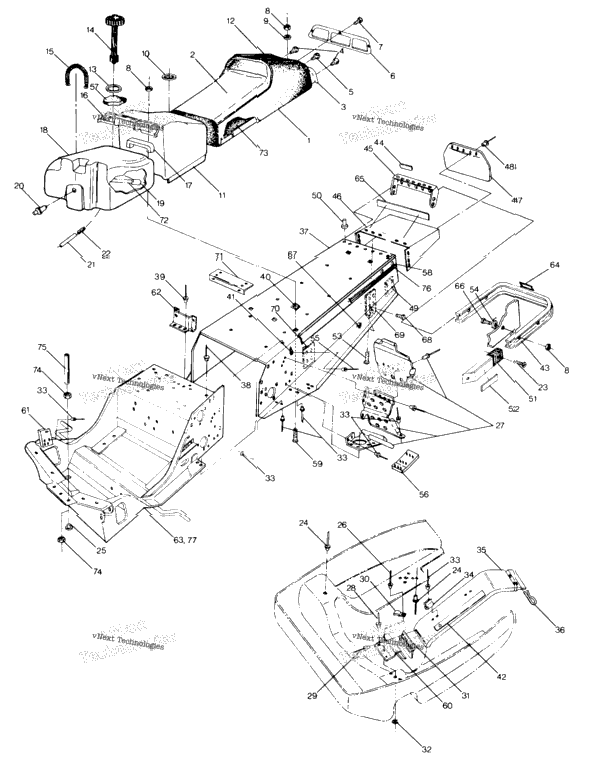

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2681385 | SEAT ASM,(INDY500) (Incl. 2-7,12,75) (500 Only) | ||
| 2681374 | COVER,SEAT(CLASSIC'89) (500 Classic Only) | ||
| 2681386 | COVER,SEAT(INDY500) (500 Only) | ||
| 5430425 | HOUSING,TAILLIGHT | ||
| 2 | 4030015 | BULB TAILLIGHT/TACH/SPEEDO (10) | 2 |
| 4030019 | BULB, BRAKELIGHT | ||
| 5430423 | Discontinued | ||
| 7511840 | SCREW | ||
| 5 | 7542122 | NYLOK NUT | 5 |
| 2 | 7558221 | WASHER(10) | 2 |
| 5430575 | GROMMET-GAS TANK | ||
| 2681375 | COVER,TANK(CLASSIC'89) (500 Classic Only) | ||
| 2681384 | COVER,TANK,(INDY 500) (500 Only) | ||
| 2681290 | BUCKLE&STRAP | ||
| 1 | 5810142 | GAS CAP GASKET | 1 |
| 1 | 2511149 | GAS CAP WITH GAUGE | 1 |
| 1 | 7042020 | SPRING, TANK | 1 |
| 5221722 | STRAP,GASTANK,BLK. | ||
| 5420126 | Discontinued | ||
| 2511150 | TANK,GAS | ||
| 1 | 7052037 | FUEL PICKUP WITH FILTER, 105 MI | 1 |
| 1 | 7052023 | FITTING, OUTLET | 1 |
| 2200190 | N/A,USE COMPONENTS | ||
| 5430579 | VENT-TANK | ||
| 4 | 7511863 | SCREW | 4 |
| 34 | 7621457 | RIVET | 34 |
| 7080288 | PLUG (500 Only) | ||
| 6 | 7621402 | POP RIVET | 6 |
| 2200250 | FOOTREST ASM,LH | ||
| 2200254 | FOOTREST ASM,RH | ||
| 1 | 7621452 | RIVET | 1 |
| 14 | 7621330 | POP RIVET | 14 |
| 4020035 | CLIP,WIRING | ||
| 5210728 | HINGE | ||
| 4 | 7558212 | WASHER,13/64X1/2X18GA,FL-Y (10) | 4 |
| 52 | 7621429 | RIVET | 52 |
| 2 | 5220817 | BELT RETAINER CLIP | 2 |
| 5230118 | SUBSTITUTED BY 5240965 | ||
| 1 | 7080216 | CLUTCH GUARD PIN | 1 |
| 1011746 | TUNNEL, (500) | ||
| 1011747 | TUNNEL, (500 SKS) (500 SKS Only w/1011694) | ||
| 10 | 7661620 | RIVET | 10 |
| 3 | 7670021 | NUT, SPEED | 3 |
| 7080227 | SNAP-MALE | ||
| 7072153 | DECAL, WARNING | ||
| 5224334 | BUMPER,REAR,BLK. | ||
| 5224349 | BUMPER, (SKS) (500 SKS Only) | ||
| 7072132 | DECAL, TRACK | ||
| 5220478 | PANEL,TUNNEL,BACK | ||
| 1011694 | PANEL,CLOSE-OFF,REAR (500 SKS Only) | ||
| 1 | 5410394 | SNOW FLAP | 1 |
| 5 | 7621418 | RIVET(50) | 5 |
| 5222061 | WEARPLATE,TUNNEL | ||
| 7661818 | RIVET,SEMI-TUBE,(10) * | ||
| 5430930 | Discontinued | ||
| 2 | 2670070 | REFLECTOR, RED | 2 |
| 2 | 7512103 | BOLT | 2 |
| 4 | 7558301 | FLAT WASHER | 4 |
| 6 | 7621222 | RIVET(10) | 6 |
| 5220634 | PLATE,TUNNEL,LH | ||
| 5220635 | PLATE,TUNNEL,RH | ||
| 5810201 | FOAM, FILLER | ||
| 7072078 | DECAL(47.5'')TUNNEL | ||
| 3 | 7512193 | CARRIAGE BOLT | 3 |
| 5220406 | BRACKET, HINGE | ||
| 1011582 | SUPT., MUFFLER | ||
| 5221932 | BRACKET, GASTANK | ||
| 1011743 | BULKHEAD,(500) (500 Only) | ||
| 7072623 | DECAL,STRIPE,R.BUMPER (500 Classic Only) | ||
| 7072653 | DECAL(36.0'')R.BUMP. (500 Only) | ||
| 7072646 | DECAL, 500 SKS (500 SKS Only) | ||
| 4 | 7512240 | BOLT | 4 |
| 2 | 7542451 | NYLOK NUT (500 SKS Only) | 2 |
| 7515432 | BOLT,NYLOC,BLACK (500 SKS Only) | ||
| 1011666 | BRKT,R.SUSP,LH MTG. | ||
| 1011667 | BRKT,R.SUSP,RH MTG. | ||
| 5220542 | BRKT. | ||
| 5220973 | BRKT, TOOL BOX | ||
| 1 | 8450003 | FUEL LINE, 1/4 ID | 1 |
| 5430707 | SEAT BUN | ||
| 7670031 | PALNUT(10) (500 Classic Only) | ||
| 5332896 | SPACER (500 Classic Only) | ||
| 7072541 | DECAL,BUMPER EXT.SILVER (500 Classic Only) | ||
| 1011745 | BULKHEAD,(500CLASSIC) (500 Classic Only) | ||
| 2681373 | CUSHION,SEAT(CLASSIC'89) 31 |
