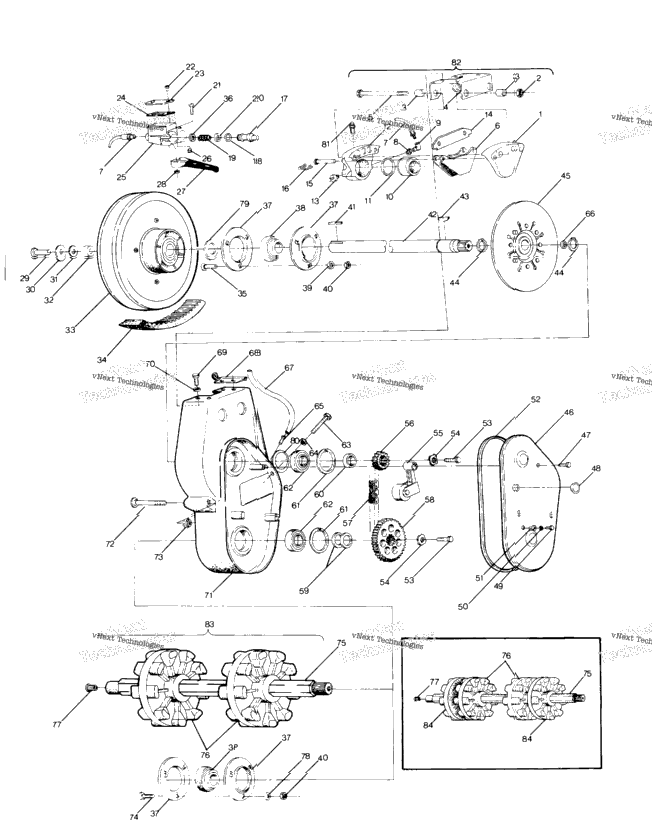

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1930570 | CASTING-CARRIER | ||
| 1930558 | NUT | ||
| 1930559 | BUSHING | ||
| 1930560 | BRACKET (400 Only) | ||
| 5223986 | BRACKET | ||
| 1930561 | BOLT-BRIDGE | ||
| 1930569 | BRAKE PAD, INDIVIDUAL | ||
| 5420114 | LINE-BRAKE | ||
| 5020371 | Discontinued | ||
| 1 | 7052034 | ELBOW-FEMALE | 1 |
| 5020511 | PISTON | ||
| 1930567 | SEAL-PISTON | ||
| 1930566 | CALIPER ASM, BRAKE | ||
| 4110046 | SWITCH-STOPLIGHT | ||
| 5210999 | SPACER (650 Only) | ||
| 1930563 | PIN,PAD RETAINING | ||
| 1930562 | CLIP-SPRING | ||
| 5020319 | PISTON-BRAKE | ||
| 1 | 5410163 | O-RING | 1 |
| 1 | 7041067 | COMPRESSION SPRING | 1 |
| 1 | 5410164 | U-PACKING SEAL | 1 |
| 7511975 | SCREW | ||
| 7511841 | Discontinued | ||
| 1 | 5630127 | COVER RESERVOIR | 1 |
| 5410176 | GASKET-COVER | ||
| 5630125 | HOUSING-MASTER CYL | ||
| 7512308 | SCREW,SET(10) | ||
| 1 | 5630335 | LEVER,BRAKE(RED) | 1 |
| 5332326 | BUSHING-BRAKE LEVER | ||
| 7515301 | BOLT | ||
| 1 | 7555701 | WASHER,FLAT | 1 |
| 1 | 7555734 | WASHER,FLAT(10) | 1 |
| 5020291 | INPUT SHAFT SPACER, .984 X 63 | ||
| ------- | Driven Clutch Asm. | ||
| 1 | 3211042 | SNOWMOBILE DRIVE BELT | 1 |
| 3 | 7512394 | CARRIAGE BOLT | 3 |
| 1 | 7555708 | WASHER | 1 |
| 4 | 5221172 | FLANGETTE | 4 |
| 3514501 | Discontinued | ||
| 3 | 7558402 | FLAT WASHER | 3 |
| 6 | 7542324 | NYLOK NUT | 6 |
| 1 | 7721204 | KEY-SQUARE | 1 |
| 5020323 | SHAFT, INPUT,BLK. | ||
| 7727003 | KEY,(10) | ||
| 7713901 | Discontinued | ||
| 1332091 | DISC BRAKE ASM | ||
| 5223775 | COVER CHAINCASE | ||
| 7512246 | Discontinued | ||
| 5410012 | PLUG,RUBBER-HOLE,.5DIA | ||
| 1 | 7511909 | SCREW | 1 |
| 1 | 7558201 | WASHER, FLAT | 1 |
| 7541918 | NUT-WELL | ||
| 5410277 | Discontinued | ||
| 2 | 7512325 | BOLT | 2 |
| 7577908 | WASHER SHAKEPROOF | ||
| 1332078 | CHAINCASE TIGHTENER | ||
| 3221034 | SPROCKET 19 T (400, 500 & 500 Classic Only) | ||
| 3221035 | SPROCKET 21 T (650 Only) | ||
| 3221037 | SPROCKET-18T (500 SKS Only) | ||
| 3224023 | Discontinued | ||
| 1 | 3222036 | SPROCKET 35 T,11W | 1 |
| 2 | 7556509 | BUSHING | 2 |
| 5010128 | SPACER, SPROCKET | ||
| 2 | 7718406 | RETAINING RING | 2 |
| 2 | 3514303 | BEARING | 2 |
| 7512470 | Discontinued | ||
| 1 | 7542404 | NUT | 1 |
| 7661504 | PIN-SPIRAL | ||
| 5020430 | Discontinued | ||
| 2200190 | N/A,USE COMPONENTS | ||
| 1011593 | RETAINER, RECOIL | ||
| 4 | 7512240 | BOLT | 4 |
| 4 | 7552801 | SPRING LOCK WASHER | 4 |
| 1 | 5130652 | CHAINCASE ASSEMBLY | 1 |
| 3 | 7515428 | BOLT,CARRIAGE | 3 |
| 3 | 7542423 | NUT,FLANGE | 3 |
| 3 | 7512331 | BOLT,CARRIAGE | 3 |
| 5020388 | DRIVE SHAFT | ||
| 5430571 | SPROCKET, 9T | ||
| 1 | 3280019 | SPEEDO METAL BUSHING | 1 |
| 7555725 | WASHER | ||
| 5410401 | O-RING,CHAINCASE | ||
| 1930564 | SCREW-BLEEDER | ||
| 1930556 | CALIPER ASM, BRAKE (Incl. 1-6, 10-12) | ||
| 1590198 | DRIVE SHAFT ASM (Incl. 75-77) | ||
| 1590218 | DRIVESHAFT ASM. (650 Only) (Incl. 75-77) | ||
| 2050056 | MASTER CYL.ASM,(SNOW) | ||
| 5222109 | CLIP,METAL(YOKOHAMA) | ||
| 5430993 | SPROCKET, HALF,9T (650 Only) |
