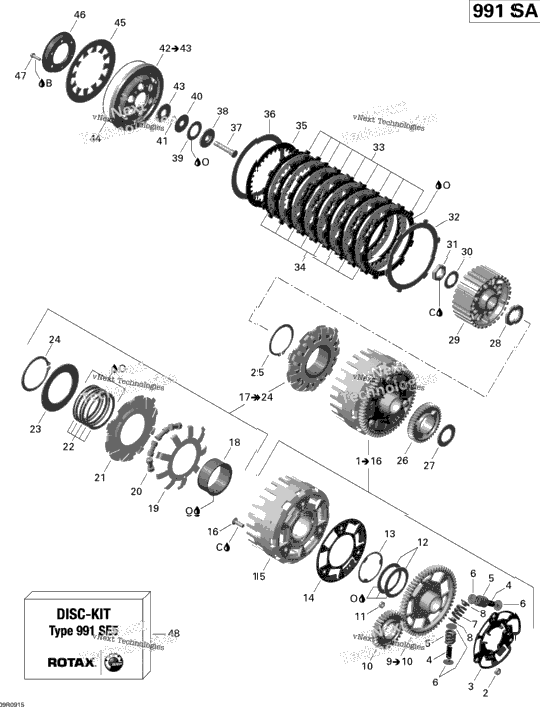

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Primary Drive Ass'y Includes 1 to 16 | ||
| 3 | 232081414 | Hex. Nut M8 | 3 |
| 1 | 420259583 | Outer Support Plate | 1 |
| 4 | 420238140 | Internal Compression Spring | 4 |
| 4 | 420238135 | Compression Spring | 4 |
| 8 | 420247972 | Spring Retainer | 8 |
| 2 | 420238130 | Compression Spring | 2 |
| 4 | 420247976 | Spring Retainer | 4 |
| 1 | 420684815 | Primary Drive Gear Ass'y Includes 9 to 10 | 1 |
| XXXX | Not Available As Spare Part - Primary Drive Gear | ||
| 3 | 420247614 | Spacer Sleeve | 3 |
| 2 | 420239395 | Disc Spring | 2 |
| 420627915 | Thrust Washer | ||
| 1 | 420259685 | Support Plate | 1 |
| 1 | 420659720 | Clutch Drum | 1 |
| 3 | 420941835 | Flat Head Screw, M8 X 25 | 3 |
| 420685543 | CENTRIFUGAL CLUTCH ASS'Y Includes 17 to 24 | ||
| 1 | 420659850 | BUSHING | 1 |
| 1 | 420659821 | Cam | 1 |
| 9 | 420229947 | Centrifugal Weight | 9 |
| 1 | 420659740 | Pressure Plate | 1 |
| 420238520 | Disc Spring | ||
| 1 | 420626390 | Stop Plate | 1 |
| 1 | 420245080 | Retaining Ring | 1 |
| 1 | 420245070 | Retaining Ring | 1 |
| 1 | 420634476 | Oil Gear Pump, 42 Teeth | 1 |
| 1 | 420626540 | THRUST WASHER | 1 |
| 1 | 420627220 | Thrust Washer | 1 |
| 1 | 420659750 | Clutch Hub | 1 |
| 1 | 420245830 | Spring Washer | 1 |
| 1 | 420242950 | Hex. Nut M24 | 1 |
| 420659970 | Plate 2.5 mm See Item 48, Disc Kit | ||
| XXXX | Not Available As Spare Part - Friction Plate See Item 48, Disc Kit | ||
| XXXX | Not Available As Spare Part - Clutch Plate See Item 48, Disc Kit | ||
| 1 | 420281535 | Adjustment Plate Kit | 1 |
| 1 | 420238856 | Disc Spring See Item 48, Disc Kit | 1 |
| 1 | 420659797 | Pin | 1 |
| 1 | 420659890 | Thrust Washer | 1 |
| 1 | 420632700 | Needle Bearing | 1 |
| 1 | 420626560 | Thrust Washer | 1 |
| 1 | 420245440 | Snap Ring | 1 |
| 1 | 420659735 | PRESSURE PLATE ASS'Y Includes 42 to 43 | 1 |
| 1 | 420626570 | Thrust Washer | 1 |
| 1 | 420245250 | Retaining Ring | 1 |
| 1 | 420238530 | Disc Spring See Item 48, Disc Kit | 1 |
| 1 | 420259860 | Plate Inner | 1 |
| 6 | 420440207 | Torx Flange Screw M6 X 20 | 6 |
| 1 | 420281935 | Disc Kit, Type 991 SE5 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| XXXX | Not Available As Spare Part - Engine Oil |
