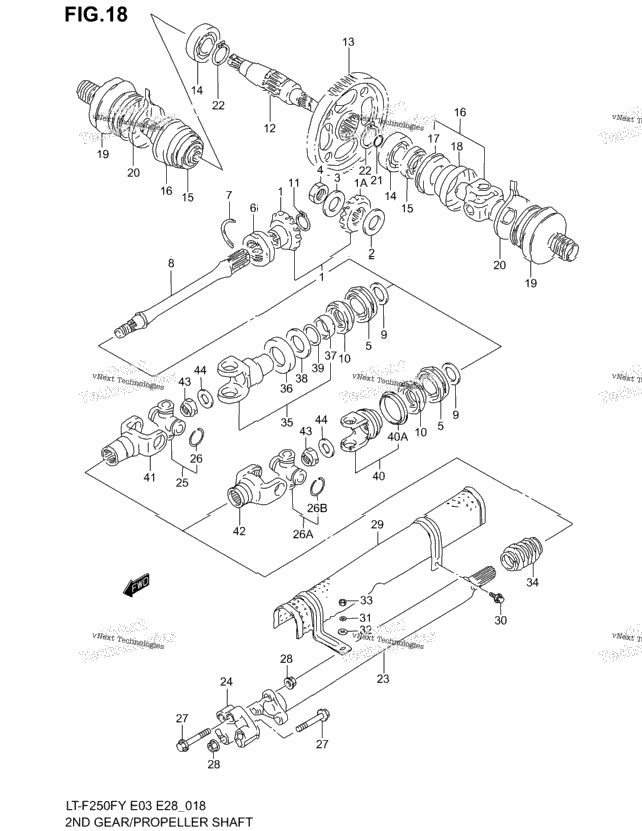

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 01500-10453 | BOLT | 6 |
| 24911-19B00 | GEAR, DRIVE BEVEL NT:16 | ||
| 24921-19B00 | GEAR, DRIVEN BEVEL NT:17 | ||
| 1 | 24935-19810 | SHIM SET, SEC DRIVE BEVEL T:0.30/0.35/0.90/0.95/ 1.00/1.05/1.10/1.15 | 1 |
| 1 | 09164-20007 | WASHER | 1 |
| 1 | 09140-20001 | NUT MODEL X/Y/K1 | 1 |
| 1 | 09140-20018 | NUT MODEL K2 | 1 |
| 1 | 09267-25006 | BEARING, FRONT | 1 |
| 1 | 09263-30050 | BEARING, REAR | 1 |
| 1 | 09390-50002 | RING | 1 |
| 24961-19B01 | SHAFT, SECONDARY OUTPUT | ||
| 1 | 09181-25186 | SHIM (T:0.50) | 1 |
| 1 | 09181-25051 | SHIM (T:0.60) | 1 |
| 1 | 09181-25052 | SHIM (T:0.65) | 1 |
| 1 | 09181-25053 | SHIM (T:0.70) | 1 |
| 1 | 09181-25054 | SHIM (T:0.75) | 1 |
| 1 | 09181-25055 | SHIM (T:0.80) | 1 |
| 1 | 09181-25056 | SHIM (T:0.85) | 1 |
| 1 | 09181-25057 | SHIM (T:0.90) | 1 |
| 1 | 09181-25058 | SHIM (T:0.95) | 1 |
| 1 | 09181-25059 | SHIM (T:1.00) | 1 |
| 1 | 09181-25060 | SHIM (T:1.05) | 1 |
| 1 | 09181-25061 | SHIM (T:1.10) | 1 |
| 1 | 09181-25062 | SHIM (T:1.15) | 1 |
| 1 | 09181-25063 | SHIM (T:1.20) | 1 |
| 1 | 09283-34008 | OIL SEAL (34X52X9) | 1 |
| 1 | 08331-31246 | CIRCLIP | 1 |
| 1 | 27551-19B10 | SHAFT, REAR FINAL DRIVEN | 1 |
| 27541-19B10 | GEAR, DRIVEN (NT:62) | ||
| 2 | 09262-25073 | BEARING (25X62X17) | 2 |
| 2 | 09283-34008 | OIL SEAL (34X52X9) | 2 |
| 2 | 27501-19B70 | JOINT, REAR FINAL OUTPUT MODEL X/Y | 2 |
| 2 | 27501-19B80 | JOINT, REAR FINAL OUTPUT MODEL K1/K2; Includes Item(s) 17 - 18 | 2 |
| 2 | 27592-19B70 | COVER, OUT PUT OIL SEAL MODEL X/Y/K1 | 2 |
| 2 | 27592-19B80 | COVER, OUT PUT OIL SEAL MODEL K2 | 2 |
| 2 | 27593-19B70 | COVER, UNIVERSAL JOINT | 2 |
| 2 | 27153-19B70 | BOOT | 2 |
| 2 | 44123-60A00 | CLAMP, UNIVERSAL JOINT | 2 |
| 2 | 09381-24001 | RING (OD:24,D:1.6) | 2 |
| 2 | 08331-31406 | CIRCLIP | 2 |
| 1 | 27150-19B00 | PROPELLER SHAFT | 1 |
| 1 | 27170-19B00 | COUPLING | 1 |
| 1 | 27200-73813 | JOINT, UNIVERSAL MODEL X/Y; Includes Item(s) 26 | 1 |
| 4 | 09380-25005 | CIRCLIP MODEL X/Y | 4 |
| 1 | 27200-19810 | JOINT, UNIVERSAL MODEL K1/K2; Includes Item(s) 26B | 1 |
| 4 | 09380-20016 | CIRCLIP MODEL K1/K2 | 4 |
| 6 | 08316-10103 | NUT | 6 |
| 1 | 27190-19B70 | PROTECTOR MODEL X/Y/K1 | 1 |
| 1 | 27190-19B71 | PROTECTOR MODEL K2 | 1 |
| 2 | 01550-06123 | BOLT | 2 |
| 2 | 08321-01063 | LOCK WASHER | 2 |
| 2 | 09160-06128 | WASHER (6.5X15X1.60) | 2 |
| 2 | 08310-00063 | NUT | 2 |
| 1 | 27153-62021 | BOOT | 1 |
| 1 | 27130-19B00 | YOKE, FRONT DRIVE OUTPUT MODEL X/Y; Includes Item(s) 36 - 39 | 1 |
| 1 | 09165-30003 | PLATE MODEL X/Y | 1 |
| 1 | 27591-19B01 | COLLAR MODEL X/Y | 1 |
| 1 | 27592-19B00 | PLATE, OIL SEAL MODEL X/Y | 1 |
| 1 | 09280-28007 | O RING MODEL X/Y | 1 |
| 1 | 27130-38F00 | YOKE, FRONT DRIVE OUTPUT MODEL K1/K2; Includes Item(s) 40A | 1 |
| 1 | 27592-38F00 | PLATE MODEL K1/K2 | 1 |
| 1 | 27140-19B00 | YOKE, PROPELLER SHAFT JOINT MODEL X/Y | 1 |
| 1 | 27140-38F00 | YOKE, PROPELLER SHAFT JOINT MODEL K1 | 1 |
| 1 | 27140-38F10 | YOKE, PROPELLER SHAFT JOINT MODEL K2 | 1 |
| 1 | 09159-16003 | NUT | 1 |
| 1 | 09160-16026 | WASHER (16X30X3) | 1 |
