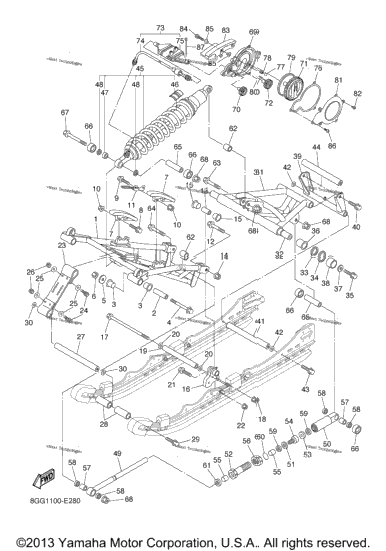

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 90386-15002-00 | Bush | 4 |
| 1 | 8FT-47331-00-00 | Arm, Pivot 1 | 1 |
| 2 | 90387-10042-00 | Collar | 2 |
| 4 | 90386-22002-00 | Bush | 4 |
| 2 | 90105-10150-00 | Bolt, Flange | 2 |
| 2 | 90201-104A7-00 | Washer, Plate | 2 |
| 2 | 90185-10060-00 | Nut, Self-Locking | 2 |
| 2 | 8F3-47422-01-00 | Runner, Sliding 2 | 2 |
| 2 | 90105-06557-00 | Bolt, Flange | 2 |
| 90105-06601-00 | Bolt, Flange | ||
| 4 | 95607-06200-00 | Nut, Self U-Flange | 4 |
| 1 | 8FR-47445-00-00 | Protector | 1 |
| 2 | 90105-10090-00 | Bolt, Flange | 2 |
| 2 | 90387-10033-00 | Collar | 2 |
| 2 | 95607-10200-00 | Nut, U Flange | 2 |
| 8FU-47415-10-00 | Bracket 1 | ||
| 1 | 90105-08119-00 | Bolt, Flange | 1 |
| 1 | 95607-08200-00 | Nut, Self-Locking | 1 |
| 90387-08037-00 | Collar | ||
| 2 | 90201-08649-00 | Washer, Plate | 2 |
| 2 | 95817-08030-00 | Bolt, Flange | 2 |
| 2 | 95607-08200-00 | Nut, Self-Locking | 2 |
| 1 | 8FU-47495-00-00 | Stopper 1 | 1 |
| 4 | 97007-06025-00 | Bolt | 4 |
| 8 | 90201-06747-00 | Washer, Plate | 8 |
| 4 | 95707-06300-00 | Nut, Nylon | 4 |
| 1 | 8FU-47485-00-00 | Shaft 3 | 1 |
| 90387-19003-00 | Collar | ||
| 2 | 90105-10433-00 | Bolt, Flange | 2 |
| 2 | 90201-10126-00 | Washer, Plate | 2 |
| 1 | 8FU-47332-10-00 | Arm, Pivot 2 | 1 |
| 1 | 8FU-47475-00-00 | Shaft 2 | 1 |
| 2 | 90201-251G8-00 | Washer, Plate | 2 |
| 2 | 90201-250T6-00 | Washer, Plate | 2 |
| 2 | 90105-10146-00 | Bolt, Flange | 2 |
| 2 | 90381-28108-00 | Bush, Solid | 2 |
| 2 | 90201-103U4-00 | Washer, Plate | 2 |
| 2 | 90387-25005-00 | Collar | 2 |
| 1 | 8FU-47417-10-00 | Bracket 3 | 1 |
| 2 | 90201-10136-00 | Washer, Plate | 2 |
| 1 | 8FU-47486-00-00 | Shaft 4 | 1 |
| 8FR-47480-00-00 | Shock Absorber | ||
| 1 | 4AA-22259-60-00 | . .Label, Warning | 1 |
| 2 | 93315-31758-00 | . Bearing | 2 |
| 4 | 93109-17071-00 | . Oil Seal | 4 |
| 8FR-4745A-00-00 | Rod, Control 1 | ||
| 8FU-4745C-10-00 | Rod, Control 3 | ||
| 1 | 90202-16229-00 | Washer, Plate | 1 |
| 8FU-4745B-00-00 | Rod, Control 2 | ||
| 8FU-47384-00-00 | Washer (L=7.5) AP | ||
| 8FU-47384-10-00 | Washer (L=5.0) AP | ||
| 1 | 8FU-47384-20-00 | Washer (L=10) STD | 1 |
| 8FU-4745D-00-00 | Stopper, Cont. 1 | ||
| 2 | 90384-16251-00 | Bush, Bimetal Formed | 2 |
| 1 | 8FU-47368-00-00 | Nut | 1 |
| 2 | 93315-31758-00 | Bearing | 2 |
| 4 | 93109-17071-00 | Oil Seal | 4 |
| 2 | 8FU-47466-00-00 | Spacer | 2 |
| 93210-347A6-00 | O-Ring | ||
| 1 | C68-43822-00-00 | Seal, Trim Dust | 1 |
| 2 | 90387-1012A-00 | Collar | 2 |
| 1 | 95817-10045-00 | Bolt, Flange | 1 |
| 1 | 90105-102A6-00 | Bolt, Flange | 1 |
| 2 | 90387-10034-00 | Collar | 2 |
| 4 | 8FU-47341-00-00 | Spacer | 4 |
| 2 | 95817-10070-00 | Bolt, Flange | 2 |
| 4 | 95607-10200-00 | Nut, U Flange | 4 |
| 1 | 8FU-474A1-00-00 | Housing, Adjuster | 1 |
| 1 | 8FU-474A2-00-00 | Gear, Drive | 1 |
| 1 | 8FU-474A3-00-00 | Handle, Adjuster | 1 |
| 1 | 8FU-474A4-00-00 | Gear, Stopper | 1 |
| 1 | 8FU-W474A-10-00 | Adjuster Cable Assy | 1 |
| 1 | 8FU-474A5-10-00 | . Cable, Adjuster | 1 |
| 1 | 8FU-47445-01-00 | . .Protector | 1 |
| 1 | 8FU-474A6-00-00 | Gasket, Adjuster Housing | 1 |
| 2 | 93501-04011-00 | .Ball | 2 |
| 2 | 90501-06M35-00 | Spring, Compression | 2 |
| 8FU-474A7-00-00 | Seal, Adjuster Handle | ||
| 1 | 93603-12007-00 | .Pin, Dowel | 1 |
| 1 | 8FU-47467-00-00 | Plate, Guide | 1 |
| 3 | 98507-05010-00 | Screw, Pan Head | 3 |
| 1 | 8FU-47441-10-00 | Slider 1 | 1 |
| 4 | 90387-07717-00 | Collar | 4 |
| 3 | 90111-06038-00 | Bolt, Hex. Socket Button | 3 |
| 1 | 90464-16061-00 | Clamp | 1 |
