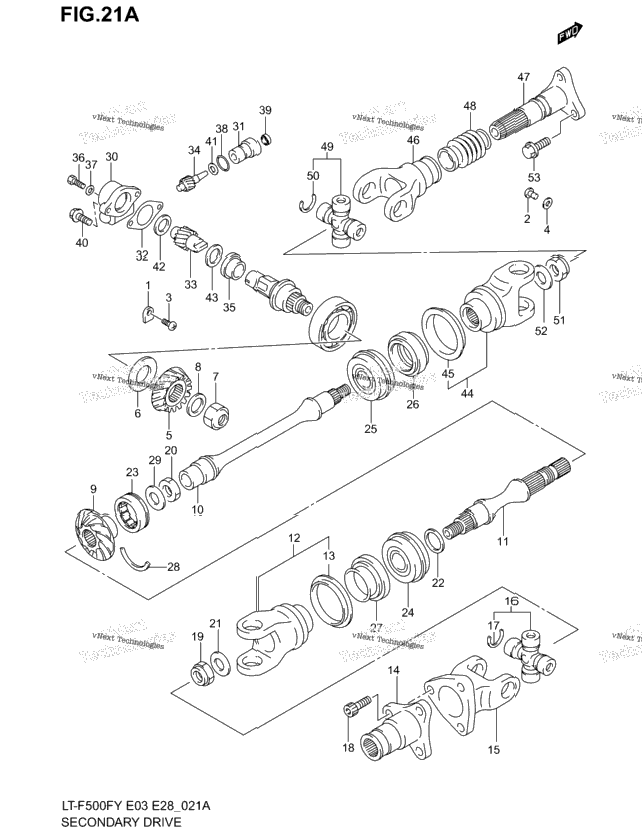

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 24741-21A00 | RETAINER, SEC DRIVE SFT BRG | 2 |
| 2 | 09125-06110 | SCREW, SEC DRIVE SFT BRG RTNR | 2 |
| 2 | 09125-06110 | SCREW, CNTR SHAFT BRG RTNR | 2 |
| 08211-06165 | RETAINER, CNTR SHAFT BRG | ||
| 1 | 24911-44D11 | GEAR, SEC DRIVE BEVEL NT:15 | 1 |
| 1 | 24935-19810 | SHIM SET, SEC DRIVE BEVEL GR T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 | 1 |
| 1 | 09140-20012 | NUT, SEC DRIVE BEVEL GR | 1 |
| 1 | 09164-20007 | WASHER, SEC DRIVE BEVEL GR 20.1X32X2 | 1 |
| 1 | 24921-44D10 | GEAR, SEC DRIVEN BEVEL | 1 |
| 24960-44D60 | SHAFT, SEC DRIVEN,FR | ||
| 1 | 24971-44D60 | SHAFT, SEC DRIVEN OUTPUT RR | 1 |
| 1 | 27130-38F00 | YOKE, RR DRIVE OUTPUT Includes Item(s) 13 | 1 |
| 1 | 27592-38F00 | PLATE, OUTPUT | 1 |
| 1 | 27150-38F00 | SHAFT, PROPELLER REAR | 1 |
| 1 | 27161-38F10 | SHAFT, PROP SHAFT JOINT REAR | 1 |
| 1 | 27200-19810 | JOINT SET, UNIVERSAL Includes Item(s) 17 | 1 |
| 4 | 09380-20016 | CIRCLIP | 4 |
| 3 | 07130-10203 | BOLT, PROP SHAFT REAR | 3 |
| 1 | 09159-16003 | NUT, REAR OUTPUT JOINT | 1 |
| 1 | 09159-22005 | NUT, SEC DRIVEN GEAR | 1 |
| 1 | 09160-16026 | WASHER, REAR OUTPUT FRANGE 16X30X3 | 1 |
| 1 | 09181-25051 | SHIM, SEC DRIVEN 25X34X0.6 | 1 |
| 1 | 09181-25052 | SHIM, SEC DRIVEN 25X34X0.65 | 1 |
| 1 | 09181-25053 | SHIM, SEC DRIVEN 25X34X0.70 | 1 |
| 1 | 09181-25054 | SHIM, SEC DRIVEN 25X34X0.75 | 1 |
| 1 | 09181-25055 | SHIM, SEC DRIVEN 25X34X0.80 | 1 |
| 1 | 09181-25056 | SHIM, SEC DRIVEN 25X34X0.85 | 1 |
| 1 | 09181-25057 | SHIM, SEC DRIVEN 25X34X0.90 | 1 |
| 1 | 09181-25058 | SHIM, SEC DRIVEN 25X34X0.95 | 1 |
| 1 | 09181-25059 | SHIM, SEC DRIVEN 25X34X1.00 | 1 |
| 1 | 09181-25060 | SHIM, SEC DRIVEN 25X34X1.05 | 1 |
| 1 | 09181-25061 | SHIM, SEC DRIVEN 25X34X1.10 | 1 |
| 1 | 09181-25062 | SHIM, SEC DRIVEN 25X34X1.15 | 1 |
| 1 | 09181-25063 | SHIM, SEC DRIVEN 25X34X1.20 | 1 |
| 1 | 09263-30050 | BRG, SEC DRIVEN GEAR,M 30X50X17 | 1 |
| 1 | 09267-25006 | BRG, SEC DRIVEN OUTPUT SFT FR 25X52X20.6 | 1 |
| 1 | 09267-25006 | BRG, SEC DRIVEN OUTPUT SFT RR 25X52X20.6 | 1 |
| 1 | 09283-34008 | OIL SEAL (34X52X9) 34X52X9 | 1 |
| 1 | 09390-50002 | RING, SEC DRIVEN BRG,M | 1 |
| 1 | 08211-22365 | WASHER, SEC DRIVEN | 1 |
| 1 | 26441-19B01 | HOUSING, ODOMETER GEAR | 1 |
| 1 | 26442-19B00 | SLEEVE | 1 |
| 1 | 26451-19B12 | GASKET | 1 |
| 26461-44D00 | GEAR, DRIVE | ||
| 26471-44D00 | GEAR, DRIVEN | ||
| 26481-19B00 | SPACER, DRIVEN GEAR | ||
| 1 | 09135-06013 | BOLT, GEAR | 1 |
| 1 | 09168-06004 | WASHER, DRIVEN 6.2X11X1.2 | 1 |
| 1 | 09280-17004 | O RING ID:16.6,DD:1.9 | 1 |
| 1 | 09289-05002 | SEAL, DRIVEN GEAR | 1 |
| 2 | 09103-06201 | BOLT, GEAR SLV | 2 |
| 1 | 08211-08151 | WASHER, DRIVEN GR | 1 |
| 1 | 08211-15201 | WASHER, DRIVE GR | 1 |
| 1 | 08211-17241 | WASHER, DRIVE GR,RH | 1 |
| 1 | 27130-38F00 | YOKE, FR DRIVE OUTPUT Includes Item(s) 45 | 1 |
| 1 | 27140-38F00 | YOKE, PROP SFT JOINT MODEL K1 | 1 |
| 1 | 27140-38F10 | YOKE, PROP SET JOINT MODEL K2 | 1 |
| 27151-09F70 | SHAFT, PROPELLER | ||
| 1 | 27153-62021 | BOOT, PROP SHAFT | 1 |
| 1 | 27200-19810 | JOINT SET, UNIVERSAL Includes Item(s) 50 | 1 |
| 1 | 09159-16003 | NUT, FR YOKE | 1 |
| 1 | 09160-16026 | WASHER, FR DRIVE OUTPUT YOKE 16X30X3 | 1 |
| 3 | 01550-10203 | BOLT, PROPELLER SHAFT MODEL K1 | 3 |
| 3 | 09103-10310 | BOLT, PROPELLER SHAFT MODEL K2 | 3 |
