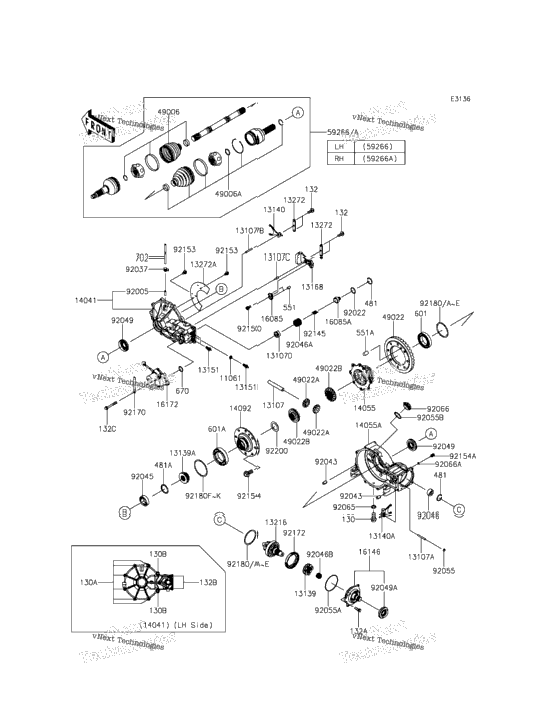

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11061-0805 | GASKET,10.5X16X3 | 1 |
| 1 | 13107-0758 | SHAFT,CROSS | 1 |
| 1 | 13107-0759 | SHAFT,6X55 | 1 |
| 1 | 13107-0768 | SHAFT,DIFF LOCK | 1 |
| 1 | 13107-0775 | SHAFT | 1 |
| 1 | 13107-0776 | SHAFT,ACTUATOR OUTPUT | 1 |
| 1 | 13139-0017 | SHIFTER | 1 |
| 1 | 13139-0018 | SHIFTER,DIFF LOCK | 1 |
| 1 | 13140-0070 | FORK-SHIFT | 1 |
| 1 | 13140-0635 | FORK-SHIFT | 1 |
| 3 | 13151-1086 | SWITCH-COMP | 3 |
| 1 | 13168-0731 | LEVER | 1 |
| 1 | 13216-0884 | GEAR-COMP,BEVEL,8T | 1 |
| 2 | 13272-0985 | PLATE | 2 |
| 1 | 13272-0986 | PLATE | 1 |
| 1 | 14041-0575 | COVER-COMP,LH | 1 |
| 1 | 14055-0602 | CASE-GEAR,CROSS SHAFT | 1 |
| 1 | 14055-0603 | CASE-GEAR,RH | 1 |
| 1 | 14092-1042 | COVER,CROSS SHAFT CASE | 1 |
| 1 | 16085-0605 | GEAR,65T | 1 |
| 1 | 16085-0614 | GEAR,13T | 1 |
| 1 | 16146-0740 | COVER-ASSY,INPUT SHAFT | 1 |
| 1 | 16172-0036 | ACTUATOR | 1 |
| 2 | 49006-0563 | BOOT,OUTSIDE | 2 |
| 2 | 49006-0578 | BOOT,INSIDE | 2 |
| 1 | 49022-0067 | GEAR-BEVEL,35T | 1 |
| 2 | 49022-0579 | GEAR-BEVEL,10T | 2 |
| 2 | 49022-0580 | GEAR-BEVEL,16T | 2 |
| 1 | 59266-0047 | JOINT-BALL,LH | 1 |
| 1 | 59266-0048 | JOINT-BALL,RH | 1 |
| 1 | 92005-1142 | FITTING | 1 |
| 1 | 92022-225 | WASHER,25.3X32X0.5 | 1 |
| 1 | 92037-1461 | CLAMP,TUBE | 1 |
| 2 | 92043-1263 | PIN,6.2X8X14 | 2 |
| 1 | 92045-1176 | BEARING-BALL,60/28 | 1 |
| 1 | 92046-0025 | BEARING-NEEDLE,AJ501907 | 1 |
| 1 | 92046-0050 | BEARING-NEEDLE | 1 |
| 1 | 92046-1234 | BEARING-NEEDLE | 1 |
| 2 | 92049-0089 | SEAL-OIL,28X60X7 | 2 |
| 1 | 92049-0160 | SEAL-OIL | 1 |
| 1 | 130BA1014 | BOLT-FLANGED,10X14 | 1 |
| 6 | 130CA0825 | BOLT-FLANGED,8X25 | 6 |
| 2 | 130CA1030 | BOLT-FLANGED,10X30 | 2 |
| 4 | 132BA0616 | BOLT-FLANGED-SMALL,6X16 | 4 |
| 4 | 132BA0618 | BOLT-FLANGED-SMALL,6X18 | 4 |
| 2 | 132BA0625 | BOLT-FLANGED-SMALL,6X25 | 2 |
| 3 | 132BA0645 | BOLT-FLANGED-SMALL,6X45 | 3 |
| 2 | 481J3200 | CIRCLIP-TYPE-C,32MM | 2 |
| 1 | 481J5200 | CIRCLIP-TYPE-C,52MM | 1 |
| 2 | 551A0410 | PIN-DOWEL,4X10 | 2 |
| 1 | 551A1016 | PIN-DOWEL,10X16 | 1 |
| 1 | 601B6010 | BEARING-BALL | 1 |
| 1 | 601B6011 | BEARING-BALL | 1 |
| 1 | 670D3022 | O RING | 1 |
| 1 | 92055-0756 | RING-O,7.5X1.5 | 1 |
| 1 | 92055-081 | RING-O | 1 |
| 1 | 92055-1281 | RING-O,35.8MM | 1 |
| 1 | 92065-058 | GASKET,10.5X16X1 | 1 |
| 1 | 92066-0744 | PLUG,36X7.5 | 1 |
| 1 | 92066-1272 | PLUG,6.2X3 | 1 |
| 1 | 92145-0975 | SPRING | 1 |
| 1 | 92150-1650 | BOLT,SOCKET,6X10 | 1 |
| 2 | 92153-0964 | BOLT,FLANGED-SMALL,6X8 | 2 |
| 8 | 92154-0550 | BOLT,FLANGED,10X23 | 8 |
| 1 | 92154-1070 | BOLT,SET,SOCKET,8X14 | 1 |
| 1 | 92170-1925 | CLAMP | 1 |
| 1 | 92172-0810 | SCREW,SET,85X12.5 | 1 |
| 1 | 92180-0301 | SHIM,70X80X0.15 | 1 |
| 1 | 92180-0302 | SHIM,70X80X0.2 | 1 |
| 1 | 92180-0303 | SHIM,70X80X0.5 | 1 |
| 1 | 92180-0304 | SHIM,70X80X0.8 | 1 |
| 1 | 92180-0305 | SHIM,70X80X1.0 | 1 |
| 1 | 92180-0306 | SHIM,70X80X1.2 | 1 |
| 1 | 92180-0307 | SHIM,80X90X0.15 | 1 |
| 1 | 92180-0308 | SHIM,80X90X0.2 | 1 |
| 1 | 92180-0309 | SHIM,80X90X0.5 | 1 |
| 1 | 92180-0310 | SHIM,80X90X0.8 | 1 |
| 1 | 92180-0311 | SHIM,80X90X1.0 | 1 |
| 1 | 92180-0312 | SHIM,80X90X1.2 | 1 |
| 1 | 92200-1077 | WASHER | 1 |
| 1 | 702A05930 | TUBE-RUBBER,5X8X930 | 1 |
