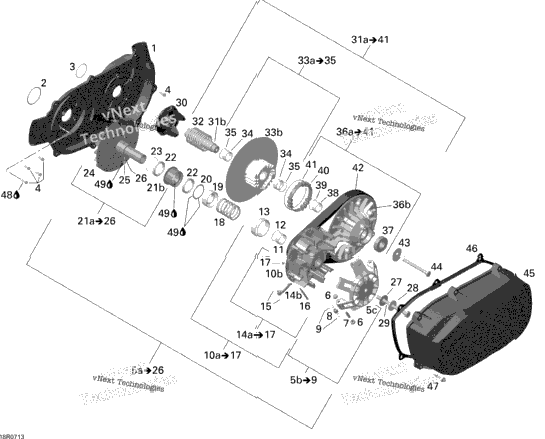

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420611400 | Guide | 1 |
| 1 | 420430400 | O-Ring | 1 |
| 1 | 420631085 | O-Ring | 1 |
| 9 | 420940566 | Socket Head Screw M6 X 20 | 9 |
| 420684670 | CVT Drive Ass'y Includes 5a to 26 | ||
| 1 | 420280157 | Governor Cup Ass'y Includes 5b to 9 | 1 |
| XXXX | Not Available As Spare Part - Governor Cup | ||
| 1 | 420281293 | Slider Shoe Set | 1 |
| 6 | 420233893 | Roller Sleeve | 6 |
| 6 | 420229995 | Roller | 6 |
| 12 | 420626230 | Thrust Washer | 12 |
| 420280317 | Outher Half Ass'y Includes 10a to 17 | ||
| XXXX | Not Available As Spare Part - Outer Half | ||
| XXXX | Not Available As Spare Part - Bushing | ||
| XXXX | Not Available As Spare Part - Retaining Ring | ||
| 1 | 420248495 | Centrifugal Lever Kit Includes 14a to 17 | 1 |
| XXXX | Not Available As Spare Part - Lever | ||
| XXXX | Not Available As Spare Part - Thrust Washer | ||
| XXXX | Not Available As Spare Part - Screw M5 | ||
| XXXX | Not Available As Spare Part - Lock Nut M5 | ||
| 1 | 420238610 | Compression Spring, Drive Pulley | 1 |
| 1 | 420627574 | Spring Seat | 1 |
| 1 | 420460430 | Friction Washer | 1 |
| 420280380 | Inner Half Ass'y Includes 21a to 26 | ||
| 1 | 420257195 | Drive Pulley Clutch | 1 |
| 2 | 420632372 | Ball Bearing | 2 |
| 1 | 420245950 | Retaining Ring | 1 |
| XXXX | Not Available As Spare Part - Inner Half | ||
| 2 | 420229576 | Spring Sleeve | 2 |
| 2 | 420239133 | Spring | 2 |
| 1 | 420627920 | Thrust Washer | 1 |
| 1 | 420627765 | Spring Washer | 1 |
| 1 | 420641852 | Hex. Screw M12 X 135 | 1 |
| 1 | 420280198 | Came V-810 | 1 |
| 420684672 | CVT Driven Pulley Ass'y Includes 31a to 41 | ||
| 1 | 420220914 | Driven Pulley Shaft | 1 |
| 1 | 420238176 | Compression Spring | 1 |
| 1 | 420248233 | Inner Half Ass'y Includes 33a to 35 | 1 |
| XXXX | Not Available As Spare Part - Sliding Pulley | ||
| 1 | 420280173 | Outer Half Pulley Ass'y Includes 36a to 41 | 1 |
| XXXX | Not Available As Spare Part - Outer Half Pulley | ||
| 1 | 420932426 | Ball Bearing 6205 | 1 |
| 1 | 420660121 | Torque Gear | 1 |
| 1 | 420245910 | Retaining Ring | 1 |
| 1 | 715900030 | V-Belt | 1 |
| 1 | 420627590 | Thrust Washer | 1 |
| 1 | 420941909 | Hex. Screw M10 X 110 | 1 |
| 1 | 420611390 | Variator Cover | 1 |
| 1 | 420430120 | Gasket | 1 |
| 7 | 420440567 | Hex. Distance Screw M6 X 30.5 | 7 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 293550021 | Isoflex Grease, TOPAS NB52, 50 g | 1 |
