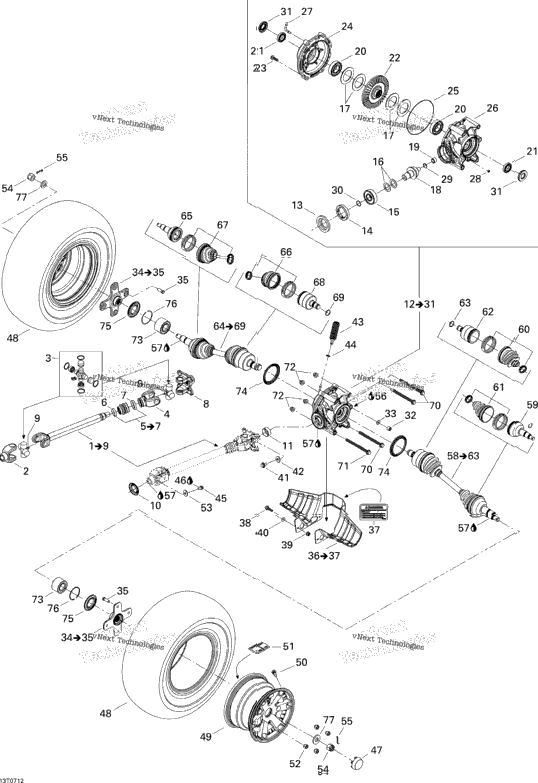

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705500863 | Drive Axle Ass'y Includes 1 to 9 | ||
| XXXX | Not Available As Spare Part - Fix Joint | ||
| 2 | 703000022 | Unit Pack Kit | 2 |
| XXXX | Not Available As Spare Part - Sliding Joint | ||
| 703500255 | Rubber Boot Kit | ||
| 705400148 | Collar | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 705500526 | DISC JOINT | ||
| 1 | 705500841 | GREASE FITTING | 1 |
| 1 | 705500678 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 705500822 | Differential Includes 12 to 31 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500842 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500548 | Differential Shim Kit | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500749 | Ball Bearing | 2 |
| 705500750 | BALL BEARING | ||
| 705500775 | GEAR, 36 TOOTH | ||
| 4 | 705500264 | Screw | 4 |
| 1 | 705500697 | REAR DIFFERENTIAL COVER | 1 |
| 1 | 705500265 | Seal | 1 |
| 705500843 | Rear Cover | ||
| 1 | 705500262 | Vent Valve | 1 |
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500751 | Oil Seal | 2 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 705500596 | WHEEL HUB ASS'Y Includes 34 to 35 | ||
| 4 | 250300020 | Wheel Stud | 4 |
| 1 | 703500289 | Protector Kit Includes 36 to 37 | 1 |
| 704900009 | WARNING DECAL, TRAILER | ||
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 391302000 | Flat Washer | 4 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 705400552 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 250000247 | Hex. Flange Screw M10 X 16 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 705400520 | WHEEL CAP | ||
| 1 | 705500606 | Rear Tire | 1 |
| 1 | 705500833 | REAR RIM, BLACK | 1 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 1 | 705500824 | ADHESIVE WEIGHT, 1/2 OZ | 1 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 | 8 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 705500726 | LH CV JOINT Includes 58 to 63 | 1 |
| 1 | 705500728 | CV JOINT | 1 |
| 1 | 705500730 | Differential Boot Kit | 1 |
| 1 | 705500731 | Wheel Boot Kit | 1 |
| 1 | 705500729 | PLUNGING JOINT | 1 |
| 1 | 705500845 | CIRCLIP | 1 |
| 1 | 705500727 | RH CV JOINT Includes 64 to 69 | 1 |
| 3 | 230603046 | Hex. Flange Screw, M10 X 130 | 3 |
| 1 | 230603546 | Hex. Flange Screw M10 X 135 | 1 |
| 4 | 233201416 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 705500725 | Wear Sleve | 2 |
| 2 | 705500564 | Wear Sleeve | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200049 | Spring Washer | 2 |
