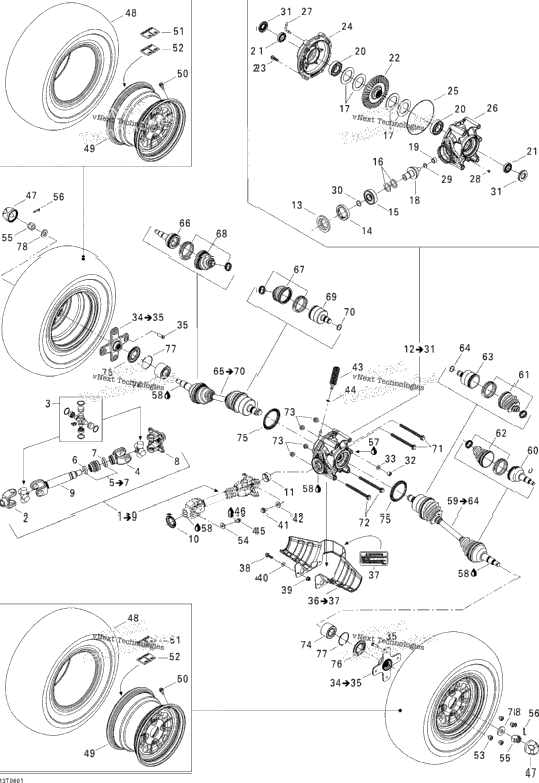

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705500525 | Drive Axle Ass'y Includes 1 to 9 | 1 |
| 1 | 705500371 | Fix Joint | 1 |
| XXXX | Not Available As Spare Part - Unit Pack Kit | ||
| 705500528 | SLIDING JOINT | ||
| 703500255 | Rubber Boot Kit Includes 5 to 7 | ||
| 705400148 | Collar | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 705500526 | DISC JOINT | ||
| XXXX | Not Available As Spare Part - Shaft | ||
| 1 | 705500678 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 705500774 | Rear Differential Ass'y Includes 12 to 31 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500266 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500548 | Differential Shim Kit | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500749 | Ball Bearing | 2 |
| 705500750 | BALL BEARING | ||
| 705500775 | GEAR, 36 TOOTH | ||
| 4 | 705500264 | Screw | 4 |
| 1 | 705500697 | REAR DIFFERENTIAL COVER | 1 |
| 1 | 705500265 | Seal | 1 |
| 705500699 | Rear Differential Housing | ||
| 1 | 705500262 | Vent Valve | 1 |
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500751 | Oil Seal | 2 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 705500596 | WHEEL HUB ASS'Y Includes 34 to 35 | ||
| 4 | 250300020 | Wheel Stud | 4 |
| 1 | 703500289 | Protector Kit Includes 36 to 37 | 1 |
| 704900009 | WARNING DECAL, TRAILER | ||
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 391302000 | Flat Washer | 4 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 250000247 | Hex. Flange Screw M10 X 16 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 705400012 | WHEEL CAP | ||
| 2 | 705500606 | Rear Tire XT | 2 |
| 705500792 | REAR RIM, BLACK | ||
| 2 | 705500686 | REAR RIM, GRAY | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705501430 | ADHESIVE WEIGHT | 1 |
| 1 | 705500824 | ADHESIVE WEIGHT, 1/2 OZ | 1 |
| 8 | 250100042 | Steel Wheel Nut | 8 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 705500726 | LH CV JOINT Includes 59 to 64 | 1 |
| 1 | 705500728 | CV JOINT | 1 |
| 1 | 705500730 | Differential Boot Kit | 1 |
| 1 | 705500731 | Wheel Boot Kit | 1 |
| 1 | 705500729 | PLUNGING JOINT | 1 |
| 1 | 705400416 | Circlip | 1 |
| 1 | 705500727 | RH CV JOINT Includes 65 to 70 | 1 |
| 2 | 230603046 | Hex. Flange Screw, M10 X 130 | 2 |
| 2 | 230603546 | Hex. Flange Screw M10 X 135 | 2 |
| 4 | 233201416 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 705500725 | Wear Sleve | 2 |
| 2 | 705500564 | Wear Sleeve | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200049 | Spring Washer | 2 |
