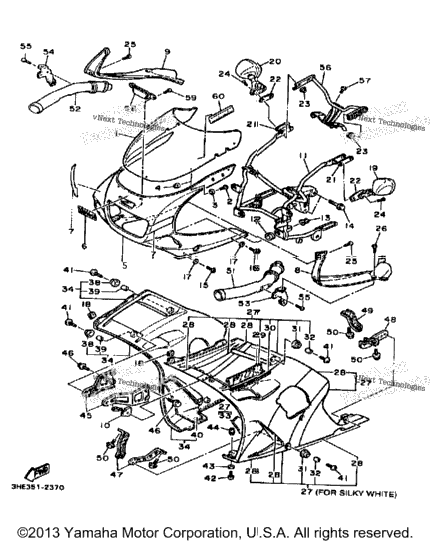

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3HE-28381-50-00 | Windshield | ||
| 6 | 90149-05273-00 | Screw | 6 |
| 6 | 3HX-28215-00-00 | Washer, Special | 6 |
| 6 | 95706-05500-00 | Nut, Flange | 6 |
| 3HE-Y283G-90-0X | Body, Front Upper 1 UR SILKY WHITE/VIVID RED | ||
| 3HE-2835G-50-KM | Body, Front Upper 1 UR NEW BLACK BLUE | ||
| 1 | 99236-00020-00 | Emblem, Yamaha UR FOR NEW BLACK BLUE | 1 |
| 1 | 99231-00020-00 | . Emblem, Yamaha UR FOR SILKY WHITE | 1 |
| 3HH-28390-30-00 | Graphic Set, Cowling UR FOR NEW BLACK BLUE | ||
| 3HE-28390-70-00 | . Graphic Set, Cowling UR FOR SILKY WHITE | ||
| 3HE-2835U-50-00 | Panel 1 | ||
| 3HE-2835V-50-00 | Panel 2 | ||
| 3HE-21596-00-00 | Holder | ||
| 3HE-28356-50-00 | Stay 1 | ||
| 4 | 90480-14229-00 | Grommet | 4 |
| 4 | 90179-06500-00 | Nut | 4 |
| 2 | 90105-08652-00 | Bolt, Washer Based | 2 |
| 2 | 90110-05201-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90149-05299-00 | Screw | 2 |
| 4 | 90202-05180-00 | Washer, Plate | 4 |
| 2 | 90183-05024-00 | Nut, Spring | 2 |
| 1 | 3HE-26280-00-00 | Rear View Mirror Assembly (Left UR WHITE | 1 |
| 3HE-26280-10-00 | Rear View Mirror Assembly (Left UR BLACK | ||
| 1 | 3HE-26290-00-00 | Rear View Mirror Assembly (Righ UR WHITE | 1 |
| 3HE-26290-10-00 | Rear View Mirror Assembly (Righ UR BLACK | ||
| 2 | 3CV-26298-00-00 | Plate, Mirror Fitting 1 | 2 |
| 2 | 3CV-26299-00-00 | Plate, Mirror Fitting | 2 |
| 4 | 90176-06055-00 | Nut, Crown | 4 |
| 4 | 98706-06030-00 | Screw, Flat Head | 4 |
| 4 | 90167-05041-00 | Screw, Tapping | 4 |
| 3EN-Y283J-L1-GE | Body, Front Lower 1 UR SILKY WHITE | ||
| 3EN-Y283J-N1-KM | Body, Front Lower 1 UR NEW BLACK BLUE | ||
| 3HE-28301-71-00 | . Graphic Set, Lower Cover 1 UR FOR SILKY WHITE | ||
| 3HH-28301-30-00 | . Grahic Set, Lower Cover 1 UR FOR NEW BLACK BLUE | ||
| 3HE-28315-70-00 | . Emblem UR FOR SILKY WHITE | ||
| 3HH-28315-30-00 | . Emblem UR FOR NEW BLACK BLUE | ||
| 3HE-28328-71-00 | . Emblem FOR SILKY WHITE | ||
| 4 | 90480-13398-00 | . Grommet | 4 |
| 4 | 90387-067K6-00 | . Collar | 4 |
| 3HE-2848K-00-00 | . Seat 2 | ||
| 3EN-Y283K-L0-GE | Body, Front Lower 2 UR SILKY WHITE | ||
| 3EN-Y283K-N0-KM | Body, Front Lower 2 UR NEW BLACK BLUE | ||
| 3HE-28303-71-00 | . Graphic Set, Lower Cover 2 UR FOR SILKY WHITE | ||
| 3HH-28303-30-00 | . Graphic Set, Lower Cover 2 UR FOR NEW BLACK BLUE | ||
| 3HE-28328-71-00 | . Emblem | ||
| 3HE-2848L-00-00 | . Seat 3 | ||
| 8 | 90110-06200-00 | Bolt, Hexagon Socket Head | 8 |
| 2 | 90202-05180-00 | Washer, Plate | 2 |
| 2 | 90179-05523-00 | Nut | 2 |
| 3HE-2831U-00-00 | Stay, Side 1 | ||
| 2 | 91026-06012-00 | Bolt, Flange (1Vj) | 2 |
| 1WG-2836A-00-00 | Bracket 1 | ||
| 3EN-2836A-01-00 | Bracket 1 | ||
| 1WG-2836E-00-00 | Bracket 2 | ||
| 4 | 91026-06010-00 | Bolt | 4 |
| 3HE-2838N-50-00 | Duct 1 | ||
| 3HE-2838R-50-00 | Duct 2 | ||
| 3HE-28413-50-00 | Stay, Front Bumper 1 | ||
| 3HE-28414-50-00 | Stay, Front Bumper 2 | ||
| 4 | 97706-40512-00 | Screw, Tapping | 4 |
| 3HE-2831W-50-00 | Stay, Mirror 1 | ||
| 2 | 91316-06016-00 | Bolt | 2 |
| 3LK-84378-00-KM | Cap UR NEW BLACK BLUE | ||
| 3LK-84378-00-P1 | Cap UR VIVID RED | ||
| 2 | 90167-05041-00 | Screw, Tapping | 2 |
| 3JJ-2835Y-00-00 | Label, Caution |
