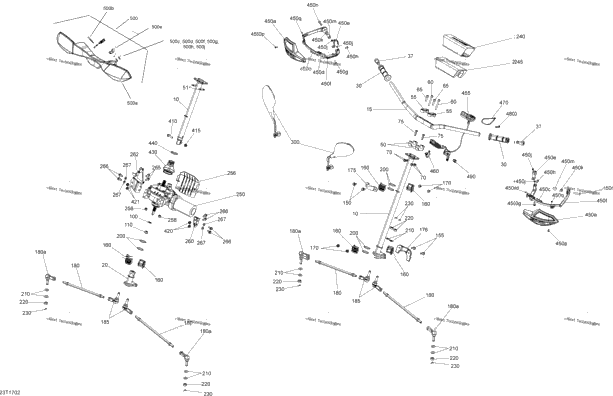

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709401008 | Main Tube Model Without DPS | 1 |
| 1 | 709401843 | Main Tube Model With DPS | 1 |
| 1 | 709400513 | Aluminum Handle Bar Package XTP | 1 |
| 1 | 709401240 | Black, Handlebar Package STD, DPS, Pro | 1 |
| 1 | 709401240 | Black, Handlebar Package XT, Hunter, LTD | 1 |
| 1 | 709401240 | Black, Handlebar Package XMR 650, XMR 850 | 1 |
| 1 | 709401643 | Red, Handle Bar Package XMR Red/White/Black | 1 |
| 1 | 709400513 | Aluminum Handle Bar Package XMR Black | 1 |
| 1 | 703500812 | Pitman Kit Package XMR | 1 |
| 1 | 703500785 | Pitman Kit Model With DPS Except XMR | 1 |
| 2 | 709400443 | Grey, Handle Grip Package LTD | 2 |
| 2 | 709400493 | Handle Grip Except Package LTD | 2 |
| 2 | 709400449 | End Piece Except Package XTP, XMR 1000R | 2 |
| 2 | 709400497 | Steering Support Package XTP, XMR 1000R | 2 |
| 2 | 709401799 | Steering Support Except Package XTP, XMR 1000R | 2 |
| 2 | 709400509 | Stiffner Except Package XTP, XMR 1000R | 2 |
| 2 | 709400496 | Support Package XTP, XMR 1000R | 2 |
| 2 | 205086060 | Socket Head Screw M8 X 60 Package XTP, XMR 1000R | 2 |
| 4 | 207086046 | Hex. Screw M8 X 60 Except Package XTP, XMR 1000R | 4 |
| 2 | 205083060 | Socket Screw M8 X 30 Package XTP, XMR 1000R | 2 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 2 | 207183060 | Hex. Screw M8 X 30 Package XTP, XMR 1000R | 2 |
| 1 | 250200086 | Flat Washer Model With DPS | 1 |
| 1 | 250000047 | Hex. Flange Elastic Nut M12 Model With DPS | 1 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 4 | 709400783 | Spherical Half Bushing | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 709400827 | Upper Column Attachment | 1 |
| 1 | 709401428 | Column Attachment | 1 |
| 2 | 703500922 | Tie Rod Ass'y Except Package XMR | 2 |
| 2 | 703500923 | Tie Rod Ass'y Package XMR | 2 |
| 1 | 709401837 | Ball Joint, LH Thread | 1 |
| 2 | 709401839 | Ball Joint, RH Thread | 2 |
| 4 | 293300068 | O-Ring | 4 |
| 8 | 250200086 | Flat Washer | 8 |
| 4 | 250100099 | Nut M12 | 4 |
| 4 | 211400013 | Cotter Pin | 4 |
| 1 | 709400939 | Cover Package STD, DPS, Pro | 1 |
| 1 | 709400939 | Cover Package XMR 650, XMR 850 | 1 |
| 1 | 709401511 | Cover Package XMR Black | 1 |
| 1 | 709401511 | Cover Package XTP | 1 |
| 1 | 709401652 | Cover Package XMR Red/White/Black | 1 |
| 1 | 709400422 | Foam Package XTP, XMR 1000R | 1 |
| 1 | 709401608 | Power Steering Model With DPS | 1 |
| 1 | 709401005 | HEAT DEFLECTOR Model With DPS | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 Model With DPS | 2 |
| 1 | 709400848 | Power Steering Module Bracket Model With DPS | 1 |
| 1 | 709400994 | RH STEERING BRACKET Model With DPS | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip Model With DPS | 2 |
| 6 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip Model With DPS | 6 |
| 4 | 234281474 | Conical Spring Washer M8 Model With DPS | 4 |
| 1 | 709400406 | LH Mirror Model Europe, T3 | 1 |
| 1 | 709400407 | RH Mirror Model Europe, T3 | 1 |
| 1 | 207683544 | Hex. Flange Screw M8 X 35 Model With DPS | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 Model With DPS | 1 |
| 1 | 709400674 | Bellows Model With DPS | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Model With DPS | 1 |
| 1 | 703100565 | Deflector Kit Package XTP | 1 |
| 1 | 703100585 | Deflector Kit Package XMR 650, XMR 850, International | 1 |
| 1 | 703100585 | Deflector Kit Package XMR Red/White/Black | 1 |
| 1 | 709401620 | Orange, RH Deflector Package XTP | 1 |
| 1 | 709401621 | Orange, LH Deflector Package XTP | 1 |
| 1 | 709401668 | Red, LH Deflector Package XMR 650, XMR 850, International | 1 |
| 1 | 709401667 | Red, RH Deflector Package XMR 650, XMR 850, International | 1 |
| 1 | 709401667 | Red, RH Deflector Package XMR Red/White/Black | 1 |
| 1 | 709401668 | Red, LH Deflector Package XMR Red/White/Black | 1 |
| 2 | 205444056 | Socket Head Screw M4 X 40 | 2 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 2 | 715001378 | Air Deflector Support Kit | 2 |
| 1 | 715001378 | Air Deflector Support Kit | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 709400161 | Small Bracket | 2 |
| 2 | 709400162 | Large Bracket | 2 |
| 2 | 205384034 | Socket Head Screw | 2 |
| 2 | 250000742 | Torx Screw M5 X 14 | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 1 | 710002545 | GPS Support Package LTD | 1 |
| 1 | 293750058 | 2-Pieces Fixing Tie Rap for Edges Package LTD | 1 |
| 1 | 293750008 | Tie Wrap 368 mm Package LTD | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Package LTD | 1 |
| 1 | 293750009 | Tie-Rap 173 mm Package LTD | 1 |
| 1 | 703100352 | Handle Guard Ass'y, XT Package XT, Hunter | 1 |
| 1 | 703100357 | Handle Guard Ass'y, LTD Package LTD | 1 |
| 1 | 709400822 | Handle Bar Protector Package XT, Hunter | 1 |
| 1 | 709401013 | Handle Bar PRO Package LTD | 1 |
| 1 | 704902966 | DPS Decal Package XT, Hunter | 1 |
| 1 | 704902966 | DPS Decal Package LTD | 1 |
| 4 | 241142560 | Hex. Flange Screw K40 X 25 | 4 |
| 4 | 211200035 | Flat Washer | 4 |
| 2 | 517303264 | U-Clamp | 2 |
| 2 | 709400781 | Rubber Bumper Package LTD | 2 |
| 4 | 250000405 | TORX SCREW M4 X 20 Package LTD | 4 |
| 4 | 234042600 | Flat Washer 4 mm, Stainless Package LTD | 4 |
| 4 | 232541414 | Elastic Stop Nut M4 Package LTD | 4 |
