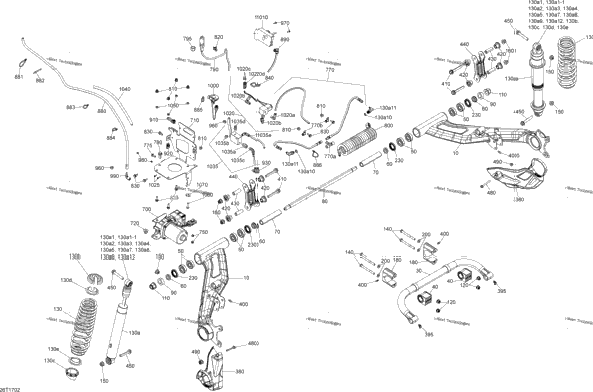

Каталог / ATV / Can-Am / 2017 / Outlander - 1000R EFI - XMR Package / Rear Suspension - All Models

Список запчастей

№	Артикул	Название	Кол-во
1	706002414	Black LH Swing Arm Except Package XMR Red/White/Black	1
1	706002415	Black RH Swing Arm Except Package XMR Red/White/Black	1
1	706002634	Red LH Swing Arm Package XMR Red/White/Black	1
1	706002635	RH Swing Arm - Call Your Local BRP Dealership Package XMR Red/White/Black	1
1	706000988	Swaybar	1
2	706002246	Cushion	2
8	706000826	Ball Bearing	8
4	706001282	Spacer	4
2	706002259	Spacer	2
1	706001664	Axial Pivot M16	1
2	250200112	Flat Washer M17	2
2	233211466	Hex. Flange Elastic Nut M16	2
4	233281434	Hex. Flange Elastic Nut M8	4
2	706000958	Rear Shock Outlander STD, DPS	2
2	706000958	Rear Shock Outlander XT	2
2	706000958	Rear Shock Package Pro, Hunter	2
2	706000958	Rear Shock Package XMR 650	2
2	706000970	Rear Shock Outlander Max DPS	2
2	706000970	Rear Shock Outlander Max XT	2
2	706002597	Rear Shock Package XTP	2
2	706002339	Rear Shock Package XMR 850	2
2	706002601	Rear Shock Package XMR 1000	2
2	706000930	Rear Shock Package LTD	2
2	715900336	Ball Journal Package XMR 1000, XTP	2
2	715900484	SPHERICAL BEARING Package XMR 1000	2
4	715900209	O-Ring Bushing Package XTP	4
4	715900209	O-Ring Bushing Package XMR 1000	4
4	715900252	Retaining Ring Package XTP	4
4	715900252	Retaining Ring Package XMR 1000	4
1	706201585	Bushing Sleeve Package XMR 850	1
1	706201585	Bushing Sleeve Package XTP	1
1	706201586	Bushing Sleeve Package XMR 850	1
1	706201586	Bushing Sleeve Package XTP	1
2	715900210	Interior Bushing Package XMR 1000	2
2	715900210	Interior Bushing Package XTP	2
2	706201584	Bushing Package XMR 850	2
1	706201648	Bushing Package XTP	1
2	715900331	Protector Package XMR 1000, XTP	2
8	715900209	O-Ring Bushing Package LTD, XMR 1000R	8
2	706001200	Elbow 90° Package LTD	2
8	715900210	Interior Bushing Package LTD	8
1	706200881	Spring Stopper Except Package XTP, XMR 850, XMR 1000	1
1	505073625	Adjustment Cam Except Package XTP, XMR 850, XMR 1000	1
1	706200785	Cap Except Package XTP, XMR 850, XMR 1000	1
1	503187500	Spring Guide Except Package XTP, XMR 850, XMR 1000	1
1	706000836	Black Rear Spring Package LTD	1
1	706002585	Black Spring Package Pro, Hunter	1
1	706002427	Black, Spring Outlander Max DPS, XT	1
1	706002464	Black Spring Outlander STD, DPS, XT	1
1	706002468	SPRING COMPRESSION B-160 PAINTED Package XTP	1
1	706002468	SPRING COMPRESSION B-160 PAINTED Package XMR 1000 Black	1
	706002473	SPRING_COMPRESSION B-101A PAINTED Package XMR 1000 Red/White/Black
	706002473	SPRING_COMPRESSION B-101A PAINTED Package XMR 850
1	706002494	Red Spring Package XMR 650	1
4	207088587	Hex,. Screw M8 X 85	4
4	233201416	Hex. Flange Elastic Nut M10	4
4	233201414	Hex. Flange Elastic Nut M10	4
2	706001099	Bushing Holder	2
4	234081430	Flat Washer M8	4
4	293200144	Seal	4
1	706002482	LH Protector	1
1	706002483	RH Protector	1
2	293550056	Grease Fitting 90°	2
4	250000315	Grease Fitting	4
4	207606536	Hex. Flange Screw M10 X 65	4
8	706200181	Bushing	8
4	706201587	Sleeve	4
2	706001020	Sway Bar Linkage	2
4	207606046	Hex. Flange Screw M10 X 6	4
6	250000712	Torx Screw M6 X 20	6
6	233261494	Hex. Flange Elastic Nut M6	6
1	706000964	Compressor Ass'y Package LTD	1
1	706002114	Bracket Package LTD	1
1	233201414	Hex. Flange Elastic Nut M10 Package LTD	1
2	233251434	Flange Elastic Nut M5 Package LTD	2
1	706002020	Rear Shock Distributor Package LTD	1
1	706000946	T Fitting Package LTD	1
2	705600459	Clamp Package LTD	2
1	210261650	Hex. Flange Screw M6 X 16 Package LTD	1
1	250000562	Hex Flange Screw M10 X 25 Package LTD	1
1	706001827	Inflater Ass'y Package LTD	1
1	250100124	Hex. Nut With Nylon 1/2" X 20 Package LTD	1
1	706000808	Auxiliary Hose Package LTD	1
7	233261414	Hex. Flange Elastic Nut M6 x 1.0 Package LTD	7
1	293750009	Tie-Rap 173 mm Package LTD	1
5	207661644	Hex. Flange Screw M6 X 16 Package LTD	5
3	207662044	Hex. Flange Screw M6 X 20 Package LTD	3
1	293750008	Tie Wrap 368 mm Package LTD	1
1	219704410	Polyurethane Hose 10000Mm Long Package LTD	1
1	293750002	Tie Wrap 142 mm Package LTD	1
1	706002015	Hose Ass'y Package LTD	1
1	710002899	Clip Tie-Rap Package LTD	1
1	250000048	Panel Nut M6 X 1.0 Package LTD	1
1	706000928	Elbow 90° Package LTD	1
2	293650207	Clamp Oetiker Package LTD	2
	207141244	HEX. SCREW M4 X 12 Package LTD
2	232541414	Elastic Stop Nut M4 Package LTD	2
1	706001405	Elbow 90° Package LTD	1
1	710001825	Air Suspension Sensor Package LTD	1
1	710004405	Calibrated Module Package LTD	1
1	706002014	Pressure Collector Ass'y Package LTD	1
1	706000869	Connector Package LTD	1
2	706000928	Elbow 90° Package LTD	2
2	515175232	Male Terminal Package LTD	2
1	515175654	Male Terminal Housing, 2 Circuits Package LTD	1
2	205041254	Socket Head Screw M4 X 12 Package LTD	2
1	706002012	Hose Ass'y Package LTD	1
1	706000860	Check Valve Package LTD	1
1	293650207	Clamp Oetiker Package LTD	1
1	706000872	Elbow 90° Package LTD	1
1	504153074	Tube Protector Package LTD	1
4	232061414	Hex. Nut M6 Package LTD	4
1	207162544	Hex. Screw M6 X 25 Package LTD	1
1	224061121	Flat Washer Package LTD	1
