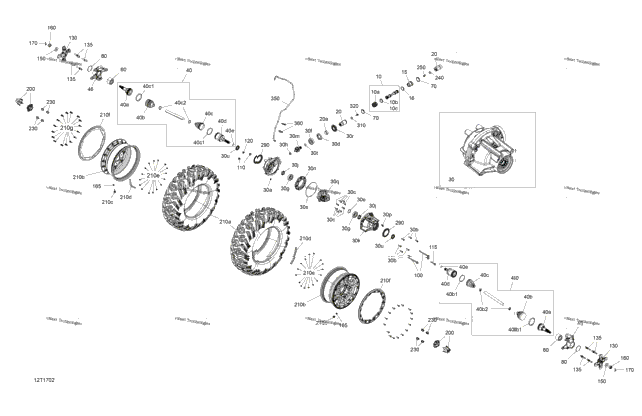

Каталог / ATV / Can-Am / 2017 / Outlander - 1000R EFI - XMR Package / Drive System, Front - All Models

Список запчастей

№	Артикул	Название	Кол-во
1	705400913	Propeller Shaft Includes 10 to 10c	1
1	715900118	Rubber Boot	1
1	509000045	Oetiker Gear Clamp 36.1MM	1
1	293650138	Oetiker Gear Clamp 44.0MM	1
1	705401093	Rubber Boot	1
1	293650199	Oetiker Gear Clamp	1
2	703500678	Front Bushing Shaft Kit Includes 20 to 20a	2
1	705400036	Wear Ring	1
1	703500907	Front Differential Model Without DPS	1
1	703500908	Front Differential Model With DPS	1
2	705501885	Drain Plug	2
6	705401601	Screw	6
8	705401602	Screw	8
1	705401603	Nut	1
1	705401604	Shim	1
1	705401605	Ball Bearing	1
2	705401606	Ball Bearing	2
1	705401607	Needle Bearing	1
2	705401608	Ball Bearing	2
1	705401610	Front Cover	1
1	705401791	Pinion 10 Teeth	1
1	705401612	Gear 36 Teeth	1
1	705401613	Vent Valve	1
1	705401614	Differential Model Without DPS	1
1	705401506	Differential Model With DPS	1
1	705401615	Oil Seal	1
1	705401616	Seal	1
1	705401617	O'Ring	1
2	705401618	Gasket	2
1	705401769	Shim	1
1	705401770	Shim	1
1	250200014	Flat Washer M10	1
1	250000847	Hex. Flange Screw M10 X 20	1
1	705401948	RH Homocinetic Joint Package XMR	1
1	705401947	LH Homocinetic Joint Package XMR	1
1	705401944	RH Homocinetic Joint Except Package XMR	1
1	705401943	LH Homocinetic Joint Except Package XMR	1
1	705401407	CV Joint Package XMR	1
2	705401344	CV Joint Except Package XMR	2
1	705401354	Boot Kit, Wheel Side Package XMR	1
1	705401345	Boot Kit, Wheel Side Except Package XMR	1
1	715900260	Oetiker Clamp, Large Package XMR	1
1	715900282	Oetiker Clamp Except Package XMR	1
1	715900261	Oetiker Clamp, Small Package XMR	1
1	715900283	Oetiker Clamp, Small Except Package XMR	1
1	705401355	Boot Kit, Différential Side Package XMR	1
1	705401346	Boot Kit, Differential Side Except Package XMR	1
1	715900262	Oetiker Clamp, Large Package XMR	1
1	715900284	Oetiker Clamp, Large Except Package XMR	1
1	715900261	Oetiker Clamp, Small Except Package XMR	1
1	715900395	RH Plunging CV Joint Package XMR	1
1	715900396	LH Plunging CV Joint Package XMR	1
1	705401348	RH Plunging Joint Except Package XMR	1
1	705401350	LH Plunging Joint Except Package XMR	1
1	705401349	Circlip Joint	1
1	705401290	LH Knuckle	1
1	705401291	RH Knuckle	1
2	293350040	Cone Bearing	2
2	293650138	Oetiker Gear Clamp 44.0MM	2
2	293370019	Circlip	2
2	230602546	Hex. Flange Screw M10 X 125	2
2	233201416	Hex. Flange Elastic Nut M10	2
1	207685544	Hex. Flange Screw M8 X 55	1
1	233281414	Hex. Flange Elastic Nut M8	1
2	705501900	Wheel Hub	2
8	250300048	Wheel Stud Tightening Torque: See Bulletin ATV 2020-4	8
2	250200049	Spring Washer	2
2	250100047	Hex. Castellated Nut M18	2
2	293000110	Valve Cap	2
2	250400071	Cotter Pin	2
2	705400928	Wheel Cap Except Package XMR 850, XMR 1000	2
2	705401541	Wheel Cap Package XMR 850, XMR 1000	2
2	705401331	Tire Package STD	2
2	705401332	Front Tire Package DPS Europe	2
	705401919	Front Tire Package DPS North America
2	705401331	Tire Package DPS T3	2
2	705401334	Front Tire Package LTD, XTP, Europe	2
2	705401906	Tire Package LTD, XTP, Except Europe	2
2	705401736	Tire Package Pro, Hunter	2
	705401391	TIRE_28X8R12 F Package XMR 650
	705400962	TIRE_30X9R14 Package XMR 850, XMR 1000
2	705401906	Tire Package XT	2
2	705401333	Tire Package XTP T3	2
2	705401420	Black, Rim Package LTD Europe	2
2	705401371	Black, Rim Package STD	2
2	705401853	Black Rim Package LTD, Except Europe	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package Pro, Hunter	2
2	705401420	Black, Rim Package XMR 650	2
2	705401852	Black Rim Package XT	2
2	705401678	Black, Rim Package XTP Europe, T3	2
2	705401594	Black Rim Package XTP Except Europe	2
2	705401848	Front Rim Package XMR 850, XMR 1000	2
2	705401852	Black Rim Package DPS Europe, T3	2
2	705401852	Black Rim Package DPS North America	2
	705401007	Rim Valve
1	219704465	1/2 Oz Weight	1
32	293450317	Insert Package XTP	32
2	705401840	Black Reinforcement Disc Package XTP Except Europe	2
2	705401867	Black, Reinforcement Disc Package XTP Europe, T3	2
32	250000787	Hex. Flange Screw M6 X 25 Package XTP	32
8	250100042	Steel Wheel Nut Package STD	8
8	250100100	Black Wheel Nut M10 X 1.25 Except Package STD, DPS	8
8	250100082	Chrome Wheel Nut M10 X 1.25 Package DPS	8
1	250200102	Flat Washer M12	1
1	250000540	Hex Flange Screw M12 X 20	1
2	705400780	Wear Sleeve Except Package XMR	2
1	219704410	Polyurethane Hose 10000Mm Long	1
2	414115200	Tie-Rap 180 mm	2
