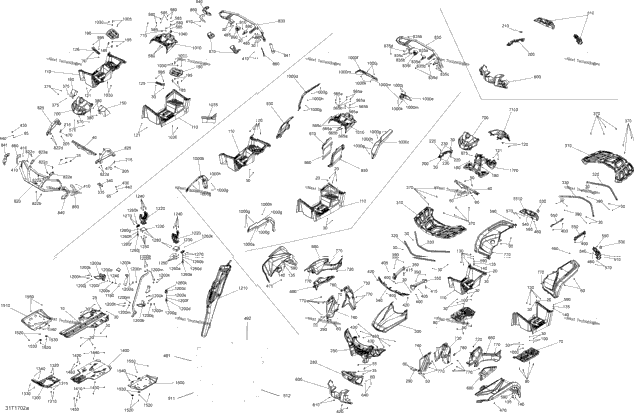

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715002374 | Protective Plate Kit Package Hunter | 1 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 207762044 | Carriage Bolt M6 X 20 Except Package Hunter | 1 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 1 | 233201434 | Hex. Flange Elastic Nut M10 | 1 |
| 1 | 705006220 | Front Bumper Center Support Package XMR | 1 |
| 1 | 705006812 | Cargo Rack Center Support Except Package XMR | 1 |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 | 8 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 12 | 233281434 | Hex. Flange Elastic Nut M8 | 12 |
| 2 | 233281464 | Elastic Flange Nut M8 Package XMR | 2 |
| 1 | 705005254 | LH. Footboard | 1 |
| 1 | 705005253 | RH. Footboard | 1 |
| 8 | 207763554 | Carriage Bolt M6 X 35 | 8 |
| 8 | 234062410 | Flat Washer 6 mm | 8 |
| 1 | 705007040 | LH Step Outlander | 1 |
| 1 | 705007039 | RH Step Outlander | 1 |
| 1 | 705003525 | LH Footrest Max Outlander Max | 1 |
| 1 | 705003521 | RH Footrest Max Outlander Max | 1 |
| 1 | 705007040 | LH Step Package XMR 650 | 1 |
| 1 | 705007039 | RH Step Package XMR 650 | 1 |
| 1 | 705009810 | LH Footrest Package XMR, Engine 850 | 1 |
| 1 | 705009811 | RH Footrest Package XMR, Engine 850 | 1 |
| 1 | 705005978 | LH Footboard Package XMR, Engine 1000R | 1 |
| 1 | 705005977 | RH Footboard Package XMR, Engine 1000R | 1 |
| 8 | 250000720 | Torx Screw K50 X 16 Package XMR | 8 |
| 1 | 705004352 | LH Footrest Package XMR | 1 |
| 1 | 705005395 | RH Footrest Package XMR | 1 |
| 9 | 207661654 | Hex. Flange Screw M6 X 16 | 9 |
| 4 | 224061201 | Flat Washer | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 1 | 705006134 | LH Air Deflector Package XMR, PRO | 1 |
| 1 | 705006135 | RH Air Deflector Package XMR, PRO | 1 |
| 1 | 715002245 | Dash Support Kit | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 4 | 705006819 | Coupling Nut, Large Package XMR, Engine 1000R | 4 |
| 2 | 705011610 | Footrest Package XMR, Engine 1000R | 2 |
| 4 | 705006818 | Coupling Nut, Short Package XMR, Engine 1000R | 4 |
| 1 | 715003977 | Shifter Gate Kit Engine 650 North America | 1 |
| 1 | 715003977 | Shifter Gate Kit Engine 650 International Except Package PRO | 1 |
| 1 | 715003977 | Shifter Gate Kit Engine 850 Except Europe | 1 |
| 1 | 715003977 | Shifter Gate Kit Engine 1000R International Except Package XMR | 1 |
| 1 | 715003977 | Shifter Gate Kit Engine 1000R North America Except Package XMR | 1 |
| 1 | 715003979 | Indicator Model Europe Except Package PRO | 1 |
| 1 | 715004087 | Indicator Package PRO T3 | 1 |
| 1 | 715004087 | Indicator Package PRO Europe | 1 |
| 1 | 715004085 | Indicator Package PRO International | 1 |
| 1 | 715004085 | Indicator Package XMR, Engine 1000R | 1 |
| 1 | 715003979 | Indicator Package XTP and Engine 650 T3 | 1 |
| 1 | 715004087 | Indicator Package XTP and Engine 1000R T3 | 1 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Package XMR | 2 |
| 1 | 705005003 | Shiftgate Trim Model Europe, T3 | 1 |
| 2 | 206285044 | Socket Set Screw M8 x 50 Package XMR | 2 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 1 | 705007041 | Front Facia | 1 |
| 705009253 | Black, Front Bumper Support | ||
| 2 | 705004565 | Lower Fender Support | 2 |
| 1 | 715003240 | BLACK HOOD ASS'Y Package XTP Except North America | 1 |
| 1 | 715004076 | Black Hood Kit Model White | 1 |
| 1 | 715004080 | MIDNIGHT BLUE HOOD KIT Package LTD North America | 1 |
| 1 | 715004082 | MIDNIGHT BLUE HOOD ASS'Y Package LTD Except North America | 1 |
| 1 | 715003247 | Breakup Country, Hood Kit Model Camo International | 1 |
| 1 | 715003245 | Breakup Country, Hood Kit Model Camo NorthAmerica | 1 |
| 1 | 715002610 | BRUSHED ALUMINIUM HOOD KIT Model Aluminum NorthAmerica | 1 |
| 1 | 715002612 | Brushed Aluminium Hood Kit Model Aluminum International, T3 | 1 |
| 1 | 715003238 | Matte Black Hood Kit Package XTP North America | 1 |
| 1 | 715002237 | Grey Hood Kit Model Gray NorthAmerica | 1 |
| 1 | 715002239 | Grey Hood Kit Model Gray International, T3 | 1 |
| 1 | 715001543 | Red, Hood Kit Model Red NorthAmerica | 1 |
| 1 | 715002235 | RED HOOD KIT Model Red T3 | 1 |
| 1 | 715001541 | Yellow Hood Kit Model Yellow North America | 1 |
| 1 | 715002234 | Yellow Hood Kit Model Yellow Except North America | 1 |
| 1 | 708301706 | Bright White Hood Kit Model XMR Red/White/Black | 1 |
| 1 | 715001852 | Luggage Rack Kit North America | 1 |
| 1 | 715002784 | Rack Kit Except North America | 1 |
| 2 | 705005469 | Tube | 2 |
| 2 | 705005470 | Tube | 2 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 Package XMR | 2 |
| 1 | 705004523 | Lugage Rack Moulding Except Package XMR | 1 |
| 1 | 705007140 | LH Inner Fender Bracket Package XMR | 1 |
| 1 | 705006700 | LH Support Ass'y Except Package XMR, Incl 350a | 1 |
| 1 | 705006701 | RH Support Ass'y Except Package XMR, Incl 350a | 1 |
| 1 | 269501943 | Elastic Nut Housing M8 | 1 |
| 1 | 250000646 | Black, Torx Screw M6 X 35 | 1 |
| 4 | 293150104 | Pop Rivet 3/16" Package XMR, PRO | 4 |
| 4 | 517124300 | Washer Package XMR, PRO | 4 |
| 293450274 | Insert | ||
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 4 | 241140060 | Screw K40 X 10 Except Package XMR | 4 |
| 1 | 250000720 | Torx Screw K50 X 16 Except Package STD, DPS, PRO | 1 |
| 2 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip Except Package XMR | 2 |
| 1 | 250000886 | Torx Screw M8 X 30 | 1 |
| 2 | 207183054 | Hex. Cap Screw M8 X 30 Package XMR | 2 |
| 2 | 207683534 | Hex. Flange Screw M8 X 35 Except Package XMR | 2 |
| 2 | 234081670 | Stainless Steel Flat Washer 8 mm | 2 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 207551634 | Hex. Flange Screw, Scotch Grip Package XMR | 2 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 Except Package XMR | 2 |
| 4 | 207762044 | Carriage Bolt M6 X 20 Package XT, XTP | 4 |
| 1 | 707002104 | Heat Shield Package XTP, XMR | 1 |
| 1 | 707002105 | Heat Shield Package XTP, XMR | 1 |
| 1 | 705006643 | LH Rear Facia Except Model Europe | 1 |
| 1 | 705006650 | RH Rear Facia Except Model Europe | 1 |
| 1 | 705006651 | LH Rear Facia Model Europe, T3 | 1 |
| 1 | 705006652 | RH Rear Facia Model Europe, T3 | 1 |
| 1 | 707002103 | Heat Shield | 1 |
| 1 | 707002107 | Heat Shield | 1 |
| 2 | 705011221 | Red Reflector Except Model Europe | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 Except Model Europe | 2 |
| 1 | 705007277 | LH Support | 1 |
| 1 | 705007278 | RH Support | 1 |
| 8 | 250000841 | Hex Flange Screw M6 X 25 Outlander Max | 8 |
| 8 | 234062670 | Stainless Steel Flat Washer Outlander Max | 8 |
| 2 | 293150089 | Tuflok Plastic Rivet Outlander Max | 2 |
| 1 | 732610072 | Push Nut | 1 |
| 8 | 250000841 | Hex Flange Screw M6 X 25 Package XMR, Engine 1000R | 8 |
| 8 | 234062670 | Stainless Steel Flat Washer Package XMR, Engine 1000R | 8 |
| 7 | 250000722 | Torx Screw M6 X 20 | 7 |
| 1 | 207661654 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 705006299 | Front Guard Plate Except Model Europe, Except Package Hunter | 1 |
| 1 | 705006299 | Front Guard Plate Package Hunter | 1 |
| 1 | 705006300 | Front Guard Plate Model Europe, T3 | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 Package XT, XTP, LTD | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 Package XMR 850, XMR 1000R | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 Package XMR 650 International | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 Model T3 | 2 |
| 2 | 236282054 | Hex. Screw M8 X 20 Package XMR, Engine 650 North America | 2 |
| 2 | 236282054 | Hex. Screw M8 X 20 Package STD, DPS, PRO | 2 |
| 2 | 705004497 | Ring | 2 |
| 1 | 715004090 | Black, RH Lateral Panel Model Black T3 | 1 |
| 705009293 | PANEL_BODY LH B-323 Model Black T3 | ||
| 1 | 705009914 | Bright White, LH Lateral Panel Model Red/White/Black | 1 |
| 1 | 705009915 | Bright White, RH Lateral Panel Model Red/White/Black | 1 |
| 1 | 705008588 | Brushed Aluminium LH Lateral Panel Model Aluminum | 1 |
| 1 | 705008589 | Brushed Aluminium RH Lateral Panel Model Aluminum | 1 |
| 1 | 715004092 | BRUSHED ALUMINIUM RH LATERAL PANEL ASS'Y Model Aluminum T3 | 1 |
| 1 | 705009903 | Camo, LH Lateral Pannel Model Camo | 1 |
| 1 | 705009912 | Camo, RH Lateral Pannel Model Camo | 1 |
| 1 | 705010521 | Flat Black LH Lateral Panel Model Black | 1 |
| 1 | 705010522 | Flat Black RH Lateral Panel Model Black | 1 |
| 705010880 | MIDNIGHT BLUE LH PANEL Model Blue | ||
| 1 | 705010881 | Midnight Blue RH Lateral Panel Model Blue | 1 |
| 1 | 705007530 | Quarry Gray LH Lateral Panel Model Gray | 1 |
| 1 | 705009116 | PANEL_BODY RH B-365 Model Gray | 1 |
| 1 | 715004091 | QUARRY GREY RH LATERAL PANEL ASS'Y Model Gray T3 | 1 |
| 1 | 705005237 | Viper Red, LH Lateral Pannel Model Red | 1 |
| 1 | 705009115 | Viper Red, RH Lateral Panel Model Red | 1 |
| 1 | 715003981 | Viper Red, RH Lateral Panel Model Red T3 | 1 |
| 1 | 705006045 | White LH Lateral Panel Model White | 1 |
| 1 | 705009119 | White RH Lateral Panel Model White | 1 |
| 1 | 705003446 | Yellow, LH Lateral Panel Model Yellow | 1 |
| 1 | 705009019 | Yellow, RH Lateral Panel Model Yellow | 1 |
| 2 | 250000723 | Phillips Screw K40 X 16 | 2 |
| 1 | 705004147 | LH Extension Pannel | 1 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 705006321 | Gauge Support Model STD, DPS, XT | 1 |
| 1 | 705006321 | Gauge Support Package Hunter | 1 |
| 1 | 705006322 | Gauge Support Package XTP, LTD | 1 |
| 1 | 705006373 | Gage Support Package XMR, Engine 1000R | 1 |
| 1 | 705007095 | Gauge Support Model XMR 650, XMR 850 | 1 |
| 1 | 705007095 | Gauge Support Package PRO | 1 |
| 1 | 715001765 | Dash Kit North America | 1 |
| 1 | 715002783 | Dash Kit Except North America | 1 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705010705 | RH Inner Fender | 1 |
| 1 | 705004588 | LH Inner Fender | 1 |
| 1 | 705004558 | RH Inner Fender | 1 |
| 1 | 705004557 | LH Inner Fender | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 2 | 293250242 | Rubber Cover | 2 |
| 1 | 705005018 | Front Bumper Package XT, XTP, LTD | 1 |
| 1 | 705005018 | Front Bumper Package Hunter | 1 |
| 1 | 705006876 | Black Front Bumper Model Black XMR | 1 |
| 1 | 705009889 | Red Front Bumper Model Red/White/Black XMR | 1 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 Package XT, XTP, LTD | 2 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 Package Hunter | 2 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 Model Timeless Black (Triple Black) XMR | 2 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 Model Red/White/Black XMR | 2 |
| 2 | 250000886 | Torx Screw M8 X 30 Package XT, XTP, LTD | 2 |
| 2 | 250000886 | Torx Screw M8 X 30 Package Hunter | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Model Timeless Black (Triple Black) XMR | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Model Red/White/Black XMR | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Package XT, XTP, LTD | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Package Hunter | 2 |
| 4 | 250000535 | Torx Screw M8 X 55 Model Timeless Black (Triple Black) XMR | 4 |
| 4 | 250000535 | Torx Screw M8 X 55 Model Red/White/Black XMR | 4 |
| 4 | 233281464 | Elastic Flange Nut M8 Model Timeless Black (Triple Black) XMR | 4 |
| 4 | 233281464 | Elastic Flange Nut M8 Model Red/White/Black XMR | 4 |
| 2 | 705006691 | Black Upper Bracket Model Timeless Black (Triple Black) XMR | 2 |
| 2 | 705009891 | Red, Upper Bracket Model Red/White/Black XMR | 2 |
| 1 | 705007878 | LH RADIATOR SUPPORT Model Timeless Black (Triple Black) XMR | 1 |
| 1 | 705009893 | Red, Rad Bracket LH Model Red/White/Black XMR | 1 |
| 1 | 705007879 | RH Radiator Support Model Timeless Black (Triple Black) XMR | 1 |
| 1 | 705009894 | Red, RH Rad Bracket Model Red/White/Black XMR | 1 |
| 705005019 | Black Bumper Package XT, XTP, LTD | ||
| 705005019 | Black Bumper Package Hunter | ||
| 705005019 | Black Bumper Model Timeless Black (Triple Black) XMR | ||
| 2 | 705009897 | Red Rear Bumper Model Red/White/Black XMR 1000R | 2 |
| 2 | 715001564 | Rear Bumper Ass'y North America Except Model Black | 2 |
| 2 | 715002241 | Rear Bumper Ass'y International Except Model Black | 2 |
| 2 | 715002242 | Rear Bumper Ass'y Europe, T3 Except Model Black | 2 |
| 2 | 715004101 | Black Rear Bumper Ass'y Model Black North America | 2 |
| 2 | 715004103 | Black Rear Bumper Ass'y Model Black International | 2 |
| 2 | 715004104 | Black Rear Bumper Ass'y Model Black Europe, T3 | 2 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Outlander Max, Package XT, XTP, LTD | 2 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XMR, Engine 1000R | 2 |
| 4 | 207762044 | Carriage Bolt M6 X 20 Outlander Max, Package XT, XTP, LTD | 4 |
| 4 | 207762044 | Carriage Bolt M6 X 20 Package XMR, Engine 1000R | 4 |
| 6 | 233261434 | Flange Elastic Nut M6 Outlander Max, Package XT, XTP, LTD | 6 |
| 6 | 233261434 | Flange Elastic Nut M6 Package XMR, Engine 1000R | 6 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 Outlander Max, Package XT, XTP, LTD | 4 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 Package XMR, Engine 1000R | 4 |
| 1 | 705005094 | LH Bracket Outlander Max, Package XT, XTP, LTD | 1 |
| 1 | 705005094 | LH Bracket Package XMR, Engine 1000R | 1 |
| 1 | 705005095 | RH Bracket Outlander Max, Package XT, XTP, LTD | 1 |
| 1 | 705005095 | RH Bracket Package XMR, Engine 1000R | 1 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) Package Hunter | 2 |
| 2 | 705004410 | Cap (Front RH) (Rear LH) Package Hunter | 2 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) Package XMR | 2 |
| 1 | 705004410 | Cap (Front RH) (Rear LH) Package XMR | 1 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) Package XT, XTP, LTD | 2 |
| 2 | 705004410 | Cap (Front RH) (Rear LH) Package XT, XTP, LTD | 2 |
| 4 | 705004987 | Bracket Cover Package XMR | 4 |
| 4 | 705004987 | Bracket Cover Package XT, XTP, LTD | 4 |
| 4 | 705004987 | Bracket Cover Package Hunter | 4 |
| 1 | 705008164 | LH Rear Bracket Package Hunter | 1 |
| 1 | 705008165 | RH Rear Bracket Package Hunter | 1 |
| 1 | 705008164 | LH Rear Bracket Package XMR, Engine 1000R | 1 |
| 1 | 705008165 | RH Rear Bracket Package XMR, Engine 1000R | 1 |
| 1 | 705008164 | LH Rear Bracket Package XT, XTP, LTD | 1 |
| 1 | 705008165 | RH Rear Bracket Package XT, XTP, LTD | 1 |
| 1 | 705005094 | LH Bracket Package XT, XTP, Hunter | 1 |
| 1 | 705005095 | RH Bracket Package XT, XTP, Hunter | 1 |
| 2 | 250000371 | Torx Screw M6 X 30 Stainless Package XT, XTP, Hunter | 2 |
| 1 | 715001897 | LH Extension Panel Outlander Max | 1 |
| 1 | 705004348 | RH Extension Panel Outlander Max | 1 |
| 1 | 705006870 | Heat Shield Outlander Max | 1 |
| 1 | 705006871 | Heat Shield Outlander Max | 1 |
| 4 | 207662034 | Hex. Flange Screw M6 X 20 Package XMR | 4 |
| 1 | 705003914 | LH Front Mudguard Package LTD | 1 |
| 1 | 705003915 | RH Front Mudguard Package LTD | 1 |
| 1 | 705003918 | LH Rear Mudguard Package LTD | 1 |
| 1 | 705003920 | RH Rear Mudguard Package LTD | 1 |
| 1 | 705003921 | LH Rear Mudguard, Part 2 Package LTD | 1 |
| 1 | 705003922 | RH Rear Mudguard, Part 2 Package LTD | 1 |
| 18 | 241141340 | Hex. Screw K40 X 13 Package LTD | 18 |
| 4 | 732610072 | Push Nut Package LTD | 4 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 Package LTD | 4 |
| 4 | 207342544 | Hex. Cap Screw M4 X 25 Package LTD | 4 |
| 4 | 517124300 | Washer Package LTD | 4 |
| 1 | 705006988 | LH Mud Guard Package XMR, Engine 1000R | 1 |
| 1 | 705006989 | RH Mud Guard Package XMR, Engine 1000R | 1 |
| 1 | 705003918 | LH Rear Mudguard Package XMR, Engine 1000R | 1 |
| 1 | 705003920 | RH Rear Mudguard Package XMR, Engine 1000R | 1 |
| 1 | 705003921 | LH Rear Mudguard, Part 2 Package XMR, Engine 1000R | 1 |
| 1 | 705003922 | RH Rear Mudguard, Part 2 Package XMR, Engine 1000R | 1 |
| 16 | 241141340 | Hex. Screw K40 X 13 Package XMR, Engine 1000R | 16 |
| 4 | 732610072 | Push Nut Package XMR, Engine 1000R | 4 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 Package XMR, Engine 1000R | 4 |
| 4 | 207342544 | Hex. Cap Screw M4 X 25 Package XMR, Engine 1000R | 4 |
| 4 | 517124300 | Washer Package XMR, Engine 1000R | 4 |
| 4 | 207664536 | Hex. Flange Screw M6 X 45 Package XMR, Engine 1000R | 4 |
| 1 | 705007948 | Seat Holder Outlander Max | 1 |
| 8 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 Package XMR, Engine 1000R | 8 |
| 1 | 705008438 | Heat Shield Package XMR, Engine 1000R | 1 |
| 1 | 708200462 | Rod Cap Package XMR, Engine 1000R | 1 |
| 1 | 516006405 | Protector Decal Package Hunter | 1 |
| 1 | 715002112 | Boot Bracket Package Hunter | 1 |
| 1 | 207682044 | Hex. Flange Screw M8 X 20 Package Hunter | 1 |
| 1 | 708200373 | LH Lever Package Hunter | 1 |
| 1 | 708200266 | LH Latch Package Hunter | 1 |
| 708200152 | STEM Package Hunter | ||
| 708200263 | Spring Package Hunter | ||
| 1 | 233251494 | Elastic Flange Nut M5 Package Hunter | 1 |
| 6 | 250000748 | Torx Screw M6 X 45 Package Hunter | 6 |
| 1 | 250000755 | Torx Screw M6 X 16 Package Hunter | 1 |
| 8 | 233261494 | Hex. Flange Elastic Nut M6 Package Hunter | 8 |
| 6 | 705202223 | Offset Washer Package Hunter | 6 |
| 2 | 250100131 | Elastic Flange Nut M8 Package Hunter | 2 |
| 1 | 250000135 | Hex. Nut M6 Package Hunter | 1 |
| 2 | 250200128 | Flat Washer 8 mm Package Hunter | 2 |
| 1 | 250200039 | Flat Washer Package Hunter | 1 |
| 1 | 291003688 | Rubber Bumper Package Hunter | 1 |
| 1 | 715001419 | Gun Boot kit Package Hunter | 1 |
| 2 | 715001421 | Kit Gear Crip Package Hunter | 2 |
| 2 | 705005252 | Plate Package Hunter | 2 |
| 8 | 250000245 | TORX SCREW M6 X 30 Package Hunter | 8 |
| 1 | 715000945 | LINQ Kit Package Hunter | 1 |
| 1 | 708200267 | RH Latch Package Hunter | 1 |
| 2 | 250000591 | Set Screw Package Hunter | 2 |
| 4 | 250000792 | Torx Screw M5 X 20 Package Hunter | 4 |
| 4 | 233251494 | Elastic Flange Nut M5 Package Hunter | 4 |
| 1 | 715000926 | Front Skid Plate Package Hunter | 1 |
| 2 | 250000712 | Torx Screw M6 X 20 Package Hunter | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer Package Hunter | 2 |
| 2 | 233261434 | Flange Elastic Nut M6 Package Hunter | 2 |
| 2 | 250000745 | Hex Torx Truss M8 X30 Package Hunter | 2 |
| 1 | 705204031 | Central Skid Plate Package Hunter | 1 |
| 2 | 207762044 | Carriage Bolt M6 X 20 Package Hunter | 2 |
| 4 | 207662054 | Hex. Flange Screw M6 X 20 Package Hunter | 4 |
| 293450232 | Insert M6 X 1.0 Package Hunter | ||
| 2 | 207682534 | Hex. Flange Screw M8 X 25 Package Hunter | 2 |
| 1 | 705010659 | LH Skid Plate Package Hunter | 1 |
| 1 | 705010660 | RH Skid Plate Package Hunter | 1 |
| 8 | 207662054 | Hex. Flange Screw M6 X 20 Package Hunter | 8 |
| 4 | 705007171 | Cup Package Hunter | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 Package Hunter | 4 |
Хотите использовать PowerCatalog в своём бизнесе?
Купите базу данных SQL с изображениями или арендуйте каталог. Интегрируйте в свою ERP-систему, сайт или мобильное приложение.
Связаться с нами
