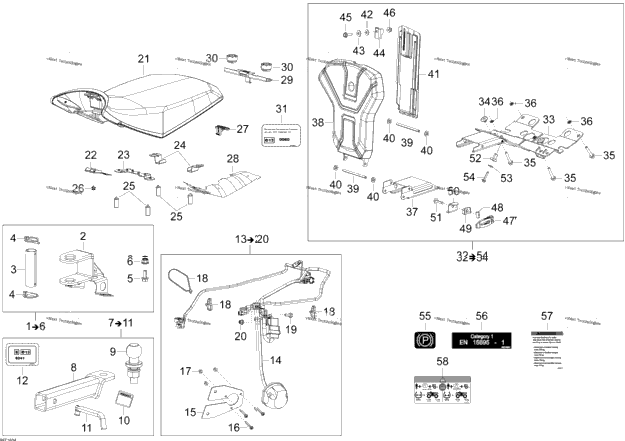

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Front Coupling Device Ass'y Includes 1 To 4 | ||
| 705205025 | Front Coupling Device | ||
| 605456511 | Pin | ||
| 2 | 605456518 | Pin | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 715001473 | Coupling Ball Ass'y Includes 7 To 11 | 1 |
| XXXX | Not Available As Spare Part - Ball Mount | ||
| XXXX | Not Available As Spare Part - Coupling Ball | ||
| XXXX | Not Available As Spare Part - Warning Decal | ||
| 1 | 705204490 | Hitch Pin | 1 |
| 605456545 | Hitch Decal | ||
| 860200927 | Trailer Plug Ass'y Includes 13 To 20 | ||
| XXXX | Not Available As Spare Part - Rear Light Harness | ||
| 605356523 | Plug Support Plate | ||
| 3 | 205053588 | Socket Head Screw M5 X 35 | 3 |
| 3 | 233251414 | Hex. Flange Elastic Nut M5 | 3 |
| 5 | 414115200 | Tie-Rap 180 mm | 5 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 708002208 | Seat Ass'y | ||
| 605456520 | Front Bottom Support | ||
| 510005986 | Support Central Cushion | ||
| 510005988 | Support Rear Cushion | ||
| 605456546 | RUBBER DAMPER | ||
| 10 | 293150067 | Rivet | 10 |
| 1 | 708000909 | Latch | 1 |
| 705005761 | HEAT SHIELD | ||
| 705204621 | Support Rear Seat | ||
| 2 | 708000760 | Bumper Rubber | 2 |
| 605456593 | Decal | ||
| XXXX | Not Available As Spare Part - Backrest Ass'y Includes 32 To 54 | ||
| 1 | 708001796 | Support | 1 |
| 2 | 605452114 | Plug | 2 |
| 4 | 207663534 | HEX. FLANGED SCREW M6 X 35 | 4 |
| 4 | 732610072 | Push Nut | 4 |
| 708001797 | Sliding Rail | ||
| 708001794 | Backrest | ||
| 605456662 | Pin | ||
| 4 | 36084 | Safety Washer | 4 |
| 1 | 708001798 | Sliding Cover | 1 |
| 1 | 250200024 | Rubber Washer 5 mm | 1 |
| 1 | 20117 | Washer | 1 |
| 708001799 | Sliding Guide | ||
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261494 | Hex. Flange Elastic Nut M6 | 1 |
| 506152646 | LEVER | ||
| 506152647 | Lever Pin | ||
| 506152706 | Compression Block | ||
| 708301660 | Lever Guide | ||
| 1 | 250000634 | Stainless Torx Screw M6 X 30 | 1 |
| 2 | 250100018 | NUT M5 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 2 | 207652544 | Hex. Flange Screw M5 X 25 | 2 |
| 605356244 | P-Decal, T3 | ||
| 605456594 | Cabin Decal, T3 | ||
| 605356505 | Warning Decal | ||
| 1 | 704903953 | Warning Decal, Tire Pressure | 1 |
