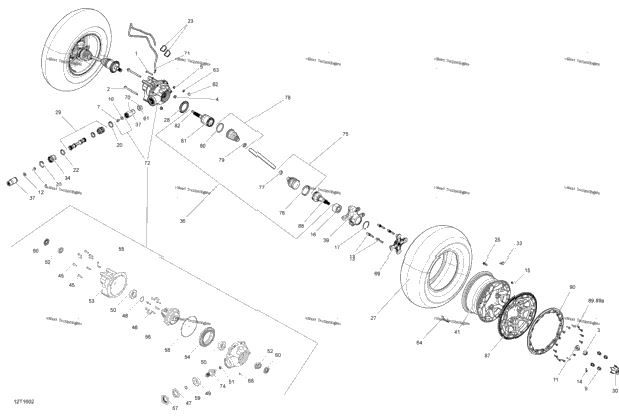

Каталог / ATV / Can-Am / 2016 / Outlander - 1000 / Drive System, Front - All Models

Список запчастей

№	Артикул	Название	Кол-во
1	207685544	Hex. Flange Screw M8 X 55	1
2	230602546	Hex. Flange Screw M10 X 125	2
2	250100047	Hex. Castellated Nut M18	2
2	233201436	Hex. Flange Elastic Nut M10	2
1	233281414	Hex. Flange Elastic Nut M8	1
1	250000540	Hex Flange Screw M12 X 20	1
1	250000847	Hex. Flange Screw M10 X 20	1
8	250100042	Steel Wheel Nut Package STD	8
8	250100082	Chrome Wheel Nut M10 X 1.25 Package DPS	8
8	250100100	Black Wheel Nut M10 X 1.25 Except Package STD and DPS	8
1	250200014	Flat Washer M10	1
2	250200049	Spring Washer	2
1	250200102	Flat Washer M12	1
8	250300048	Wheel Stud Tightening Torque: See Bulletin ATV 2020-4	8
2	250400071	Cotter Pin	2
2	293000110	Valve Cap	2
2	293350040	Cone Bearing	2
2	293370019	Circlip	2
	293550010	Synthetic Grease, 400 G
	293600043	SYNTHETIC GEAR OIL, 75W90, 12 X 32 OZ
2	293650138	Oetiker Gear Clamp 44.0MM	2
1	293650199	Oetiker Gear Clamp	1
2	414115200	Tie-Rap 180 mm	2
2	705400193	Rim Valve With Cap	2
2	705401331	Tire Package STD - Package DPS Except Europe Model	2
2	705401332	Front Tire Europe Model Package DPS	2
2	705401333	Tire Package XT, XTP, LTD Except Europe	2
2	705401334	Front Tire Package XT, XTP, LTD Europe Model	2
	705401391	TIRE_28X8R12 F Engine 650 Package XMR
	705400962	TIRE_30X9R14 Engine 850 1000R Package XMR
2	705401736	Tire Package PRO International	2
2	705401737	Front Tire Package PRO Europe	2
2	705400780	Wear Sleeve Engine 650 - 850 - 1000R, Except Package XMR	2
1	705400913	Propeller Shaft	1
2	705400928	Wheel Cap Engine 570 - 650	2
2	705400928	Wheel Cap Engine 850 - 1000R, Except Package XMR	2
2	705401318	Wheel Cap Engine 850 1000R Package XMR	2
1	705401093	Rubber Boot	1
1	705401115	LH Front - Premium CV Axle Engine 650 - 850 - 1000R, Except Package XMR	1
1	705401116	RH Front - Premium CV Axle Engine 650 - 850 - 1000R, Except Package XMR	1
1	705401428	RH Front - Premium CV Axle Engine 570	1
1	705401429	LH Front - Premium CV Axle Engine 570	1
1	705401703	Performance CV Axle - Front Right Package XMR	1
1	705401704	Performance CV Axle - Front Left Package XMR	1
1	703500678	Front Bushing Shaft Kit	1
1	705401290	LH Knuckle	1
1	705401291	RH Knuckle	1
2	705401371	Black, Rim Package STD	2
2	705401088	Silver Front Rim Package DPS	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package PRO	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package XT Black Model	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package XT Camo Model	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package XT Brush Aluminium Model	2
2	705401420	Black, Rim Package XT Yellow	2
2	705401420	Black, Rim Package XT White	2
2	705401420	Black, Rim Package LTD	2
2	705401678	Black, Rim Package XTP - XXC	2
2	705401420	Black, Rim Engine 650 Package XMR	2
2	705401552	Matte Black Rim Engine 850 1000R Package XMR	2
6	705401601	Screw	6
8	705401602	Screw	8
1	705401603	Nut	1
1	705401604	Shim	1
1	705401605	Ball Bearing	1
2	705401606	Ball Bearing	2
1	705401607	Needle Bearing	1
2	705401608	Ball Bearing	2
1	705401610	Front Cover	1
1	705401612	Gear 36 Teeth	1
1	705401613	Vent Valve	1
1	705401506	Differential Except Package STD	1
1	705401614	Differential Package STD	1
1	705401769	Shim	1
1	705401770	Shim	1
1	705401615	Oil Seal	1
1	705401616	Seal	1
1	705401617	O'Ring	1
2	705401618	Gasket	2
1	705400036	Wear Ring	1
1	705500504	Fill Level Plug	1
1	705500506	Copper Washer	1
1	219704465	1/2 Oz Weight	1
1	705401792	Front Pinion Cover	1
1	705501885	Drain Plug	1
2	705501900	Wheel Hub	2
2	703500678	Front Bushing Shaft Kit	2
1	219704410	Polyurethane Hose 10000Mm Long	1
1	703500899	Front Differential Ass'y Package STD	1
1	703500900	Front Differential Ass'y Except Package STD	1
1	705401791	Pinion 10 Teeth	1
2	705401345	Boot Kit, Wheel Side Engine 650, 850, 1000 Except Package XMR	2
2	705401354	Boot Kit, Wheel Side Engine 650, 850, 1000 Package XMR	2
2	715900298	CV Boot Kit, Wheel Side Engine 570	2
2	715900260	Oetiker Clamp, Large Engine 650, 850, 1000 Package XMR	2
2	715900262	Oetiker Clamp, Large Engine 570	2
2	715900282	Oetiker Clamp Engine 650, 850, 1000 Except Package XMR	2
2	715900261	Oetiker Clamp, Small Engine 650, 850, 1000 Package XMR	2
2	715900283	Oetiker Clamp, Small Engine 650, 850, 1000 Except Package XMR	2
2	715900317	Oetiker Clamp, Small Engine 570	2
2	705401346	Boot Kit, Differential Side Engine 650, 850, 1000 Except Package XMR	2
2	705401355	Boot Kit, Différential Side Engine 650, 850, 1000 Package XMR	2
2	715900299	CV Boot Kit, Differential Side Engine 570	2
2	715900261	Oetiker Clamp, Small Engine 650, 850, 1000 Except Package XMR	2
1	715900261	Oetiker Clamp, Small Engine 650, 850, 1000 Package XMR	1
1	715900262	Oetiker Clamp, Large Engine 650, 850, 1000 Package XMR	1
2	715900284	Oetiker Clamp, Large EEngine 650, 850, 1000 Except Package XMR	2
2	715900318	Oetiker Clamp, Large Engine 570	2
1	705401348	RH Plunging Joint Engine 650, 850, 1000 Except Package XMR	1
1	705401350	LH Plunging Joint Engine 650, 850, 1000 Except Package XMR	1
1	715900300	RH Plunging CV Joint Engine 570	1
1	715900301	LH Plunging CV Joint Engine 570	1
1	715900395	RH Plunging CV Joint Engine 650, 850, 1000 Package XMR	1
1	715900396	LH Plunging CV Joint Engine 650, 850, 1000 Package XMR	1
2	705401349	Circlip Joint	2
2	705401811	Orange Reinforcement Disk Package XTP	2
2	705401344	CV Joint Engine 650, 850, 1000 Except Package XMR	2
2	705401407	CV Joint Engine 650, 850, 1000 Package XMR	2
2	715900297	CV Joint Engine 570	2
32	250000787	Hex. Flange Screw M6 X 25 Package XTP	32
32	293450317	Insert Package XTP	32
