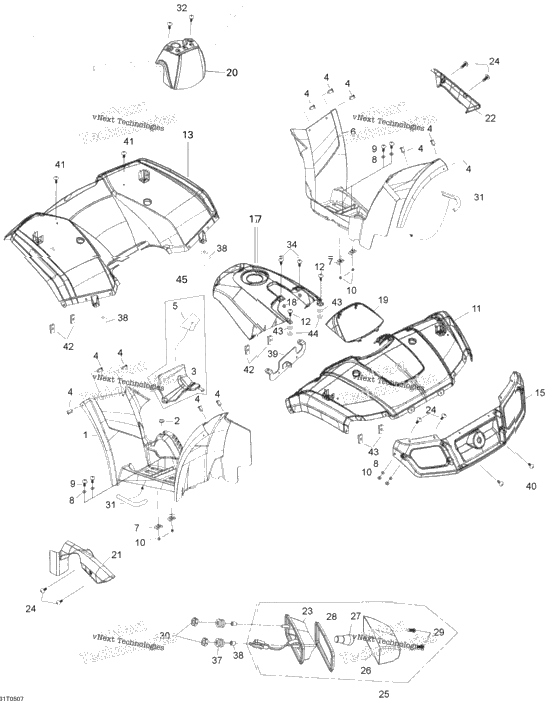

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| A64312179000 | RH Footboard, Black | ||
| 2 | A83406179000 | REAR COVER RUBBER | 2 |
| 1 | 705000870 | CHAIN COVER | 1 |
| A90663179000 | Tuflok Plastic Rivet | ||
| 705000563 | Reflective Sheet | ||
| A64313179000 | LH Footboard, Black | ||
| 705000407 | Rubber Stopper | ||
| 4 | 250200029 | Washer M6 | 4 |
| 4 | A9380006032K | PAN HEAD SCREW PHILLIPS M6 X 32 | 4 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| A64301179000DG | Front Fender- Luggage Rack (green(b-204) | ||
| A64301179000RD | Front Fender, Red | ||
| A64301179000YL | Front Fender, Yellow | ||
| 2 | A9370106025K | PAN HEAD SCREW PHILLIPS M6 X 25 | 2 |
| A83400179000DG | Rear Fender (green (b-204)) | ||
| 1 | A83400179000RD | REAR FENDER, RED | 1 |
| A83400179000YL | Rear Fender, Yellow | ||
| 2 | 233081416 | Hex. Flange Nut M8 Not Illustrated | 2 |
| A64321179000DG | Front Fascia, green, b-204 | ||
| A64321179000RD | Front Fascia, Red | ||
| A64321179000YL | Front Fascia, Yellow | ||
| 4 | 224060201 | Flat Washer Not Illustrated | 4 |
| A64501179000DG | Dash Board (green (b-204)) | ||
| A64501179000RD | Viper Red, Dashboard | ||
| A64501179000YL | 2000 Yellow, Dash Board | ||
| 2 | 705005156 | Oval Washer | 2 |
| A64502179000DG | CONSOLE COVER (GREEN (B-204)) | ||
| 1 | A64502179000RD | CONSOLE COVER, RED | 1 |
| 1 | A64502179000YL | CONSOLE COVER, YELLOW | 1 |
| A64211179000 | Steering Cover | ||
| 1 | A83505179000 | RH PANEL | 1 |
| 1 | A83506179000 | LH PANEL | 1 |
| XXXX | Not Available As Spare Part - Rear Light Socket | ||
| 4 | A9370106018KL | PHILLIPS SCREW M6 X 18 | 4 |
| A33700179000 | Tail Light Housing Includes 25 To 29 | ||
| 1 | A33702179000 | TAIL LIGHT LENS, RED | 1 |
| 1 | 410504100 | Bulb | 1 |
| A33717179000 | Gasket | ||
| A9390304035 | Screw M4 X 35 | ||
| A9405004000 | Nut-flange Elastic M4 | ||
| 219704372 | GASKET, NEOPRENE 1000MM LONG | ||
| 2 | A9370106015K13 | PAN HEAD SCREW PHILLIPS M6 X 15 | 2 |
| A9390305016k | Phillips Tapping Screw M5 X 16 Not Illustrated | ||
| 2 | 210262080 | Hex. Forming Screw M6 X 20 | 2 |
| 4 | A9600006010 | Hex. Flange Screw M6 X 10 Not Illustrated | 4 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 Not Illustrated | 4 |
| A33713179000 | Tail Light Rubber Ring | ||
| A33718179000 | Tail Light Rubber Ring Spacer | ||
| A64504179000 | Dash Board Bracket | ||
| A9370106018k | Phillips Screw M6 X 18 | ||
| 4 | A9370106060 | PHILLIPS SCREW M6 X 60 | 4 |
| A903440600B | U Plate Nut | ||
| 2 | 250200029 | Washer M6 | 2 |
| 2 | A9035006000 | NYLON NUT M6 | 2 |
| XXXX | Not Available As Spare Part - Chain Cover Ass'y |
