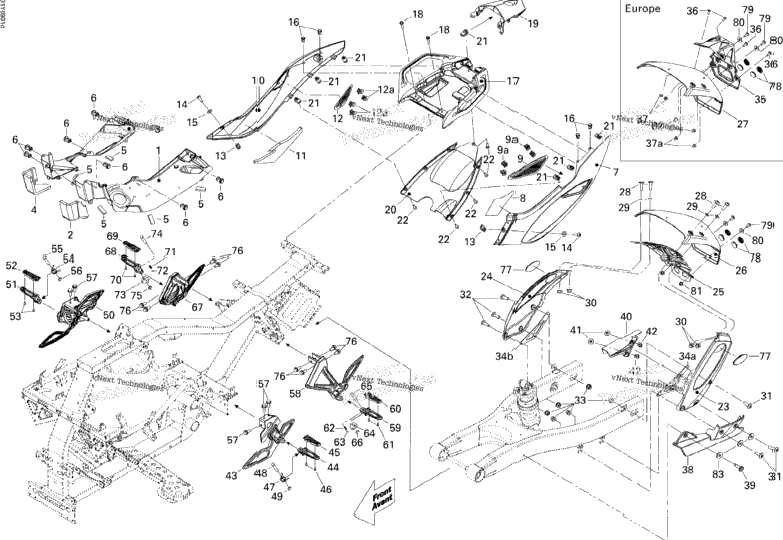

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705002325 | LH Gas Tank Cover | 1 |
| 1 | 705002920 | LH FOAM | 1 |
| 1 | 705002546 | RH GAS TANK COVER | 1 |
| 1 | 705002921 | RH DEFLECTOR FOAM | 1 |
| 5 | 219704364 | Neoprene Seal (1PAC=3M) | 5 |
| 7 | 293150089 | Tuflok Plastic Rivet | 7 |
| 1 | 705002548 | LH Rear Panel, Black | 1 |
| 1 | 705002508 | LH Heat Reflective Sheet | 1 |
| 1 | 705001542 | LH REAR GRILL | 1 |
| 4 | 517302785 | Edge Clip | 4 |
| 1 | 705002547 | RH Rear Panel, Black | 1 |
| 705002509 | BLACK RH REAR PANEL FOAM | ||
| 1 | 705001544 | RH REAR GRILL | 1 |
| 6 | 250100113 | Panel Nut, M6 X 1.0 | 6 |
| 2 | 250000350 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 705003207 | Plastic Washer | 2 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 1 | 705001550 | Passenger Handle | 1 |
| 2 | 207584034 | Hex. Flange Screw, Scotch Grip | 2 |
| 705002387 | REAR TIP, FULL MOON Full Moon | ||
| 705002563 | Rear Tip, Yellow Yellow | ||
| 1 | 705003193 | REAR TIP, RED Red | 1 |
| 1 | 705003175 | Rear Tip, Black GS Black A19N Model | 1 |
| 705001551 | UNDER TAIL COVER | ||
| 7 | 250100113 | Panel Nut, M6 X 1.0 | 7 |
| 7 | 250000350 | Torx Truss Screw M6 X 20 | 7 |
| 1 | 705002503 | LH Rear Fender Support | 1 |
| 705002501 | RH REAR FENDER SUPPORT | ||
| 705003031 | CENTRAL REAR FENDER SUPPORT | ||
| 705002535 | Rear Fender, Full Moon Full Moon | ||
| 705002538 | REAR FENDER, YELLOW Yellow | ||
| 705003184 | Rear Fender, Red Red | ||
| 1 | 705003176 | Rear Fender, Black GS Black A19N Model | 1 |
| 705002536 | REAR FENDER, FULL MOON Full Moon, Europe | ||
| 1 | 705002540 | REAR FENDER, YELLOW Yellow, Europe | 1 |
| 705003185 | Rear Fender, Red Red, Europe | ||
| 4 | 250000303 | Torx Truss Screw M6 X 20 | 4 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 GS Black A19N Model | 4 |
| 4 | 705003207 | Plastic Washer | 4 |
| 4 | 233261494 | Hex. Flange Elastic Nut M6 | 4 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 | 4 |
| 3 | 250000350 | Torx Truss Screw M6 X 20 | 3 |
| 6 | 233261494 | Hex. Flange Elastic Nut M6 | 6 |
| 1 | 705002980 | LH REINFORCEMENT PLATE | 1 |
| 1 | 705002981 | RH Reinforcement Plate | 1 |
| 705002367 | LICENCE PLATE SUPPORT Europe | ||
| 4 | 250000348 | Torx Truss Screw M6 X 16 Europe | 4 |
| 2 | 232561494 | Elastic Stop Nut M6 Europe | 2 |
| 2 | 232361493 | Domed Nut M6 Europe | 2 |
| 1 | 705002092 | Lower Belt Guard | 1 |
| 1 | 250000081 | Torx Screw M6 X 25 | 1 |
| 1 | 705001555 | Upper Belt Guard | 1 |
| 2 | 250000349 | Torx Truss Screw M6 X 10 | 2 |
| 2 | 232361493 | Domed Nut M6 | 2 |
| 1 | 705003335 | LH Front Foot Peg Support - Call Your Local BRP Dealership | 1 |
| 705003331 | LH FRONT FOOT PEG | ||
| 1 | 705002359 | Rubber Pad | 1 |
| 2 | 250000099 | Allen Plastite Screw #12 | 2 |
| 1 | 705001701 | Spring | 1 |
| 1 | 705001702 | Retainer Pin | 1 |
| 1 | 705600272 | Circlip | 1 |
| 1 | 705003336 | RH Front Foot Peg Support | 1 |
| 705003332 | RH FRONT FOOT PEG | ||
| 1 | 705003362 | Spring | 1 |
| 5 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 5 |
| 1 | 705003337 | LH Rear Foot Peg Support | 1 |
| 1 | 705003333 | LH Rear Foot Peg | 1 |
| 1 | 705001704 | Spring | 1 |
| 1 | 705001705 | Ball | 1 |
| 1 | 705001706 | Indexation Plate | 1 |
| 1 | 705003338 | RH Rear Foot Peg Support | 1 |
| 1 | 705003334 | RH Rear Foot Peg | 1 |
| 8 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip | 8 |
| 705001572 | RED REAR LATERAL REFLECTOR | ||
| 705001573 | YELLOW REAR LATERAL REFLECTOR Europe | ||
| 4 | 293740028 | Dual Lock Velcro Washer 3/4" | 4 |
| 2 | 250000303 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 233261494 | Hex. Flange Elastic Nut M6 | 2 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
