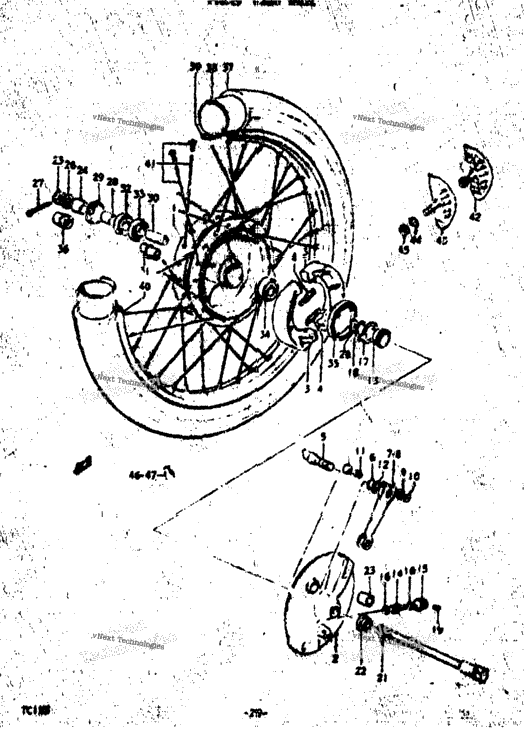

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 54110-28000 | DRUM,HUB J; TO 54110-28001 | ||
| 54110-28001 | DRUM,HUB K | ||
| 54110-07001 | DRUM,HUB L,M | ||
| 54210-28001 | DRUM,HUB J; TO 54210-28002 | ||
| 54210-28002 | PANEL,HUB K | ||
| 54210-28400 | PANEL,HUB L,M | ||
| 2 | 54410-01004 | PANEL,HUB J,K; TO 54410-01005 | 2 |
| 54410-07001 | SHOE, BRAKE L; TO 54410-07002 | ||
| 54410-07002 | SHOE, BRAKE M | ||
| 2 | 09443-07001 | SPRING (L:34) | 2 |
| 1 | 54441-04001 | CAM, BRAKE J,K; TO 54441-01002 | 1 |
| 54441-07001 | CAM, BRAKE L,M; TO 54441-01002 | ||
| 1 | 09280-12001 | DUST SEAL | 1 |
| 54451-03602 | LEVER, BRAKE CAM J,K; TO 54451-03802 | ||
| 54451-28400 | LEVER, BRAKE CAM L,M | ||
| 1 | 08322-21068 | WASHER | 1 |
| 1 | 08311-11068 | NUT | 1 |
| 1 | 09100-06050 | BOLT, REAR LEVER | 1 |
| 1 | 09160-12011 | WASHER (12.5X20X1.0) | 1 |
| 54611-28000 | GEAR, SPEEDOMETER | ||
| 54621-28000 | PINION,SPEEDOMETER | ||
| 1 | 54632-01001 | BUSHING,PINION OUTER | 1 |
| 2 | 09160-05001 | WASHER, PINION THRUST | 2 |
| 1 | 54661-07000 | DRIVER, GEAR | 1 |
| 1 | 09160-18002 | WASHER, GEAR THRUST | 1 |
| 1 | 09134-03101 | SCREW, PINION BUSHING | 1 |
| 1 | 08331-11109 | CIRCLIP | 1 |
| 54711-28000 | AXLE, FRONT J,K | ||
| 54711-28401 | AXLE, FRONT L | ||
| 54711-28402 | AXLE, FRONT L | ||
| 54711-28303 | AXLE, FRONT M | ||
| 54751-25500 | SPACER, FRONT AXLE LH L | ||
| 09180-12062 | SPACER M | ||
| 09180-12061 | SPACER L,M | ||
| 1 | 08314-31128 | NUT L,M | 1 |
| 1 | 08322-21128 | WASHER L,M | 1 |
| 1 | 04111-30308 | COTTER PIN L,M | 1 |
| 1 | 09180-12040 | SPACER, FRONT AXLE RH | 1 |
| 54892-28000 | COVER, DUST SEAL J,K; TO 54892-28001 | ||
| 54892-28400 | COVER, DUST SEAL L,M | ||
| 1 | 09180-12041 | SPACER, BEARING J,K | 1 |
| 54730-07000 | SPACER, BEARING L,M | ||
| 1 | 09284-18002 | OIL SEAL, DRUG J,K | 1 |
| 1 | 09284-18001 | OIL SEAL, DRUM L,M | 1 |
| 1 | 08113-62010 | BEARING J,K | 1 |
| 1 | 08113-63010 | BEARING L,M | 1 |
| 1 | 08143-62010 | BEARING J,K | 1 |
| 1 | 08143-63010 | BEARING L,M | 1 |
| 1 | 09285-43001 | OIL SEAL, PANEL J,K | 1 |
| 09283-48001 | OIL SEAL, PANEL L,M | ||
| 54721-36000 | NUT, FRONT AXLE M | ||
| 55100-28211 | TIRE, FRONT J,K; 2.75-19 KNOBBYL,M; 2.75-19 OPT KNOBBY | ||
| 55100-28031 | TIRE, FRONT 2.75-19 SEAL KNOBBY | ||
| 55200-29010 | TUBE, INNER J,K; 2.75-19 | ||
| 55200-28030 | TUBE, INNER L,M | ||
| 1 | 55261-29010 | PROTECTOR, INNER TUBE J,K | 1 |
| 55261-28030 | PROTECTOR, INNER TUBE L,M | ||
| 55311-29600 | RIM, FRONT WHEEL J,K | ||
| 55311-29601 | RIM, FRONT WHEEL L | ||
| 55311-17022 | RIM, FRONT WHEEL M | ||
| 55300-28806 | SPOKE SET, FRONT J,K | ||
| 55300-28840 | SPOKE SET, FRONT L,M | ||
| 1 | 65270-28600 | STOPPER, BEAD J,K,L | 1 |
| 65270-28610 | STOPPER, BEAD L | ||
| 1 | 08322-11088 | WASHER, BEAD STOPPER J,K,L | 1 |
| 1 | 08312-11088 | NUT J,K,L | 1 |
| 1 | 55412-11000 | BARANCER, WHEEL J,K,L; 30G | 1 |
| 55411-30000 | BARANCER, WHEEL J,K,L; 50G |
