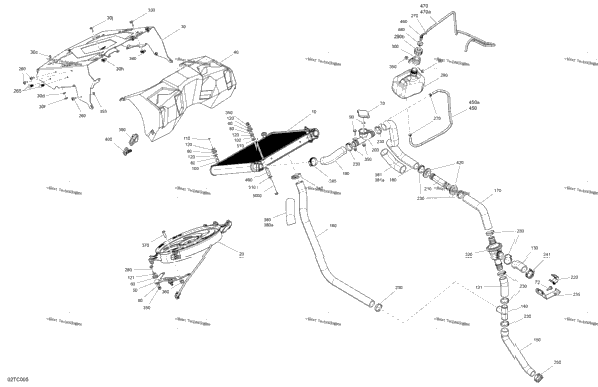

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709200286 | Radiator | 1 |
| 1 | 709200565 | Fan Ass'y | 1 |
| 1 | 709200556 | Support Ass'y Includes 30 to 30j | 1 |
| 8 | 293150102 | Rivet 3/16" | 8 |
| 8 | 517124300 | Washer | 8 |
| 8 | 250200024 | Rubber Washer 5 mm | 8 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 3 | 250000717 | Torx Head Screw M6 X 16 | 3 |
| 1 | 703100399 | Protection Cover Kit Includes 40 to 40a | 1 |
| 2 | 709200495 | Support | 2 |
| 8 | 293720062 | Grommet | 8 |
| 1 | 709200207 | Radiator Pressure Cap | 1 |
| 1 | 210261640 | Hex. Flange Screw M6 X 16 | 1 |
| 8 | 707000058 | Spacer | 8 |
| 3 | 207662034 | Hex. Flange Screw M6 X 20 | 3 |
| 4 | 708001129 | Bushing | 4 |
| 2 | 235563054 | Torx Screw M6 X 30 | 2 |
| 8 | 250200040 | Flat Washer | 8 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 709200630 | Cylinder Hose | 1 |
| 1 | 709200629 | Cylinder Hose | 1 |
| 1 | 509001313 | T-Fitting | 1 |
| 1 | 709200787 | Outlet Hose | 1 |
| 1 | 709200801 | Outlet Hose | 1 |
| 1 | 709200788 | Outlet Hose | 1 |
| 1 | 709200892 | Outlet Hose | 1 |
| 1 | 709200891 | Hose | 1 |
| 1 | 709200422 | Filler Neck | 1 |
| 1 | 709200448 | Nipple Tube 1" | 1 |
| 1 | 275500526 | Retainer | 1 |
| 4 | 509000162 | Gear Clamp | 4 |
| 6 | 509000162 | Gear Clamp | 6 |
| 1 | 709200641 | Hose Support | 1 |
| 1 | 293650166 | Norma Spring Clamp | 1 |
| 1 | 293650098 | Norma Gear Clamp | 1 |
| 6 | 250000717 | Torx Head Screw M6 X 16 | 6 |
| 4 | 293730062 | Dart | 4 |
| 3 | 414554800 | Spring Clamp | 3 |
| 5 | 207662544 | Hex. Flange Screw M6 X 25 | 5 |
| 1 | 703501190 | Coolant Tank Ass'y Includes 290 to 290b | 1 |
| 1 | 709200586 | Cap | 1 |
| 1 | 709200036 | Hose Anchor | 1 |
| 1 | 709200406 | Thermostat | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 10 | 233261434 | Flange Elastic Nut M6 | 10 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 4 |
| 1 | 219704428 | Tubing 35 MM 1000MM Long Includes 380 to 380a | 1 |
| 515176260 | Tubing 35 mm | ||
| 1 | 219704428 | Tubing 35 MM 1000MM Long Includes 381 to 381a | 1 |
| 2 | 517304075 | End Piece Latch | 2 |
| 2 | 517303981 | Panel Latch | 2 |
| 2 | 293720096 | Grommet | 2 |
| 1 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm Includes 450 to 450a | 1 |
| 1 | 219704360 | Hose 6 Mm 15000Mm Long | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long Includes 470 to 470a | 1 |
| 293830193 | Polyurethane Hose | ||
| 1 | 705003264 | Grommet | 1 |
| 2 | 705202499 | Bushing | 2 |
| 2 | 207667044 | Hex. Flange Screw M6 X 70 | 2 |
