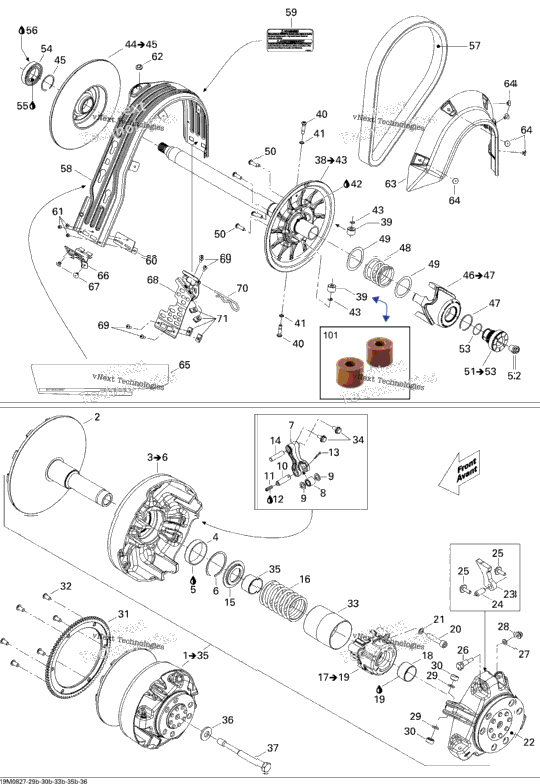

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 to 35 | ||
| 1 | 417222966 | Fixed Flange Ass'y | 1 |
| 1 | 417222646 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417223017 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417222594 | Pin | 3 |
| XXX | Not Available As Spare Parts | ||
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 415034900 | Spring, Violet/blue | 1 |
| 1 | 417222759 | Spring Cover Ass'y Includes 17 to 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222634 | GOVERNOR CUP | ||
| 3 | 417222546 | Ramp 414 | 3 |
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417222955 | CALIBRATION SCREW | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 420460045 | Corrugated Tube NW 6 Slit 385MM | ||
| 1 | 417222952 | Ring Gear | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000182 | Serrated Hex. Flange Screw M6 X 16 | 6 |
| 417222826 | BUSHING | ||
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417300296 | DRIVE PULLEY BOLT | 1 |
| 417127075 | Fixe Flange Ass'y Includes 38 to 43 | ||
| 2 | 417127016 | Pulley Roller | 2 |
| 415129368 | Stud Ass'y Includes 39,40,41,43 | ||
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 414753500 | Circlip | 2 |
| 1 | 417126955 | Sliding Flange Ass'y Includes 44 to 45 | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127011 | Cam Ass'y Incldues 46 to 47 | 1 |
| 1 | 417127062 | Violet Spring | 1 |
| 1 | 417127116 | Swivel Abutment | 1 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 860200241 | PULLEY AJUSTABLE ASS'Y Includes 51 to 53 | ||
| XXXX | Not Available As Spare Part - Straig Fitting | ||
| XXXX | Not Available As Spare Part - O Ring | ||
| 1 | 504152574 | Ball Bearing | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300166 | Drive Belt | 1 |
| 417300353 | Belt Guard | ||
| 1 | 516002670 | WARNING DECAL, SECURITY BELT GUARD | 1 |
| 1 | 417300335 | REINFORCEMENT | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 517303974 | GROMMET | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 516003601 | LABEL | 1 |
| 417300358 | BELT GUARD BRACKET | ||
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 417300354 | Belt Guard Bracket | ||
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
| 4 | 250000079 | Panel Nut M5 X 0.8 | 4 |
| 1 | 861805577 | QRS XD Roller Kit (2) | 1 |
