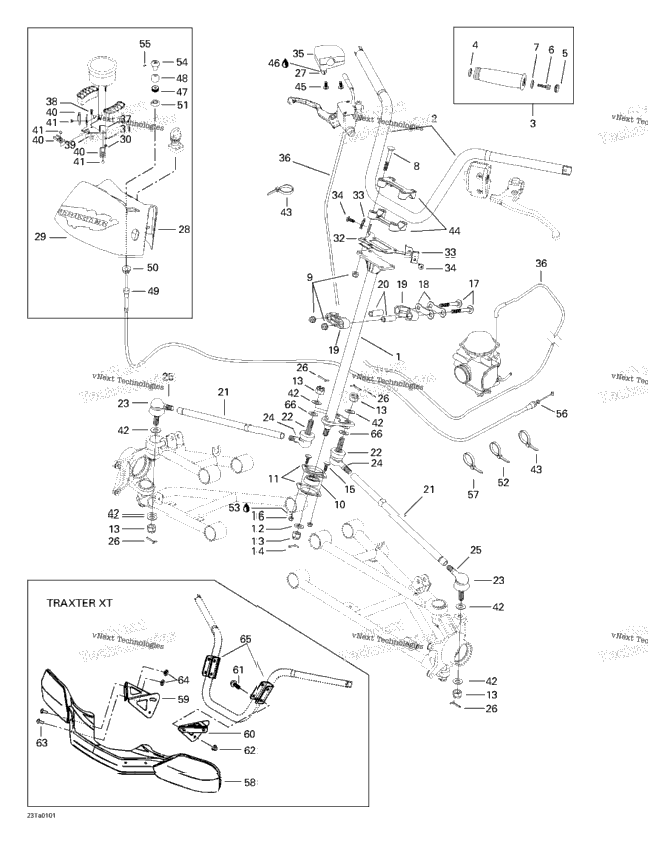

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 709400089 | Main Tube, Black | ||
| 709400005 | Handlebar | ||
| 1 | 295500691 | HANDLE GRIP KIT, BLACK Includes 3 - 7. | 1 |
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 207786544 | CARRIAGE BOLT M8 X 65 | ||
| 6 | 233281414 | Hex. Flange Elastic Nut M8 | 6 |
| 1 | 709400012 | Thrust bearing | 1 |
| 709400013 | Thrust washer | ||
| 1 | 234021410 | Flat Washer 12 mm | 1 |
| 5 | 232221414 | Hex. Castellated Nut M12 | 5 |
| 1 | 211400017 | Cotter Pin | 1 |
| 2 | 207762544 | Carriage Bolt M6 X 25 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 207787044 | Carriage Bolt M8 X 70 | 2 |
| 2 | 506150600 | Stopper Plate | 2 |
| 2 | 709400034 | HALF-HOUSING | 2 |
| 2 | 506150500 | Housing Bushing | 2 |
| 709400064 | TIE ROD ASS'Y Includes 21 - 25. | ||
| 2 | 709400065 | RH Ball Joint | 2 |
| 2 | 709400066 | LH Ball Joint | 2 |
| 2 | 732610019 | RH Hex. Jam Nut M12 | 2 |
| 2 | 732610020 | LH HEX. JAM NUT M12 | 2 |
| 4 | 211400013 | Cotter Pin | 4 |
| 250000017 | SCREW-SET SOCKET DIN.913 | ||
| 703500019 | Steering cover (black) Includes 28 - 29. | ||
| 704900024 | Steering Cover Label | ||
| 414303600 | Nut | ||
| 2 | 234141601 | Lock Washer 4 mm | 2 |
| 709400077 | Cover Support, Black | ||
| 211100050 | Speednut M6 | ||
| 2 | 211000123 | Phillips Screw M6 X 20 | 2 |
| 1 | 709400016 | THROTTLE HANDLE | 1 |
| 707000097 | THROTTLE CABLE | ||
| 710000159 | Housing Support, Black | ||
| 1 | 208651241 | PHILLIPS SCREW M5 X 12 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 7 | 270000141 | Clip | 7 |
| 7 | 390402400 | Pop Rivet 3/16" | 7 |
| 503175400 | Hardened Washer | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 709400028 | Steering Clamp | ||
| 205353046 | Screw M5 x 30 | ||
| 293800061 | Loctite BLACK/MAX Gel Tube, 20 g | ||
| 1 | 707000087 | HOLDER CAP | 1 |
| 707000088 | Rubber Cap | ||
| 707000096 | CHOKE CABLE | ||
| 211100030 | NUT-HEXAGONAL HI-LEX | ||
| 1 | 707000067 | D SHAPE WASHER | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 707000089 | BUTTON | 1 |
| 205030487 | Socket Head Screw M3x0.5 | ||
| 1 | 293300075 | O-RING | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 705000183 | Hand Protector 7423/7424 (XT-Yellow/Jaune). | ||
| 709400084 | RH Support 7423/7424 (XT-Yellow/Jaune). | ||
| 709400085 | LH Support 7423/7424 (XT-Yellow/Jaune). | ||
| 4 | 207684544 | Hex. Flange Screw M8 X 45 7423/7424 (XT-Yellow/Jaune). | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 7423/7424 (XT-Yellow/Jaune). | 4 |
| 4 | 211000123 | Phillips Screw M6 X 20 7423/7424 (XT-Yellow/Jaune). | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 7423/7424 (XT-Yellow/Jaune). | 4 |
| 715000017 | U Bracket 7423/7424 (XT-Yellow/Jaune). | ||
| 2 | 503189276 | Washer | 2 |
