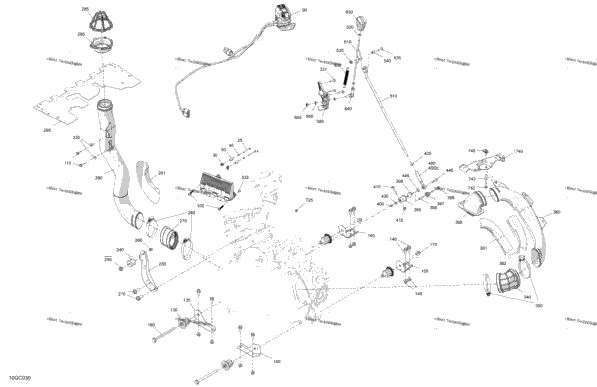

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207144044 | Hex. Cap Screw | 2 |
| 2 | 250100143 | Extruded Panel Nut M4 X 0.7 | 2 |
| 2 | 234040600 | Flat Washer 4 mm | 2 |
| 2 | 293900117 | Bushing | 2 |
| 1 | 707002687 | Throttle Handle | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 4 | 707001169 | Vibration Damper | 4 |
| 1 | 707001407 | LH Front Engine Bracket | 1 |
| 1 | 707001408 | RH Front Engine Bracket | 1 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 4 | 207682046 | Hex. Flange Screw M8 X 20 | 4 |
| 1 | 707001409 | LH Rear Engine Bracket | 1 |
| 1 | 707001410 | RH Rear Engine Bracket | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 707001411 | Upper Engine Bracket | 1 |
| 1 | 707000949 | Rubber Isolator | 1 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 707002585 | Flexibale Adaptor | 1 |
| 2 | 293650091 | Norma Clamp | 2 |
| 1 | 715003483 | CVT Filter | 1 |
| 1 | 707003215 | Filter Support | 1 |
| 1 | 707002289 | CVT Air Inlet | 1 |
| 1 | 707001638 | Heat Shield | 1 |
| 1 | 707001124 | Upper Water Deflector | 1 |
| 2 | 250000949 | Screw PT K60 X 30 | 2 |
| 3 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 3 |
| 1 | 293900128 | Bushing | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 707001425 | CVT Air Outlet Adaptor | 1 |
| 1 | 707001413 | CVT Air Outlet | 1 |
| 1 | 707001639 | Heat Shield | 1 |
| 1 | 707001641 | Heat Shield | 1 |
| 1 | 706600400 | CVT Cooling Duct Out | 1 |
| 1 | 707000503 | Lever | 1 |
| 1 | 707000507 | Pivot Plate | 1 |
| 1 | 707000310 | Spring | 1 |
| 1 | 293900079 | Bushing | 1 |
| 1 | 207664044 | Hex. Flange Screw M6 X 40 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 250100144 | Hex. Nut M8, LH Threads | 1 |
| 1 | 250000669 | Socket Head Screw M8 X 16 | 1 |
| 1 | 293900028 | Bushing | 1 |
| 1 | 707000966 | Ball Joint Ass'y Includes 490 to 490c | 1 |
| 1 | 232180600 | Hex. Jam Nut M8 | 1 |
| 1 | 707002382 | Shifter Rod | 1 |
| 2 | 232180600 | Hex. Jam Nut M8 | 2 |
| 1 | 233161414 | Hex. Flange Nut M6 | 1 |
| 1 | 250000446 | Torx Screw M6 X 20, Scotch Grip | 1 |
| 1 | 293900019 | Bushing | 1 |
| 1 | 707003054 | Lever Support | 1 |
| 1 | 707000577 | Spring | 1 |
| 1 | 707000840 | Shift Arm | 1 |
| 1 | 707003211 | Lever Trim | 1 |
| 1 | 707001959 | RH Ball Joint | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 293650100 | Oetiker Clamp | 1 |
| 1 | 707001262 | Air Outlet Support | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 503195447 | Protector Tube Not Shown | 1 |
