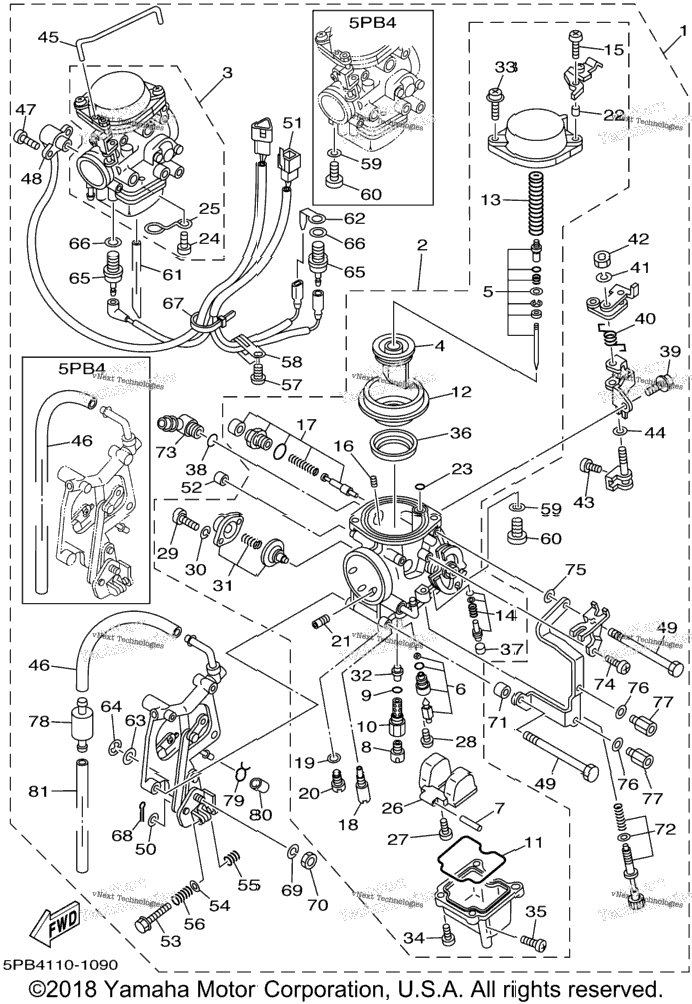

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 5EL-14900-20-00 | Carburetor Assy N 49 (5PB4) | ||
| 5EL-14900-30-00 | Carburetor Assy NC CA (5PB5) | ||
| 5EL-14901-20-00 | . Carburetor Assy 1 (1) REAR N 49 (5PB4) | ||
| 5EL-14901-30-00 | . Carburetor Assy 1 (1) REAR NC CA (5PB5) | ||
| 5EL-14902-20-00 | . Carburetor Assy 2 (2) FRONT N 49 (5PB4) | ||
| 5EL-14902-30-00 | . Carburetor Assy 2 (2) FRONT NC CA (5PB5) | ||
| 1 | 5EL-14112-00-00 | . . Valve, Throttle 1 | 1 |
| 1 | 5EL-1490J-20-00 | . . Needle Set | 1 |
| 1 | 5EL-14107-12-00 | . . Needle Valve Set | 1 |
| 1 | 127-14186-00-00 | . . .Pin, Float | 1 |
| 1 | 3G2-14231-22-00 | . . Jet, Main (#110) UR (1) REAR | 1 |
| 1 | 3G2-1423A-73-00 | . . .Jet, Main (#112.5) UR (2) FRONT | 1 |
| 1 | 583-14561-00-00 | . . .O-Ring | 1 |
| 1 | 5EL-14261-00-00 | . . Holder | 1 |
| 1 | 5DM-14561-00-00 | . . .O-Ring | 1 |
| 1 | 5EL-24411-00-00 | . . Diaphragm | 1 |
| 1 | 4KM-14933-00-00 | . . Spring, Diaphragm | 1 |
| 1 | 4SV-14105-00-00 | . . Pilot Screw Set | 1 |
| 1 | 98502-05016-00 | . . Screw, Pan Head | 1 |
| 1 | 1HX-14231-29-00 | . . Jet, Main (#145) | 1 |
| 1 | 5EL-1410A-00-00 | . . Starter Set | 1 |
| 1 | 4KM-14142-17-00 | . . Jet, Pilot (#17.5) | 1 |
| 1 | 5EL-14918-00-00 | . . Ring | 1 |
| 1 | 3G2-1423A-59-00 | . . Jet, Main (#42.5) | 1 |
| 1 | 1HX-1423E-25-00 | . . Jet, Main (#63.8) | 1 |
| 1 | 4KM-14194-00-00 | . . .Ring (1) REAR | 1 |
| 1 | 354-14147-00-00 | . . .O-Ring | 1 |
| 1 | 98507-04012-00 | . . . Screw, Pan Head (2) FRONT | 1 |
| 1 | 5EL-14919-00-00 | . . Clip (2) FRONT | 1 |
| 1 | 5DM-14985-00-00 | . . .Float | 1 |
| 1 | 98507-04008-00 | . . Screw, Pan Head | 1 |
| 1 | 1FN-14565-00-00 | . . .Screw | 1 |
| 2 | 98507-04014-00 | . . .Screw, Pan Head | 2 |
| 2 | 92907-04100-00 | . . .Washer, Spring | 2 |
| 1 | 5EL-1490H-00-00 | . . .Diaphragm Set 5 | 1 |
| 1 | 5DM-14141-40-00 | . . Nozzle, Main | 1 |
| 1 | 4KM-14216-00-00 | . . Screw UR (1) REAR | 1 |
| 2 | 4KM-14216-00-00 | . . Screw UR (2) FRONT | 2 |
| 3 | 98507-04010-00 | . . Screw, Pan Head UR (2) FRONT | 3 |
| 4 | 98507-04010-00 | . . Screw, Pan Head UR (1) REAR | 4 |
| 1 | 12R-14191-00-00 | . . .Plug, Drain | 1 |
| 1 | 5EL-14561-00-00 | . . O-Ring | 1 |
| 1 | 3F9-14118-00-00 | . . .Cap | 1 |
| 2 | 3LN-1416A-00-00 | . O-Ring | 2 |
| 2 | 4SV-24453-00-00 | . Screw | 2 |
| 2 | 5EL-14935-00-00 | . Spring | 2 |
| 2 | 92902-05100-00 | . Washer, Spring | 2 |
| 2 | 95302-05700-00 | . Nut, Hexagon | 2 |
| 2 | 11H-14991-00-00 | . Screw | 2 |
| 31H-14194-00-00 | . Ring | ||
| 5EL-14577-00-00 | . Rod | ||
| 1 | 4YW-14987-00-00 | . Hose N 49 (5PB4) | 1 |
| 1 | 5EL-14987-10-00 | . Hose NC CA (5PB5) | 1 |
| 2 | 4WM-14565-00-00 | . Screw | 2 |
| 1 | 5EL-85885-00-00 | . Throttle Sensor Assy | 1 |
| 5EL-14592-00-00 | . Screw | ||
| 4NK-14285-00-00 | . Washer | ||
| 5EL-81517-00-00 | . Wire, Sub Lead | ||
| 2 | 5EL-14987-00-00 | . Hose | 2 |
| 5EL-14991-00-00 | . Screw | ||
| 1 | 22F-14117-00-00 | . .Washer, Plug Screw | 1 |
| 1 | 5EL-14212-00-00 | . Spring, Pilot Adjusting | 1 |
| 3F7-14133-00-00 | . Spring, Throttle Stop | ||
| 98507-04006-00 | . .Screw, Pan Head | ||
| 90461-06087-00 | . Clamp | ||
| 1 | 127-14198-00-00 | . Gasket N 49 (5PB4), NC CA (5PB5) | 1 |
| 2 | 127-14198-00-00 | . Gasket N 49 (5PB4) | 2 |
| 1 | 3DM-14216-00-00 | . Screw N 49 (5PB4), NC CA (5PB5) | 1 |
| 2 | 3DM-14216-00-00 | . Screw N 49 (5PB4) | 2 |
| 2 | 5EL-14197-00-00 | . Pipe | 2 |
| 1 | 4DH-82103-00-00 | . ..Terminal 1 | 1 |
| 1 | 1A8-14953-00-00 | . .Washer | 1 |
| 1 | 812-14137-00-00 | . .Clip | 1 |
| 2 | 3BT-83790-00-00 | . Heater Assy (30W) | 2 |
| 2 | 5CY-14951-00-00 | . .Washer | 2 |
| 2 | 35H-14139-00-00 | . .Clip, Pipe | 2 |
| 4 | 91492-10008-00 | . Pin, Cotter | 4 |
| 1 | 92906-06100-00 | . Washer, Spring | 1 |
| 95382-06700-00 | . Nut | ||
| 5EL-14149-00-00 | . Pipe | ||
| 1 | 5EL-14103-00-00 | . Throttle Screw Set | 1 |
| 5EL-14251-00-00 | . Nipple | ||
| 1 | 98507-04010-00 | . Screw, Pan Head | 1 |
| 1 | 92902-06600-00 | . Washer, Plate | 1 |
| 1FK-14179-00-00 | . Washer, Starter Lever NC CA (5PB5) | ||
| 5EL-14592-10-00 | . Screw NC CA (5PB5) | ||
| 1 | 4X7-2149Y-00-00 | . Filter Assy NC CA (5PB5) | 1 |
| 1 | 8A7-14139-00-00 | . .Clip, Pipe NC CA (5PB5) | 1 |
| 1 | 895-14169-00-00 | . .Cap NC CA (5PB5) | 1 |
| 1 | 5EL-14987-20-00 | . Hose NC CA (5PB5) | 1 |
