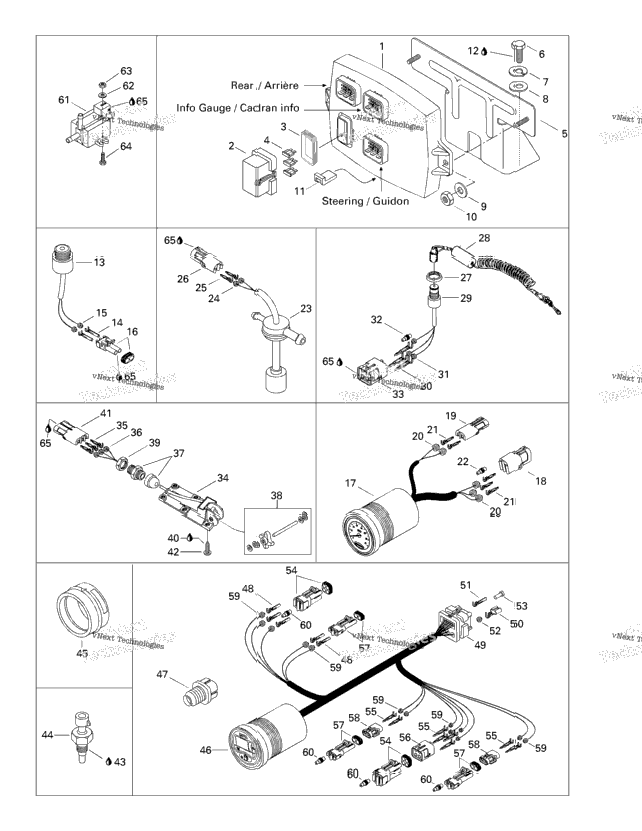

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000926 | Electronic Module Ass'y Includes 1 - 4. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 278001131 | Box Support Ass'y | ||
| 4 | 211000074 | Screw Plastite | 4 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 2 | 213200001 | Flat Washer 6 mm | 2 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278000978 | Buzzer Ass'y Includes 13 - 16. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 287000947 | Speedometer Includes 17 - 22. | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 278001187 | Oil Level Sensor Ass'y Includes 23 - 26. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 278001543 | Safety Lanyard | 1 |
| 278000977 | Safety Switch | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 278000849 | Speed Sensor Includes 34 - 39. | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 293710032 | LOCKING NUT | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 216351060 | SCREW-CTSK.OV.HD.PH.DIN.966A-A2 | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 293720047 | Gauge Support | ||
| 278001055 | LCD Info Gauge Includes 46 - 60. | ||
| 1 | 293720042 | GROMMET | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 278000993 | Male Connector, 26 Circuits | ||
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000995 | FEMALE TERMINAL | ||
| 278000996 | WIRE SEAL | ||
| 8 | 293000070 | SEALING CAP | 8 |
| 2 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 2 |
| 8 | 278000222 | Male Terminal | 8 |
| 3 | 278000220 | Male Connector, 2 Circuits | 3 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 13 | 278001065 | Wire Seal | 13 |
| 9 | 278000216 | Wire Seal | 9 |
| 2 | 270600005 | Solenoid Valve | 2 |
| 4 | 213200004 | Flat Washer 5 mm | 4 |
| 4 | 212000004 | Elastic Stop Nut M5 | 4 |
| 215051660 | SCREW-HEX.CAP DIN.933A2 | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
