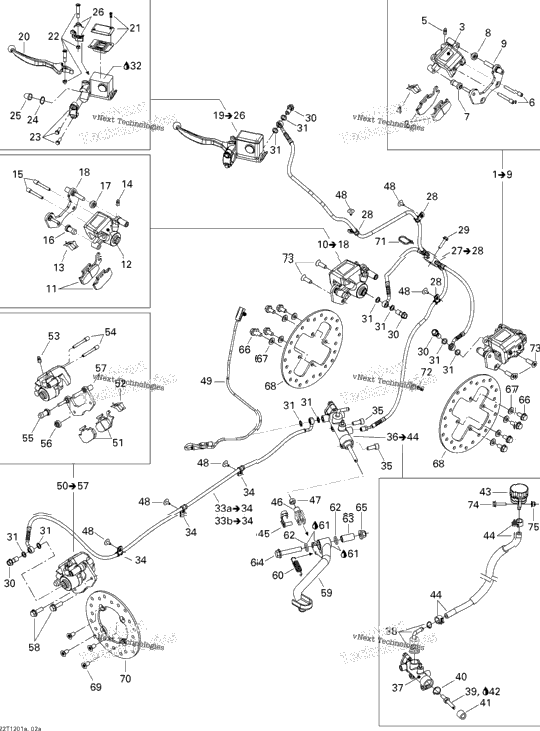

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600575 | RH Caliper Includes 1 to 9 | 1 |
| 1 | 705600349 | Brake Pad Kit | 1 |
| 1 | 705600078 | Piston Set | 1 |
| 1 | 705600079 | Spring | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705600082 | Compression Boot | 1 |
| 1 | 705600083 | Compression Boot | 1 |
| XXXX | Not Available As Spare Part - RH Caliper Support | ||
| 1 | 705600576 | LH Caliper Includes 10 to 18 | 1 |
| 1 | 705600350 | Brake Pad Kit | 1 |
| XXXX | Not Available As Spare Part - LH Caliper Support | ||
| 1 | 705600844 | Front Master Cylinder Includes 19 to 26 | 1 |
| 1 | 705600243 | Lever Arm | 1 |
| 1 | 705600084 | Cap Set | 1 |
| 1 | 705600246 | Brake Lever Bolt Kit | 1 |
| 705600087 | BRACKET KIT | ||
| 705600088 | CIRCLIP | ||
| 1 | 705600089 | COMPRESSION BOOT | 1 |
| 1 | 705600477 | PARKING KIT, BRAKE LEVER LOCK | 1 |
| 1 | 705600925 | Front Hose Includes 27 to 28 | 1 |
| 3 | 705600459 | Clamp | 3 |
| 1 | 210262080 | Hex. Forming Screw M6 X 20 | 1 |
| 4 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 4 |
| 10 | 705600310 | Copper Washer | 10 |
| 293600062 | BRAKE FLUID, GTLMA, DOT 4, 12 X 354 ML | ||
| 1 | 705600929 | Rear Hose Includes 33a to 34 | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705600459 | Clamp | 1 |
| 2 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 2 |
| 1 | 705600751 | Master Cylinder Includes 36 to 44 | 1 |
| 1 | 705600255 | Piston Set | 1 |
| 1 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR | 1 |
| XXXX | Not Available As Spare Part - Rod Ass'y | ||
| 705600068 | Circlip | ||
| 705600090 | Compression Boot | ||
| XXXX | Not Available As Spare Part - Grease | ||
| 1 | 705600182 | Oil Tank, Brake Fluid Reservoir | 1 |
| 1 | 705600754 | OIL HOUSING HOSE | 1 |
| 1 | 250400007 | Pin | 1 |
| 705600100 | Yoke | ||
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 1 | 390910000 | Pop Rivet 3/16” | 1 |
| 5 | 390910000 | Pop Rivet 3/16” | 5 |
| 1 | 705600798 | Brake Switch | 1 |
| 1 | 705600577 | Rear Caliper Includes 50 to 57 | 1 |
| 1 | 705600398 | LH Brake Pad Kit | 1 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 705600784 | BRAKE PEDAL, BLACK | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705600815 | Inner Spacer | 1 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 8 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 8 |
| 8 | 234281474 | Conical Spring Washer M8 | 8 |
| 2 | 705600603 | Disk Brake | 2 |
| 4 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 4 |
| 1 | 705600604 | Disk Brake | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 4 | 250000143 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
