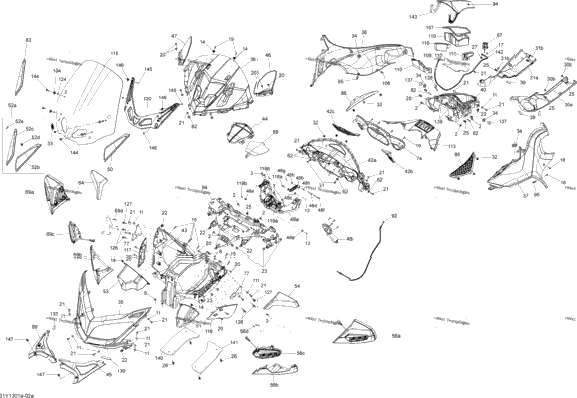

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 4 | 232862412 | Square Nut M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 3 | 250000565 | Hexalob Screw M4 X 10 | 3 |
| 1 | 250000079 | Panel Nut M5 X 0.8 | 1 |
| 1 | 250000130 | Torx Screw M5 X 20 | 1 |
| 2 | 250000287 | Flange Torx Screw K40 X 16 | 2 |
| 1 | 250000459 | Torx Screw, K50X16 | 1 |
| 6 | 250000487 | Torx Screw, Nylon Patch, M5 X 14 | 6 |
| 1 | 250000488 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000350 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250100113 | Panel Nut, M6 X 1.0 | 1 |
| 1 | 269501166 | Nut Housing Ass'y | 1 |
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 4 | 293730006 | Black, Dart | 4 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 705004631 | LH Tank Cover Ass'y Includes 30a to 30b | 1 |
| 2 | 293750044 | Tie Rap Mount | 2 |
| 1 | 705005950 | RH TANK COVER ASS'Y Includes 31a to 31b | 1 |
| 9 | 517302785 | Edge Clip | 9 |
| 1 | 704903339 | CAUTION DECAL, WINDSHIELD | 1 |
| 4 | 705000321 | Oval Washer | 4 |
| 1 | 705007273 | FRONT CONSOLE VIPER RED Red Model | 1 |
| 1 | 705007275 | Front Console Blue Blue Model | 1 |
| 705007274 | FRONT CONSOLE MAGNESIUM Magnesium Model | ||
| 1 | 705007339 | Yellow Front Console Yellow Model | 1 |
| 1 | 705006186 | Upper Console | 1 |
| 1 | 705006170 | LH UPPER PANEL, RED Red Model | 1 |
| 1 | 705006161 | LH UPPER PANEL, BLUE Blue Model | 1 |
| 705006165 | LH UPPER PANEL, MAGNESIUM Magnesium Model | ||
| 1 | 705006329 | YELLOW LH UPPER PANEL Yellow Model | 1 |
| 705006169 | RH UPPER PANEL, RED Red Model | ||
| 1 | 705006163 | RH UPPER PANEL, BLUE Blue Model | 1 |
| 1 | 705006166 | RH UPPER PANEL, MAGNESIUM Magnesium Model | 1 |
| 705006320 | YELLOW RH UPPER PANEL Yellow Model | ||
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 705002726 | Glove Box | 1 |
| 1 | 705006655 | DASHBOARD ASS'Y Includes 42a to 42c | 1 |
| 1 | 705003199 | LH SPEAKER GRILL | 1 |
| 1 | 705003200 | RH SPEAKER GRILL | 1 |
| 1 | 705002743 | Console Support | 1 |
| 1 | 705002746 | Guide Chart Support | 1 |
| 1 | 705002839 | Service Center Access Panel LH | 1 |
| 1 | 705002841 | LH Upper Air Deflector | 1 |
| 1 | 705002842 | RH Upper Air Deflector | 1 |
| 1 | 705007069 | Windshield Motor Support Ass'y Includes 48a to 48i | 1 |
| 2 | 219800197 | Rear Arm Please refer to TST 133499 For Arm Repair Kit | 2 |
| 4 | 705003267 | Sleeve | 4 |
| NLA | Inner Sleeve Order 219800321 | ||
| 2 | 705003267 | Sleeve | 2 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 232561200 | Brass Elastic Stop Nut M6 | 2 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 278002579 | Windshield Motor | 1 |
| 1 | 705007411 | Black Deep, LH Windshield Cap RT-STD | 1 |
| 1 | 705003092 | LH SPEAKER HOUSING | 1 |
| 219400191 | CHROME WINDSHIELD CAP KIT RT-S | ||
| 705003973 | LH WINDSHIELD CAP, CHROME RT-S | ||
| 705003974 | RH WINDSHIELD CAP, CHROME RT-S | ||
| 2 | 250000079 | Panel Nut M5 X 0.8 RT-S | 2 |
| 2 | 250000455 | Torx Screw M5 X 25 RT-S | 2 |
| 1 | 705003093 | RH Speaker Housing | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705007403 | LH Upper Mirror Shell, Viper Red Red Model | 1 |
| 1 | 705007407 | LH Upper Mirror Shell, Blue Blue Model | 1 |
| 1 | 705007401 | LH Upper Mirror Shell, Magnesium Magnesium Model | 1 |
| 1 | 705007409 | TRIM_REAR VIEW MIRROR UP L B-349 Yellow Model | 1 |
| 705006966 | LH MIRROR ASS'Y Includes 56a to 56d | ||
| 1 | 705003148 | LH Lower Mirror Shell | 1 |
| 1 | 710001510 | LH Front Flasher Unit | 1 |
| 6 | 250000610 | Flange Screw K30 X 12 | 6 |
| 9 | 234062410 | Flat Washer 6 mm | 9 |
| 705007404 | TRIM_REAR VIEW MIRROR UP R B-176 Red Model | ||
| 1 | 705007408 | TRIM_REAR VIEW MIRROR UP R B-308 Blue Model | 1 |
| 1 | 705007402 | TRIM_REAR VIEW MIRROR UP R B-321 Magnesium Model | 1 |
| 705007410 | TRIM_REAR VIEW MIRROR UP R B-349 Yellow Model | ||
| 705006967 | RH MIRROR ASS'Y Includes 69a to 69d | ||
| 1 | 705003159 | RH Lower Mirror Shell | 1 |
| 1 | 710001511 | RH Front Flasher Unit | 1 |
| 1 | 705003163 | Dashboard Bezel | 1 |
| 2 | 705003779 | Console Support Plate | 2 |
| 2 | 705003295 | Retainer Pin | 2 |
| 1 | 705007412 | Black Deep, RH Windshield Cap RT-STD | 1 |
| 1 | 705003384 | Console Cross-Support | 1 |
| 1 | 705003385 | LH Upper Side Panel Grille | 1 |
| 1 | 705003386 | RH Upper Side Panel Grille | 1 |
| 1 | 705006886 | Latch | 1 |
| 1 | 705003472 | Guide Chart | 1 |
| 1 | 705005903 | Service Center Access Panel RH | 1 |
| 1 | 517304413 | Hood Cable | 1 |
| 1 | 705006970 | GLOVE BOX COVER, VIPER RED Red Model | 1 |
| 1 | 705006972 | GLOVE BOX COVER, BLUE Blue Model | 1 |
| 1 | 705006971 | GLOVE BOX COVER, MAGNESIUM Magnesium Model | 1 |
| 1 | 705006360 | YELLOW GLOVE BOX COVER Yellow Model | 1 |
| 2 | 705003746 | Angled Knob | 2 |
| 4 | 705003756 | Windshield Grommet | 4 |
| 1 | 705003842 | Knob | 1 |
| 219800143 | NEOPRENE SEAL, METER | ||
| 1 | 705004424 | Heat Shield | 1 |
| 1 | 219800172 | OUTER FRONT INSULATION FOAM KIT | 1 |
| 1 | 705004461 | Center Panel | 1 |
| 705004740 | Windshield | ||
| 1 | 705004924 | LH Lower Air Deflector | 1 |
| 1 | 705004925 | RH Lower Air Deflector | 1 |
| 2 | 705005973 | Retainer Pin Includes 118a to 118b | 2 |
| 2 | 250000565 | Hexalob Screw M4 X 10 | 2 |
| 1 | 705005974 | RETAINER PIN Includes 119a to 119b | 1 |
| 1 | 250000565 | Hexalob Screw M4 X 10 | 1 |
| 1 | 705005405 | WINDSHIELD SUPPORT | 1 |
| 4 | 705005756 | Sleeve | 4 |
| 4 | 705004322 | Spherical Head Stud Before April 11, 2013 | 4 |
| 705006659 | STUD_BALL M6 X 20 April 11 And Up, 2013 | ||
| 2 | 705004323 | Spherical Head Stud Before April 11, 2013 | 2 |
| 705006660 | FLAT HEAD STUD M6 April 11 And Up, 2013 | ||
| 2 | 705006824 | Néoprene Pad | 2 |
| 2 | 705007085 | Rubber Washer | 2 |
| 2 | 705003748 | Glove Box Spring | 2 |
| 2 | 705600272 | Circlip | 2 |
| 1 | 707800341 | RH Acoustic Foam | 1 |
| 1 | 707800349 | LH Acoustic Foam | 1 |
| 705003625 | GLOVE BOX CABLE | ||
| 1 | 705006111 | GLOVE BOX DOOR ASS'Y | 1 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 | 4 |
| 2 | 250000455 | Torx Screw M5 X 25 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 705005666 | Windshield Rubber Bumper | 2 |
