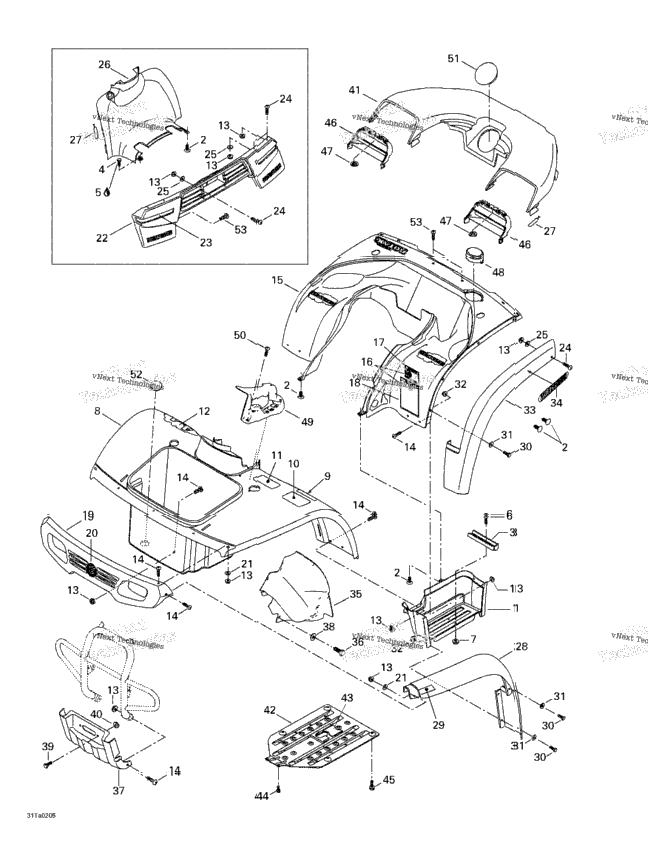

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705000017 | RH Footboard, Black | ||
| 1 | 705000018 | LH FOOTBOARD, BLACK | 1 |
| 7 | 293730011 | Black, Dart | 7 |
| 705000279 | Foot Pegs | ||
| 1 | 207661244 | Hex. Flange Screw M6 X 12 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 211000123 | Phillips Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 703500137 | Front Fender, Yellow Includes 8 - 11. | ||
| 703500136 | Front Fender Kit (Red) | ||
| 703500138 | Front Fender Kit | ||
| 704900034 | Warning Label Includes 9 - 10. (English) | ||
| XXXX | Not Available As Spare Part - Warning Label (Injuries/Death) (English) | ||
| 704900002 | Warning Decal, Death And Injuries | ||
| XXXX | Not Available As Spare Part - Warning Label (Under 16) (English) | ||
| 1 | 704900012 | Warning Decal, Under 16 Years Old | 1 |
| 1 | 704900007 | Caution Decal, Transmission Selector | 1 |
| 704900008 | Caution Decal, Transmission Selector | ||
| 704900028 | RH Rear Label (Red) | ||
| 704900068 | Front Label RH | ||
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 24 |
| 16 | 211000123 | Phillips Screw M6 X 20 | 16 |
| 703500113 | Rear Fender Kit (Red) (English) Includes 15 - 18. | ||
| 703500114 | Rear Fender Kit (Green) (English) | ||
| 703500112 | Rear Fender, Yellow | ||
| 704900116 | Warning Label Ass'y Includes 16 - 17. | ||
| 704900006 | Warning Decal, Passenger, French | ||
| 1 | 704900005 | WARNING DECAL, PASSENGER | 1 |
| 704900120 | Warning Label, Tire Pressure (Tire Pressure) (French) | ||
| XXXX | Not Available As Spare Part - Warning Label (Tire Pressure) (English) | ||
| 703500011 | Front Fascia Ass'y, black Includes 19 - 20. | ||
| 1 | 704900130 | Bombardier Logo 68 mm | 1 |
| 4 | 224060201 | Flat Washer | 4 |
| 1 | 703500012 | REAR FASCIA ASS'Y, BLACK Includes 22 - 23. | 1 |
| 704900085 | RH Rear Reflector | ||
| 704900086 | LH Rear Reflector | ||
| 8 | 211000123 | Phillips Screw M6 X 20 | 8 |
| 6 | 224060201 | Flat Washer | 6 |
| 705000010 | Tank Cover | ||
| 16 | 570023800 | Windshield Latch | 16 |
| 703500014 | LH Front Mudguard Kit Includes 28 - 29. | ||
| 703500015 | RH Front Mudguard Kit | ||
| 1 | 705000083 | LH FRONT REFLECTOR | 1 |
| 705000026 | RH FRONT REFLECTOR | ||
| 28 | 207162044 | Hex. Screw M6 X 20 | 28 |
| 28 | 224060201 | Flat Washer | 28 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 28 |
| 703500016 | LH Rear Mudguard Includes 33 - 34. | ||
| 703500017 | RH Rear Mudguard | ||
| 704900026 | Bombardier label | ||
| 1 | 705000133 | LH TANK PROTECTOR | 1 |
| 1 | 705000134 | RH TANK PROTECTOR | 1 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 705000135 | Front Protection Plate, black | ||
| 4 | 224061201 | Flat Washer | 4 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 705000192 | Fender Cover (Red) | ||
| 705000193 | Fender cover | ||
| 705000179 | Fender Cover, Yellow | ||
| 705000196 | Plate Ass'y Includes 42 - 43. | ||
| 293830084 | Rubber Protector | ||
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 705000180 | LH Grill, Black | ||
| 705000181 | RH Grill, Black | ||
| 6 | 250100000 | PUSH NUT | 6 |
| 1 | 705000132 | COVER, BLACK | 1 |
| 705000081 | Lever Indicator | ||
| 3 | 414745900 | Tuflock Phillips Plastic Screw | 3 |
| 1 | 705000207 | CAP | 1 |
| 570041600 | Rubber Cover | ||
| 732600009 | PAN HEAD FORMING SCREW M6 X 18 |
